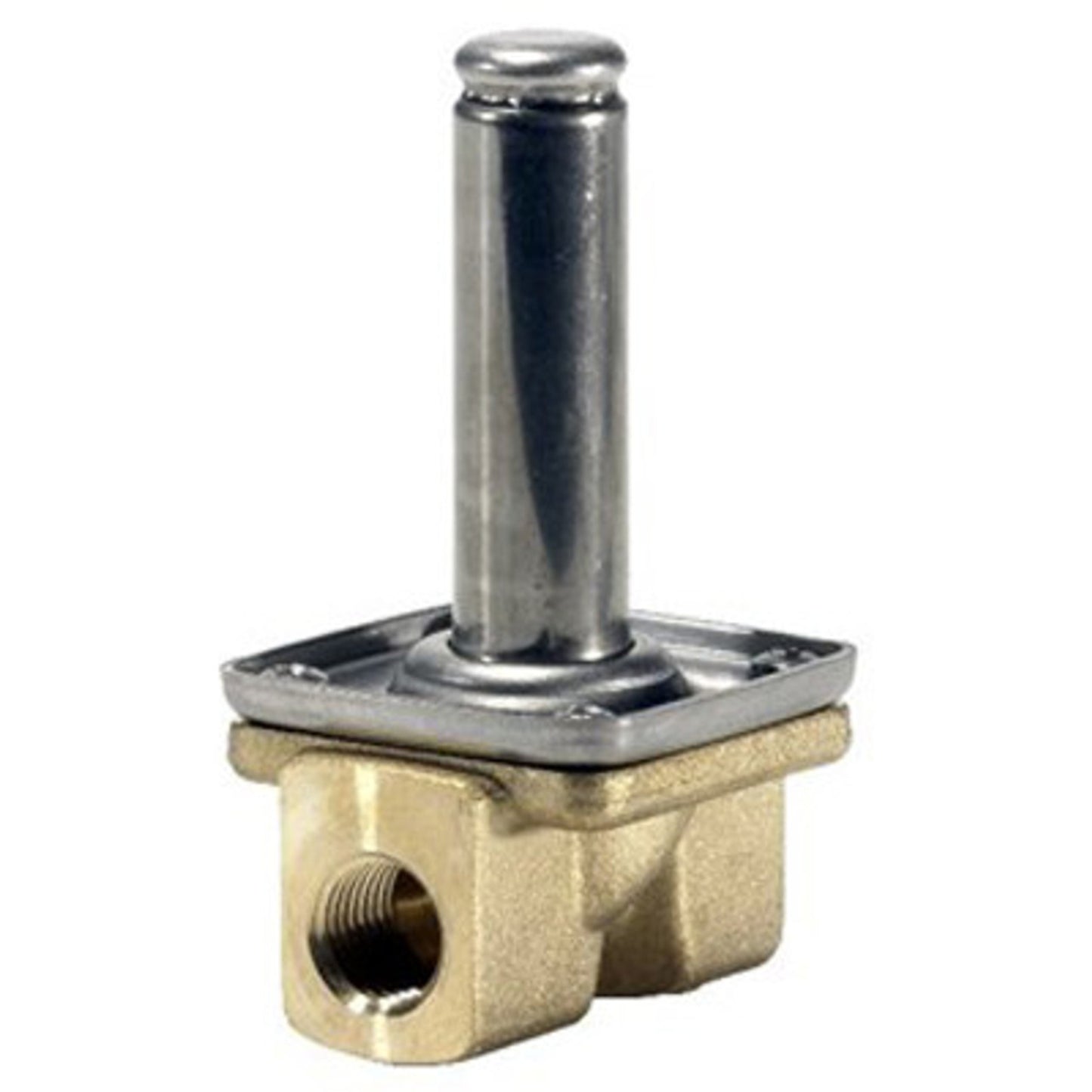

Danfoss 032U6517 No Coil EV220B Type 2-Way Normally Closed Brass Solenoid - 3/8 NPT

Product Details

Danfoss 032U6517 No Coil EV220B Type 2-Way Normally Closed Brass Solenoid - 3/8 NPT

Brass body solenoid valve with two-way function and single-flow direction. NPT 3/8".

NC Two-Way Solenoid Valve Without Coil - 350 PSI
The Danfoss 032U6517 solenoid valve allows you to operate a variety of water, oil, and compressed air services at your car wash. This brass two-way solenoid is a normally closed valve with single flow direction and 3/8" NPT connection.

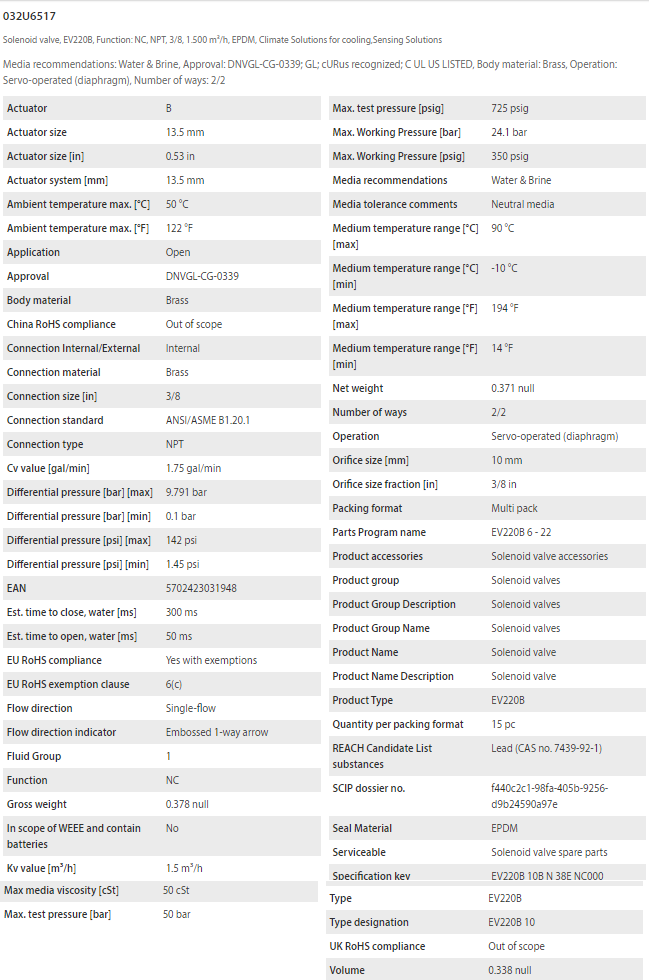

Specifications:

Function: Normally closed
Number of Ways: 2/2-way solenoid
Direction: Single flow
Temperature Range: 14-194° Fahrenheit
Connection: 3/8" NPT
Maximum Test Pressure: 350 PSIG
Maximum Differential Pressure: 142 PSI
Minimum Differential Pressure: 1.45 PSI
Type: EV220B
Orifice Size: 3/8" (10 mm)
Actuator: B
Actuator Size: .53" (13.5 mm)
Seal Material: EPDM - Recommended for hot water and drinking water applications
Operation: Servo-operated diaphragm
Cv Value: 1.75 gallon/minute
Kv Value: 1.5 m3/h
Maximum Media Viscosity: 50 cSt
Fluid Group: I
EAN:

57024230319488
