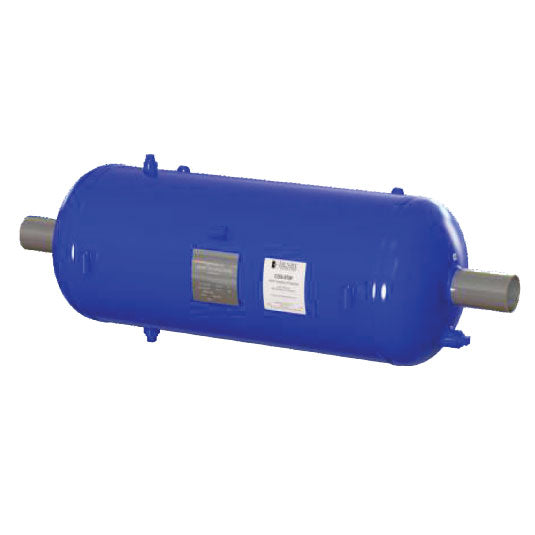

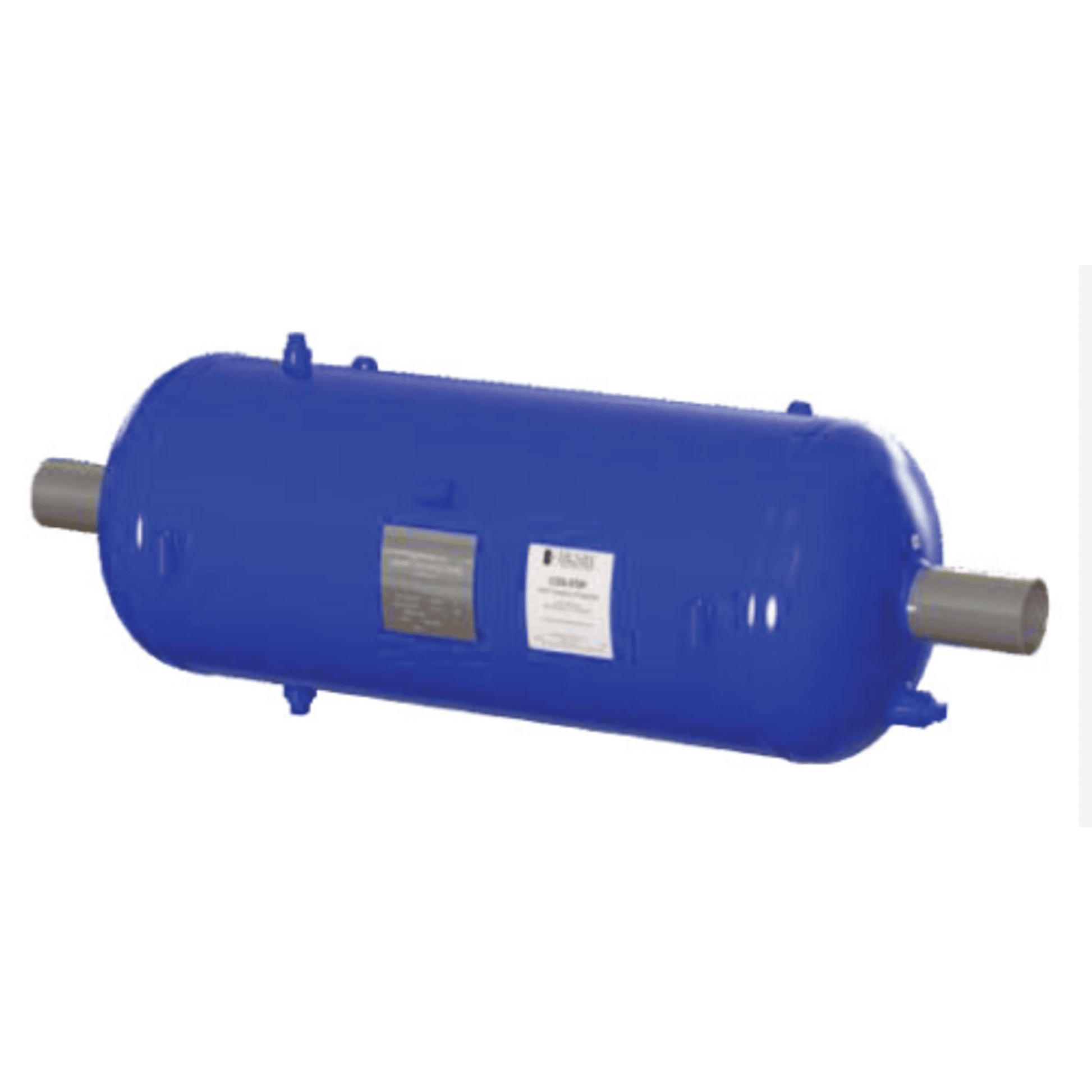

COS-205 - Henry - 4 BW - 102mm - Coalescing Oil Separator

The function of a Coalescing Oil Separator is to remove oil from the
discharge gas and return it to the Compressor either directly or
through an Oil Management System.

Applications
The Coalescing Oil Separators are typically used on larger industrial
refrigeration systems and rely on a coalescing element to remove oil from the
hot gas. Once the filtering element becomes saturated with oil it will begin
accumulating within the vessel. An optional float valve can be attached to
control oil flow to an Oil Management System or straight to a compressor
crankcase.

Henry Technologies’ Coalescing Oil Separators are suitable for use with
Ammonia, HCFC and HFC refrigerants, and their associated oils, as well as
other industrial fluids non-corrosive to steel.

Main Features
-ODS and Butt Weld refrigerant connections
-NPT oil connections
-All welded steel design
-Designed specifically for reciprocating refrigeration compressors
-Five models available covering entire range of single stage and booster
compressors
-Oil float valve assembly and shut off valves available as optional
accessories.
-Can be mounted horizontal or vertical
