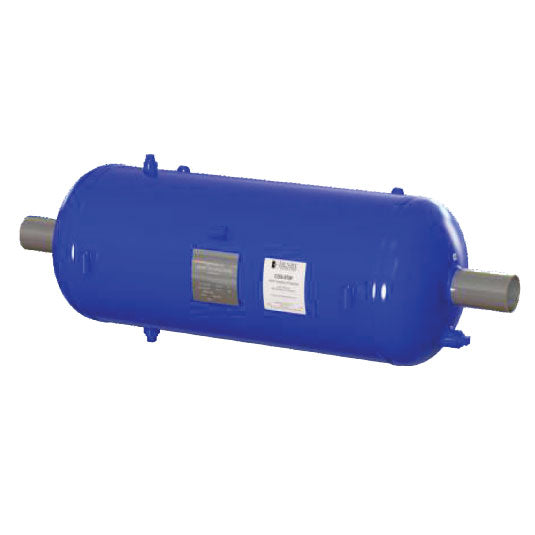

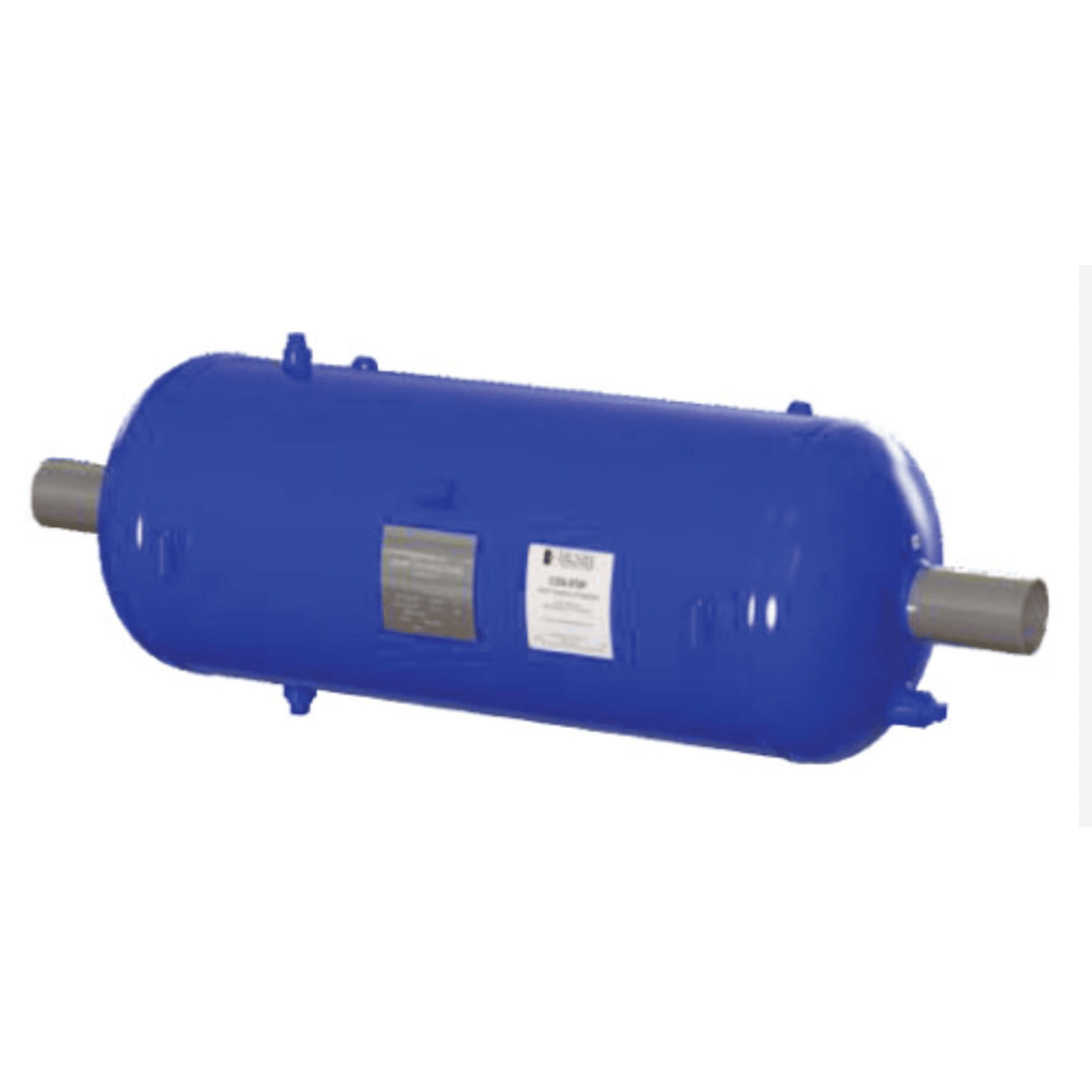

COS-070 - Henry - 2-1/2" BW - 64mm - Coalescing Oil Separator

Henry Technologies Coalescing All-Welded Oil Separators

The Coalescing Oil Separators are typically used on larger industrial refrigeration systems and rely on a coalescing element to remove oil from the hot gas. Once the filtering element becomes saturated with oil it will begin accumulating within the vessel. An optional float valve can be attached to control oil flow to an Oil Management System or straight to a compressor crankcase. Henry Technologies’ Coalescing Oil Separators are suitable for use with Ammonia, HCFC and HFC refrigerants, and their associated oils, as well as other industrial fluids non-corrosive to steel.

Features:
- ODS and Butt Weld refrigerant connections
- NPT oil connections
- All welded steel design
- Designed specifically for reciprocating refrigeration compressors
- Five models available covering entire range of single stage and booster compressors
- Oil float valve assembly and shut off valves available as optional accessories.
- Can be mounted horizontal or vertical
