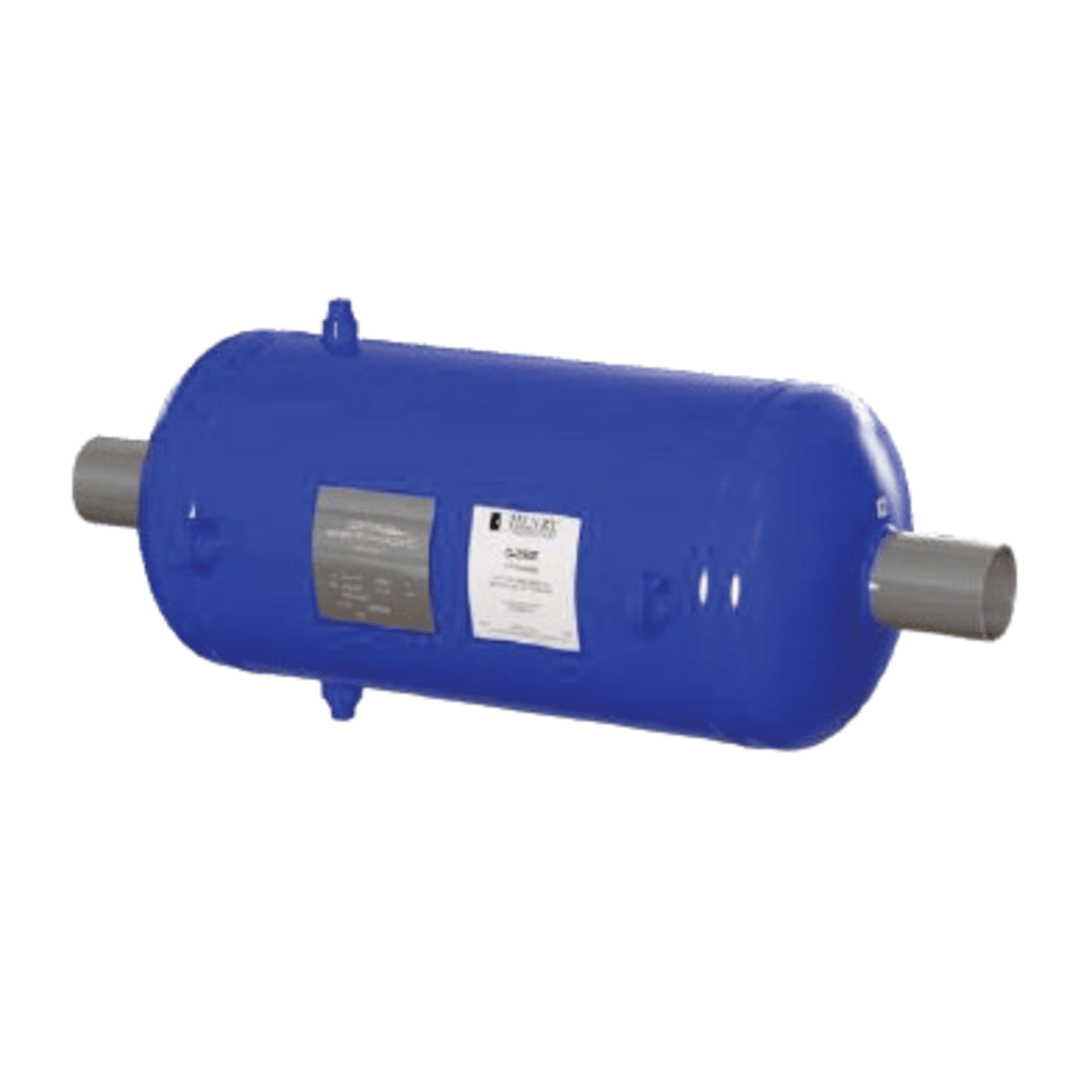

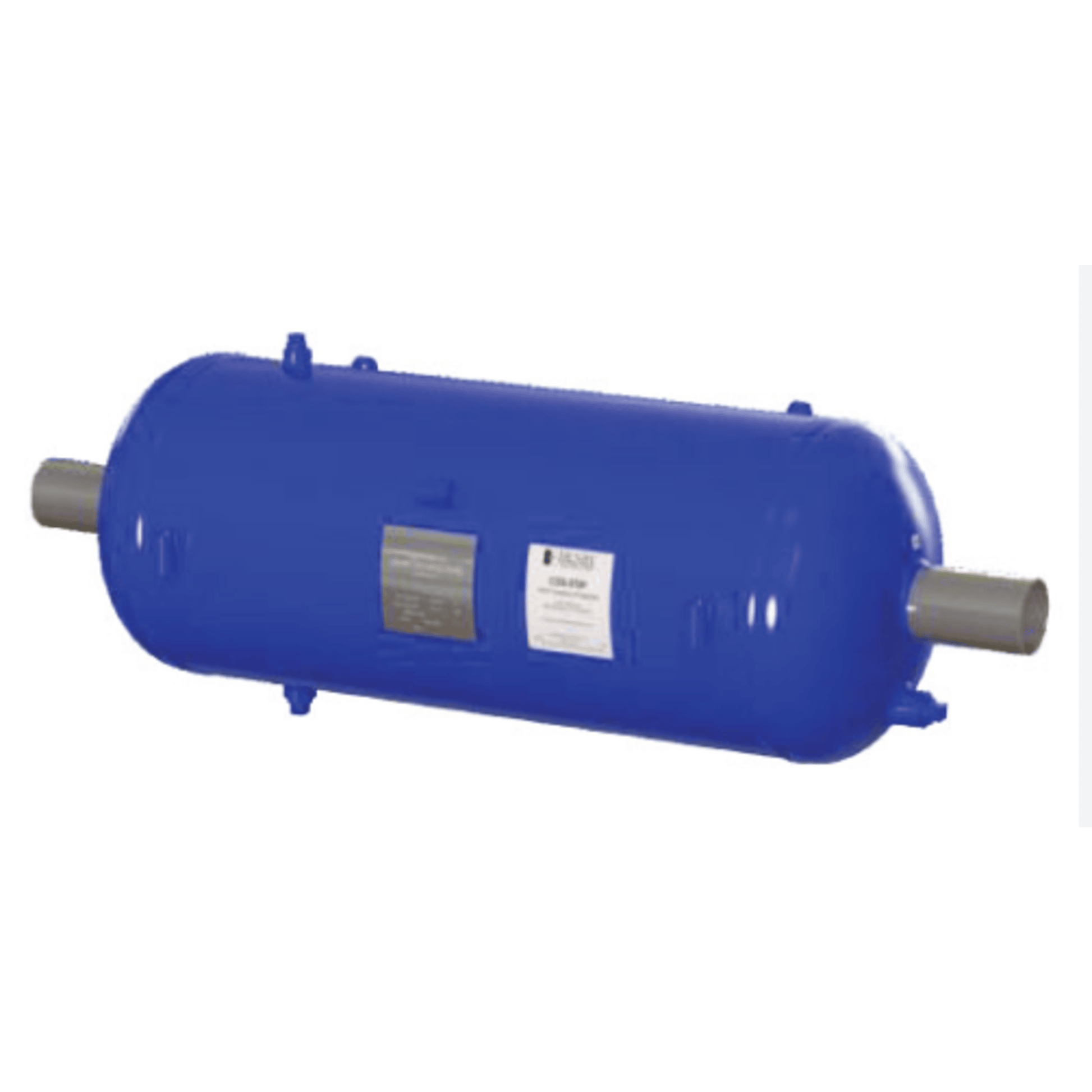

COS-030 - Henry - 2 BW - 51mm - Coalescing All Welded ASME Oil Separator

The Henry COS-030 is a 2" BW (Butt Weld), 51mm Coalescing All-Welded ASME Oil Separator, designed for high-efficiency oil separation in industrial refrigeration and HVAC systems.

Key Specifications & Features

• Model: COS-030
• Connection Size: 2" BW (Butt Weld), 51mm
• Construction: All-welded steel body
• Certification: ASME Section VIII compliant
• Function:
  • Removes oil from discharge gas using a coalescing element
  • Returns oil to the compressor either directly or via an oil management system
• Application: Ideal for large industrial refrigeration systems
• Weight: Approximately 60 lbs

Benefits

• Enhances system efficiency by minimizing oil circulation
• Protects compressors by maintaining proper oil levels
• Durable and reliable for high-pressure environments

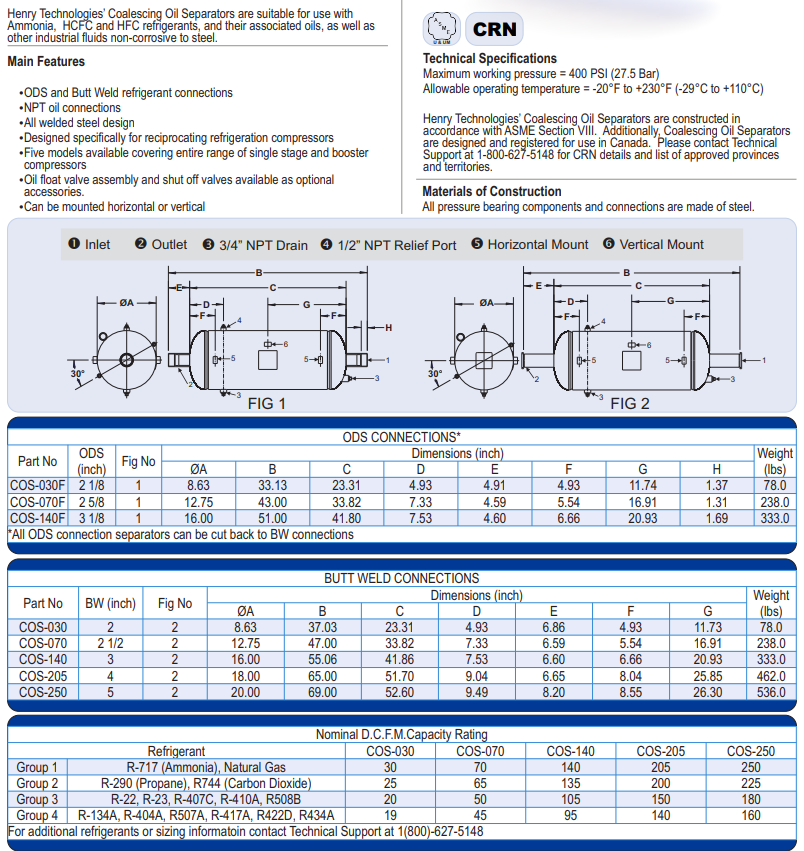

Main Features
-ODS and Butt Weld refrigerant connections
-NPT oil connections
-All welded steel design
-Designed specifically for reciprocating refrigeration compressors
-Five models available covering entire range of single stage and booster
compressors
-Oil float valve assembly and shut off valves available as optional
accessories.
-Can be mounted horizontal or vertical
