CA649 - Crown - IGNITER/I-144 W/50 In.B-DIM (EA)

⚡ CA649 Crown Igniter – I-144 W/50 In. B-DIM

Extended-Reach Ignition for Deep-Set Burner Assemblies

The Crown CA649 Igniter is a precision-engineered replacement for the Auburn I-144, featuring a 50-inch B-dimension for extended reach into combustion chambers. Designed for oil-fired burners and industrial heating systems, this igniter ensures reliable spark performance in hard-to-access installations.

✅ Key Features:

• Extended 50" B-Dimension: Ideal for deep-set burner configurations requiring long-reach ignition.
• Direct Replacement: Fully compatible with Auburn I-144 models, ensuring easy retrofit and installation.
• High-Voltage Spark: Delivers consistent ignition for oil burners, boilers, and furnaces.
• Durable Build: Constructed with high-temperature ceramic insulation and corrosion-resistant electrodes.
• OEM-Grade Quality: Manufactured to meet or exceed original equipment specifications.

📊 Technical Specs:

• Product Code: CA649
• Replaces: Auburn I-144

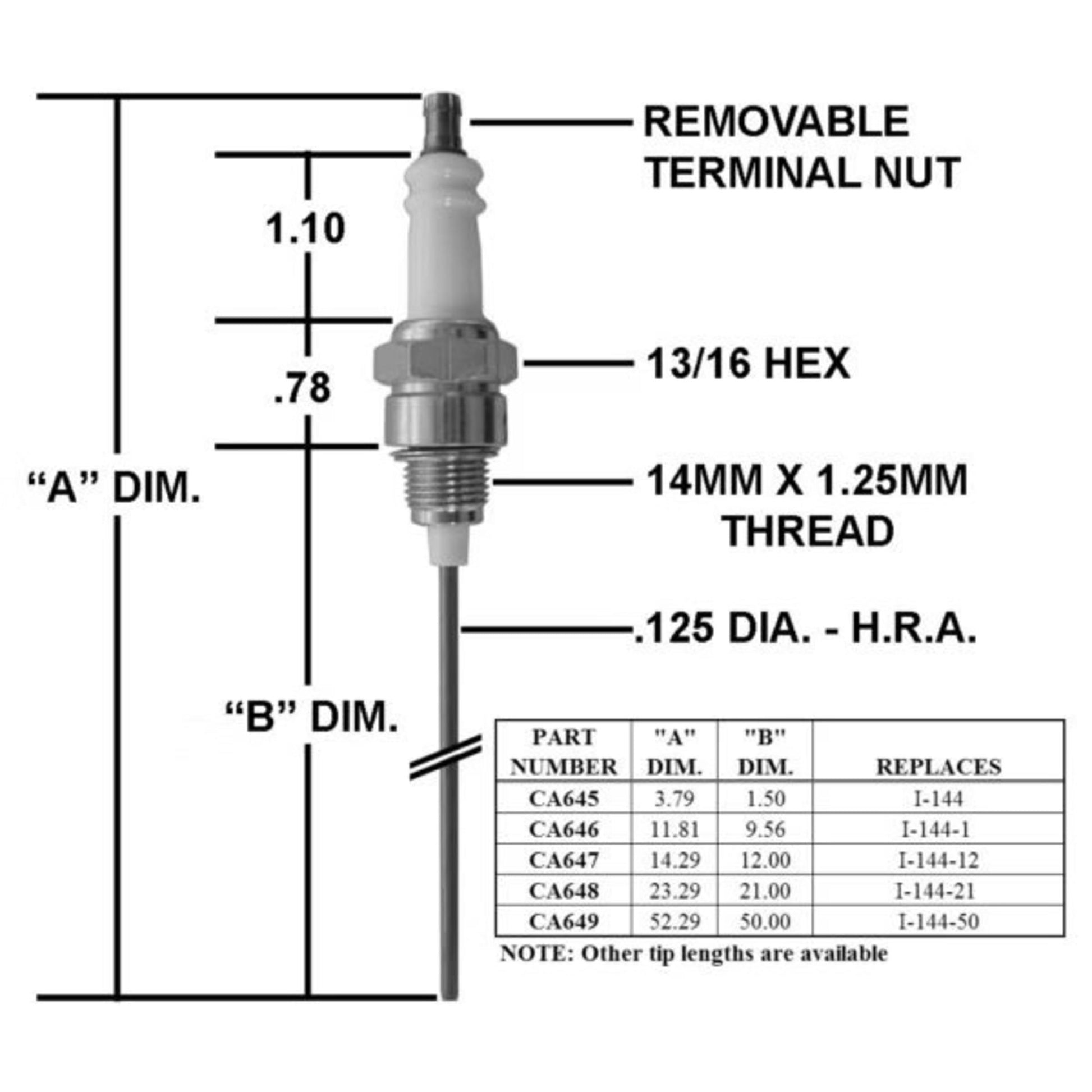

• B-Dimension: 50 inches (distance from mounting surface to spark tip)
• Material: Ceramic insulator with nickel or stainless steel electrodes
• Voltage Rating: Typically 10,000V+ (verify with system specs)
• Mounting: Standard bracket or flange (varies by application)

🛠 Ideal For:

• Industrial and commercial oil burners
• Boiler and furnace maintenance
• HVAC service and repair
• Retrofit and OEM burner systems

💡 Pro Tip:

Always confirm the B-dimension and mounting configuration before installation. Use dielectric grease on terminals to enhance conductivity and prevent corrosion.
