Beckett CL202ULHT, Pump-230V Condensate High Temp Low Pro 6PK

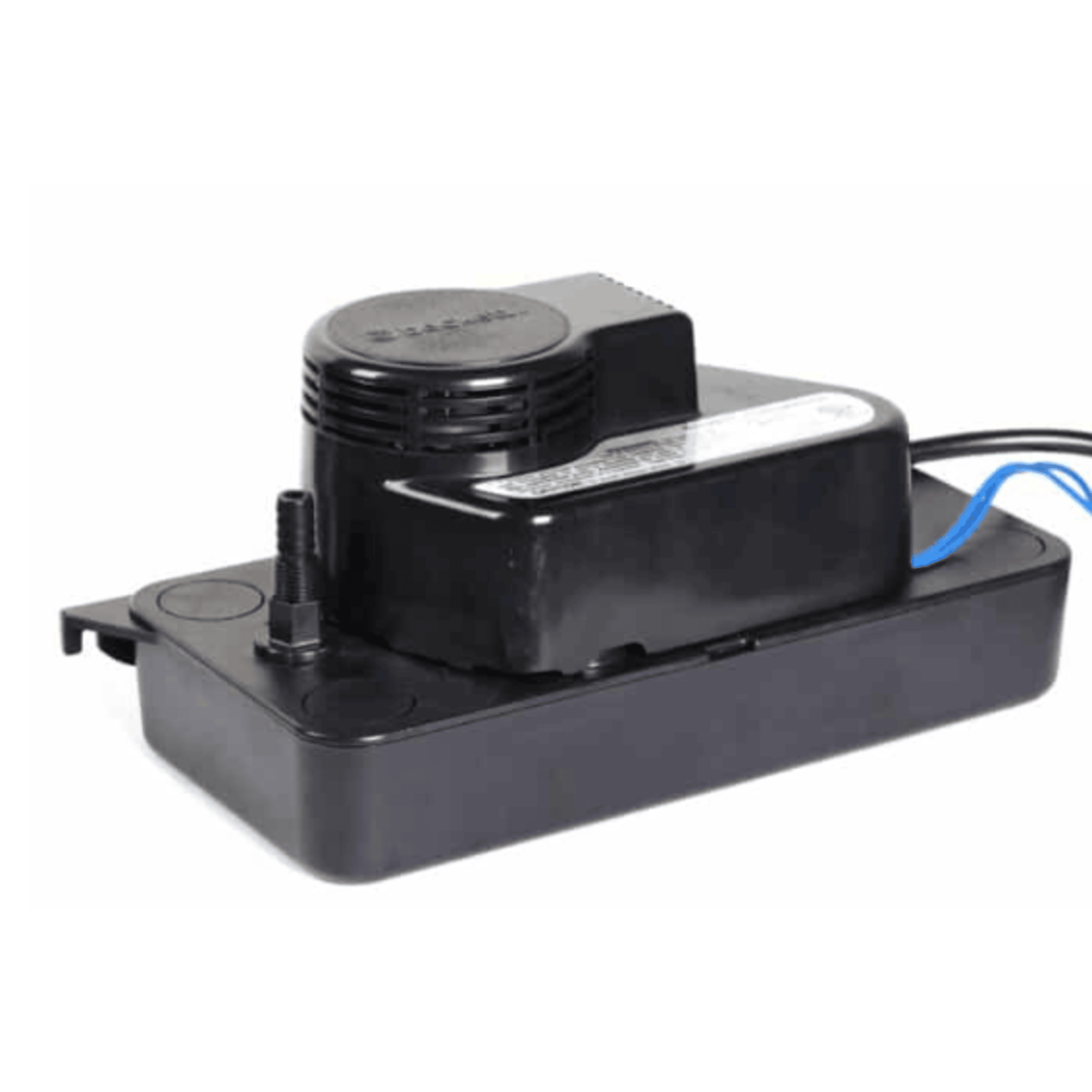

Beckett CL202ULHT Low Profile High Temp Condensate Pump

The Beckett CL202ULHT is a robust, high-temperature condensate pump designed for efficient condensate removal in space-constrained applications. This pump operates at 230V and features a maximum lift of 20 feet, making it ideal for various HVAC systems, including air conditioners, dehumidifiers, high-efficiency furnaces, boilers, and other equipment.

Key Features:

• High Temperature Handling: Capable of handling condensate up to 190°F, suitable for high-efficiency systems and applications with high-acidity condensation
• Quiet Operation: Designed to operate quietly, minimizing noise in residential and commercial settings.
• Built-in Safety Switch: Includes a safety switch to prevent overflow and potential damage
• Replaceable Check Valve: Features a replaceable check valve for easy maintenance.
• Pre-wired Terminal Block: Comes with a pre-wired terminal block for straightforward installation.
• Compact Design: Low profile design with dimensions of 11.3" (L) x 4.9" (W) x 5" (H), making it easy to fit in tight spaces
• Flow Rate: Offers a flow rate of 145 GPH at 1 foot, ensuring efficient condensate removal
• Tank Capacity: Equipped with a 0.85 qt. tank to handle significant condensate volumes
• Discharge Size: 3/8" ID tubing discharge for compatibility with standard condensate lines

Applications:

• HVAC Systems: Ideal for removing condensation from air conditioning units, dehumidifiers, and high-efficiency furnaces.
• Boilers: Suitable for handling acidic condensation from condensing boilers and tankless water heaters.
• Commercial and Residential Use: Perfect for both commercial and residential settings due to its compact and efficient design.

Specifications:

• Voltage: 230V, 60Hz
• Power Consumption: 100 Watts
• Max Lift: 20 feet
• Flow Rate: 145 GPH at 1 foot
• Tank Capacity: 0.85 qt.
• Dimensions: 11.3" (L) x 4.9" (W) x 5" (H)
• Discharge Size: 3/8" ID tubing
• Safety Features: Built-in safety switch and replaceable check valve

This pump is designed to provide reliable and efficient condensate removal, ensuring your HVAC systems run smoothly and effectively
