BK221UL - Beckett - Pump-115V Condensate(6ea)

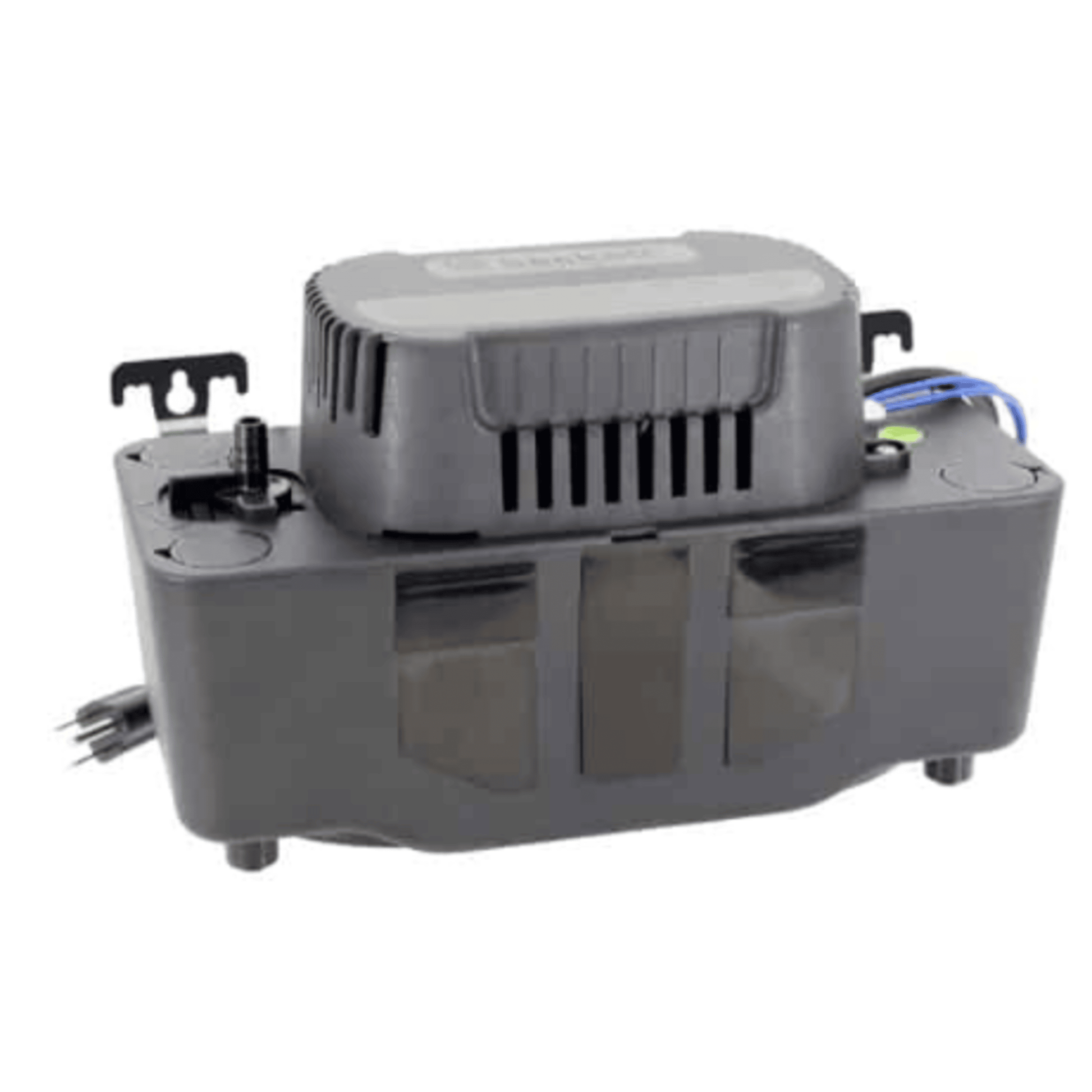

Beckett BK221UL Medium Condensate Removal Pump

The Beckett BK221UL is a reliable, medium-sized condensate pump designed for efficient condensate removal in various HVAC applications. This pump operates at 115V and features a maximum lift of 22 feet, making it ideal for air conditioners, dehumidifiers, high-efficiency furnaces, boilers, and other equipment.

Key Features:

• Automatic Operation: Provides automatic on/off operation to remove condensate produced by HVAC equipment
• Quiet Operation: Engineered for quiet performance, minimizing noise in residential and commercial settings
• High Temperature Handling: Capable of handling condensate up to 150°F, suitable for high-efficiency systems
• Built-in Safety Switch: Includes a safety switch to prevent overflow and potential damage
• Replaceable Check Valve: Features a twist-lock check valve that can be serviced without tools
• Easy Installation: Equipped with multi-slot mounting brackets, a bullseye level on the lid, and a lift-to-test tab for straightforward installation
• Large Tank Capacity: Comes with a 2.5 qt. tank, allowing more water to be pumped out per cycle, reducing the frequency of pump operation
• Flow Rate: Offers a flow rate of 125 GPH at 1 foot, ensuring efficient condensate removal
• Discharge Size: 3/8" ID tubing discharge for compatibility with standard condensate lines

Applications:

• HVAC Systems: Ideal for removing condensation from air conditioning units, dehumidifiers, and high-efficiency furnaces
• Boilers: Suitable for handling acidic condensation from condensing boilers and tankless water heaters
• Commercial and Residential Use: Perfect for both commercial and residential settings due to its efficient and durable design

Specifications:

• Voltage: 115V, 60Hz
• Power Consumption: 60 Watts
• Max Lift: 22 feet
• Flow Rate: 125 GPH at 1 foot
• Tank Capacity: 2.5 qt.
• Dimensions: 11.2" (L) x 5.2" (W) x 6.6" (H)
• Discharge Size: 3/8" ID tubing
• Safety Features: Built-in safety switch and replaceable check valve

This pump is designed to provide reliable and efficient condensate removal, ensuring your HVAC systems run smoothly and effectively
