Switch-Safety 125-250 VAC Drill Clamp (UR rated)(12ea) - Beckett

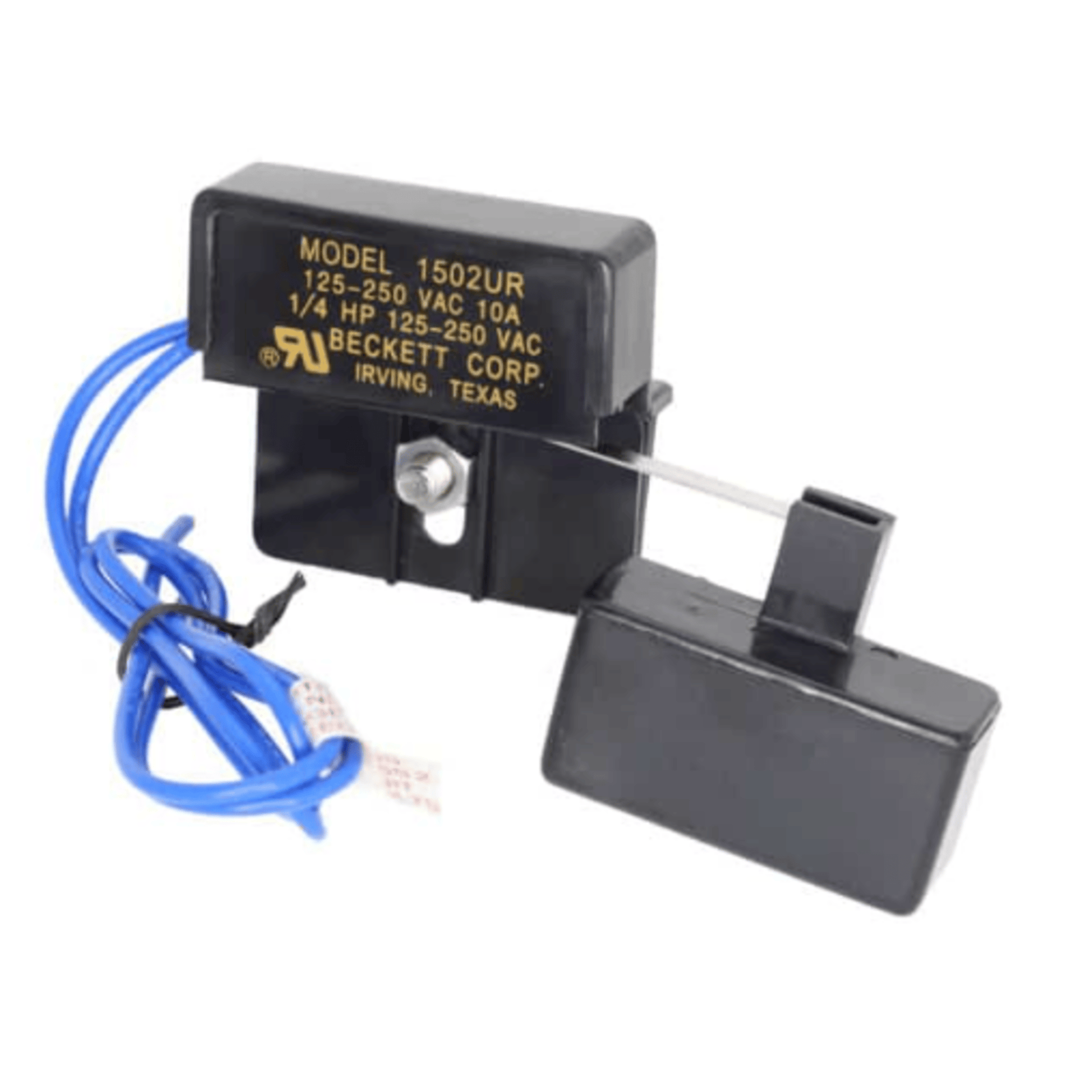

Beckett 1502UR Safety Switch, 125-250 VAC, Drill Clamp, UR Rated, 12PK

The Beckett 1502UR Safety Switch is a reliable, float-actuated switch designed to monitor high water levels in condensate drain pans. This switch can be wired directly to HVAC systems to shut off equipment or sound an alarm if the water level becomes too high.

Key Features:

• Voltage: 125-250 VAC, 10 Amp
• Wire Length: 17 inches
• Switch Type: Single pole, double throw (SPDT)
• Contacts: Silver
• Mounting: Drill clamp for easy installation
• Design: Normally closed, single break snap action
• Application: Suitable for condensate and drain pan monitoring in HVAC systems
• Dimensions: Height: 2.7 in, Length: 3 in, Width: 1.1 in
• UR Rated: Ensures compliance with safety standards

This safety switch is designed for fast and easy installation, providing a reliable means to prevent overflow and protect HVAC equipment
