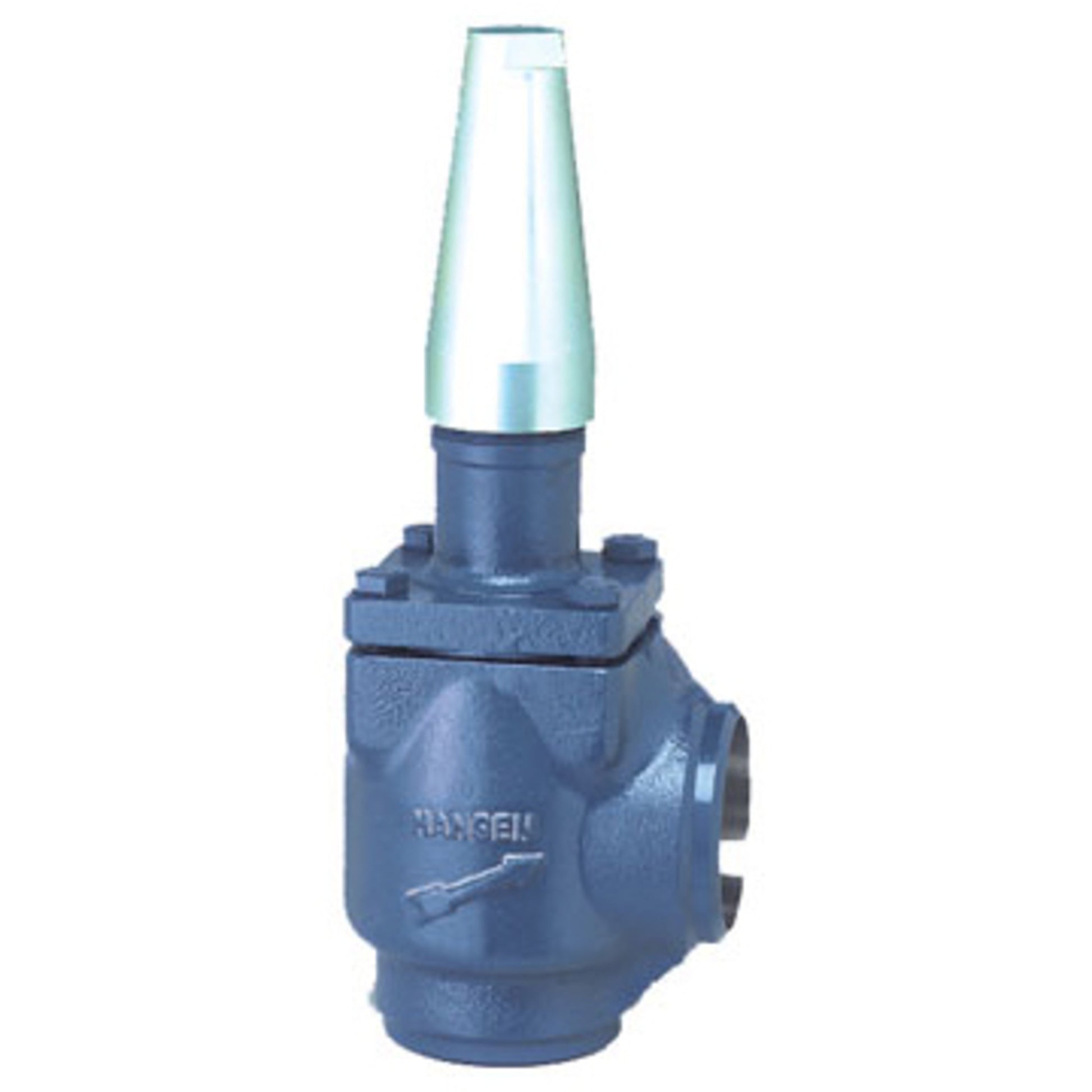

AW600H - Hansen - 6" Ammonia Shut-off Valve Angle, Welded, Handwheel

The Hansen AW600H is a 6" Ammonia Shut-off Valve designed for industrial refrigeration systems. Here's a detailed breakdown:

🔧 Product Overview

• Model: AW600H
• Type: Shut-off Valve
• Valve Style: Angle
• Connection: Butt Weld (BW)
• Handle: Handwheel
• Refrigerant Compatibility: NH₃ (Ammonia) and other approved refrigerants

📐 Specifications

• Port Size: 6" (150 mm)
• Body Material: Cast steel (ASTM A-352, Grade LCB)
• Bonnet Style: Screwed Bonnet
• Seat Disc: Retained PTFE (Teflon)
• Stem: Polished stainless steel
• Stem Packing: Graphite composite + neoprene O-ring
• Top Cover: Ductile iron (ASTM A-536)
• Operating Temperature: -60°F to 240°F (-51°C to 115°C)
• Safe Working Pressure: 400 psig (28 bar g); up to 600 psig (41 bar g) upon request
• Weight: 88 lbs
  1

⚙️ Key Features

• Low Pressure Drop Design: Optimized for efficient flow
• No-Leak Stem Seal: Patented Hansen design
• Extended Neck: Allows for insulation clearance
• Welded Connection: Eliminates flanges and threaded joints, reducing leak potential
• Applications: Suction, liquid, discharge, hot gas, thermosyphon, and oil lines
