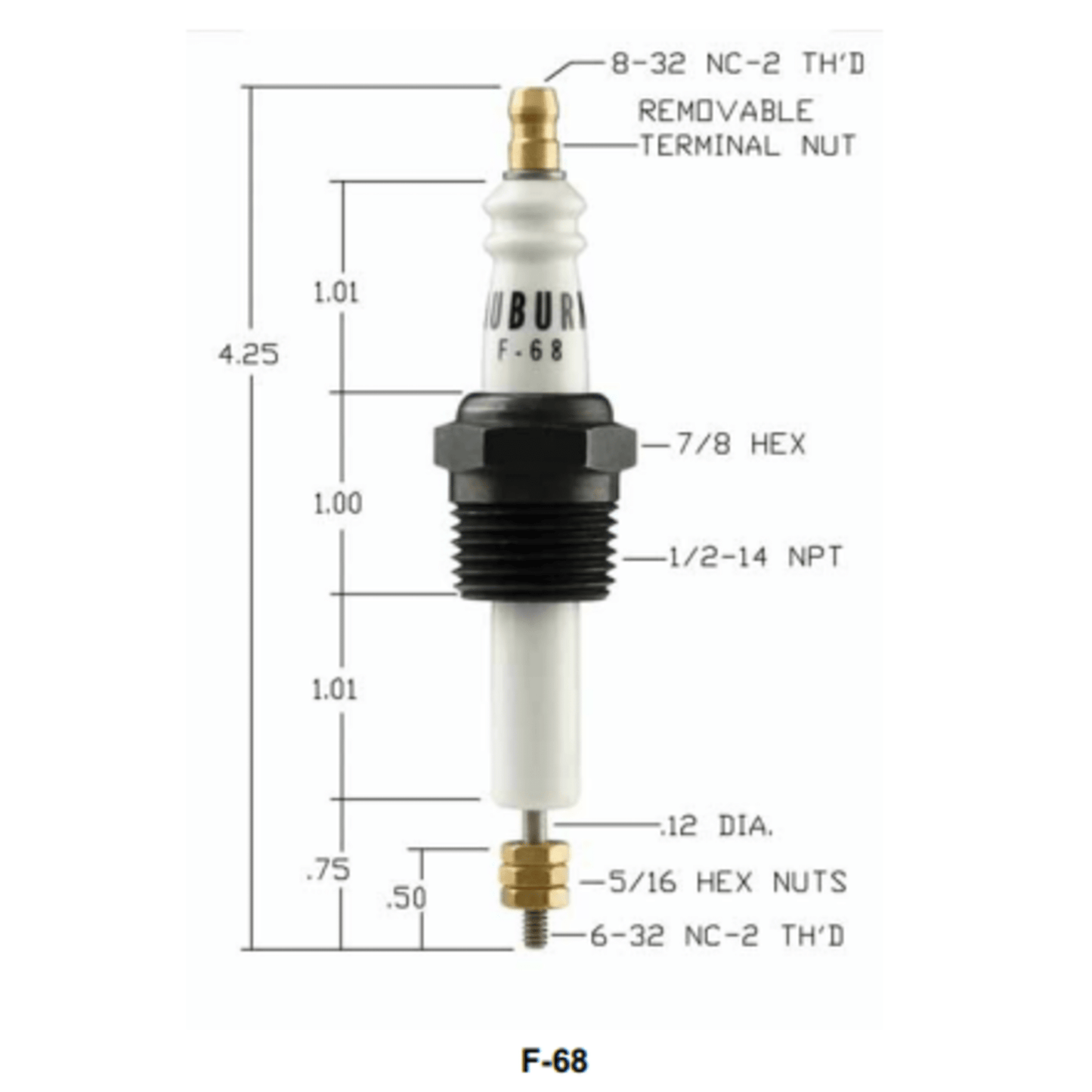

Auburn F-68 Feedthrough (CS12974)

The Auburn F-68 Electric Feedthrough is a versatile component used in various industrial applications. Here are some key details:

• Manufacturer: Auburn
• Part Number: F-68
• Alternate Part Number: CS12974
• Thread Size: 1/2-14 NPT
• Hex Size: 7/8"
• Overall Length: 4.28"
• Current Rating: 30 Amps
• Flash-Over Voltage: 8 kV
• Max Operating Temperature: 200°F
• Conductor Material: Nickel
• Pressure Rating: Suitable for pneumatic applications up to 2500 psi



This feedthrough is designed to transmit current into a sealed vessel and is commonly used in power transformers, switchgear, hermetically sealed compressors, and motors
