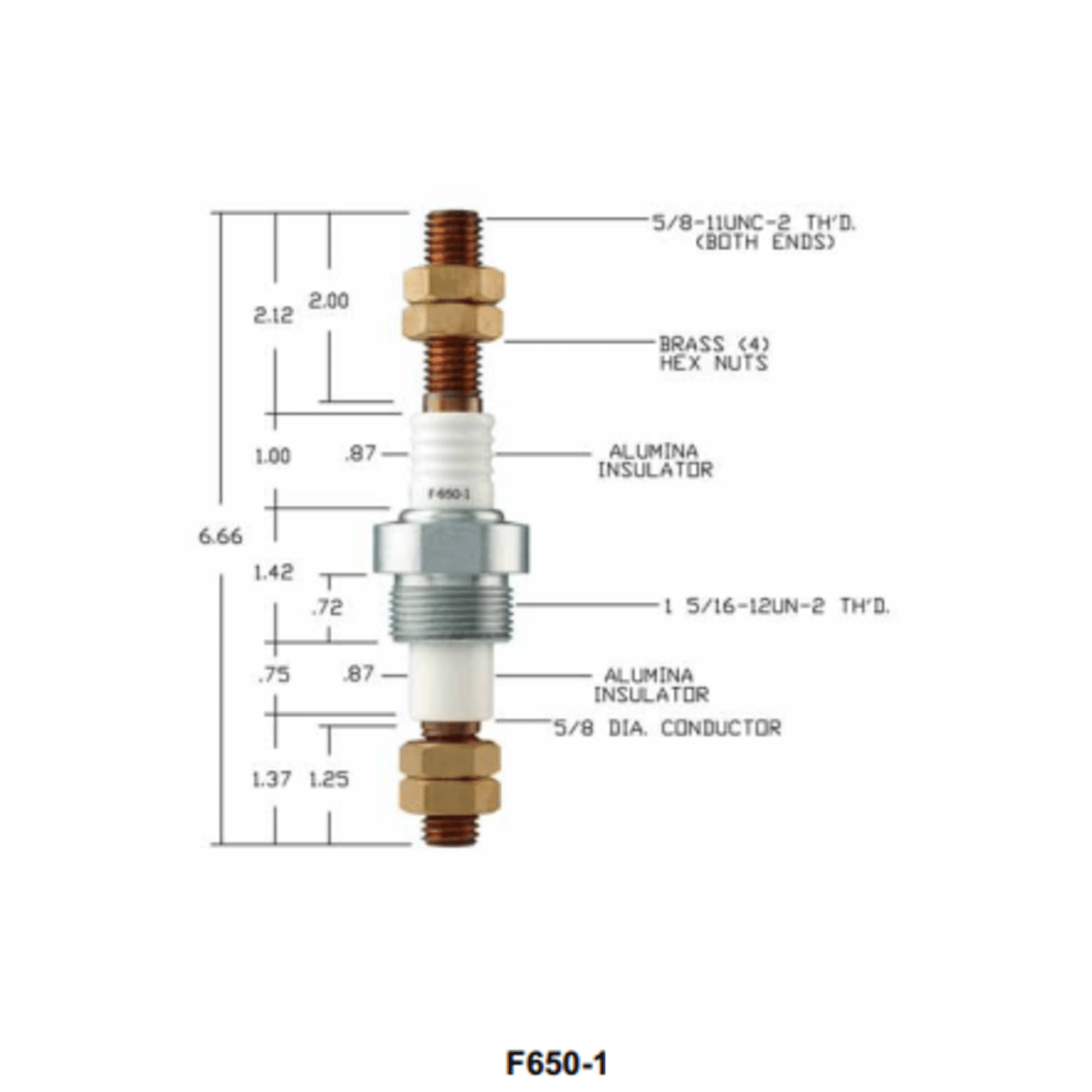

Auburn F-650-1 Feedthrough (CS13080)

The Auburn F-650-1 Electric Feedthrough is a high-quality component used in various industrial applications. Here are some key details:

• Manufacturer: Auburn
• Part Number: F-650-1
• Thread Size:1-5/16-12 NPT
• Hex Size: 1 5/16"
• Overall Length: 6.66"
• Current Rating: 750 Amps
• Flash-Over Voltage: 8 kV
• Max Operating Temperature: 200°F
• Conductor Material: Copper
• Pressure Rating: Suitable for pneumatic applications up to 2500 psi

This feedthrough is designed to transmit current into a sealed vessel and is commonly used in power transformers, switchgear, and hermetically sealed compressors and motors
