AUB-F-630

Federal Mogul

Feedthrough (CS13077) - Auburn

Feedthrough (CS13077) - Auburn

Call for Availability

$420.00 CAD
$0.00 CAD $420.00 CAD
Sale
Shipping calculated at checkout.

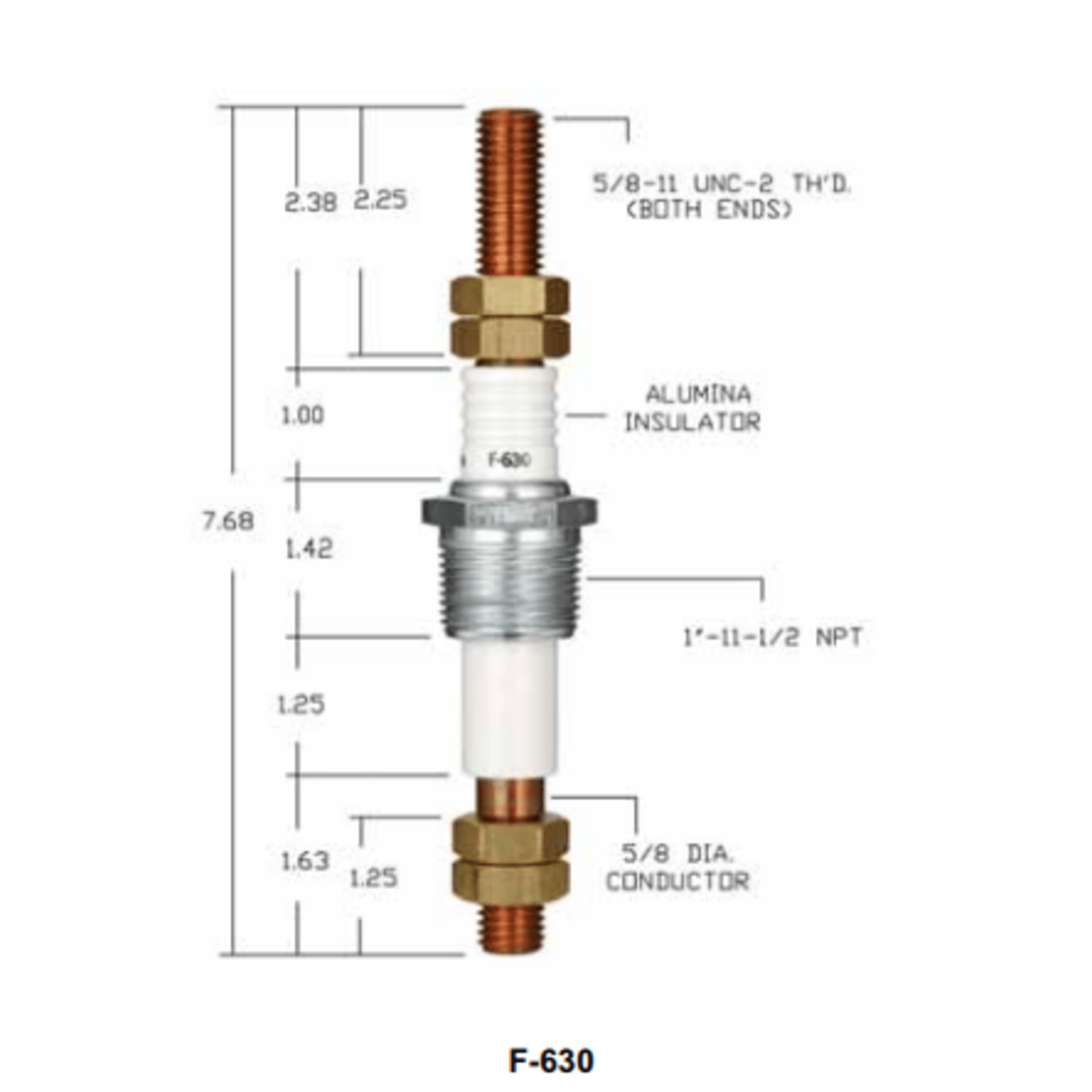

The Auburn F-630 Electric Feedthrough is a versatile and robust component used in various industrial applications. Here are some key details:

  • Manufacturer: Auburn
  • Part Number: F-630
  • Alternate Part Number: CS13077
  • Thread Size: 1” 11 1/2 NPT
  • Hex Size: 1 3/8” CAD
  • Overall Length: 7.68"
  • Current Rating: 750 Amps
  • Flash-Over Voltage: 10 kV
  • Max Operating Temperature: 200°F
  • Conductor Material: Copper
  • Pressure Rating: Suitable for pneumatic applications up to 2500 psi

This feedthrough is designed to transmit current into a sealed vessel and is commonly used in power transformers, switchgear, and hermetically sealed compressors and motors
