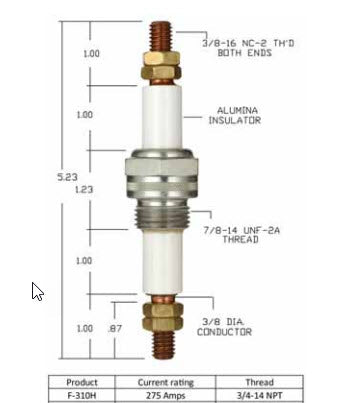

Auburn F-310H, Feedthrough (CS13071)

The Auburn F-310H Electric Feedthrough is a robust component used in various industrial applications. Here are some key details:

• Manufacturer: Auburn
• Part Number: F-310H
• Alternate Part Number: CS13071
• Thread Size: 3/4-14 NPT
• Hex Size: 1-1/8"
• Overall Length: 5.23"
• Porcelain Length: 3.23"
• Connection: 3/8"-16
• Conductor Material: Copper
• Current Rating: 275 Amps
• Flash-Over Voltage: 12 kV
• Max Operating Temperature: 200°F.

This feedthrough is designed to transmit current into a sealed vessel and is commonly used in power transformers, switchgear, and hermetically sealed compressors and motors.
