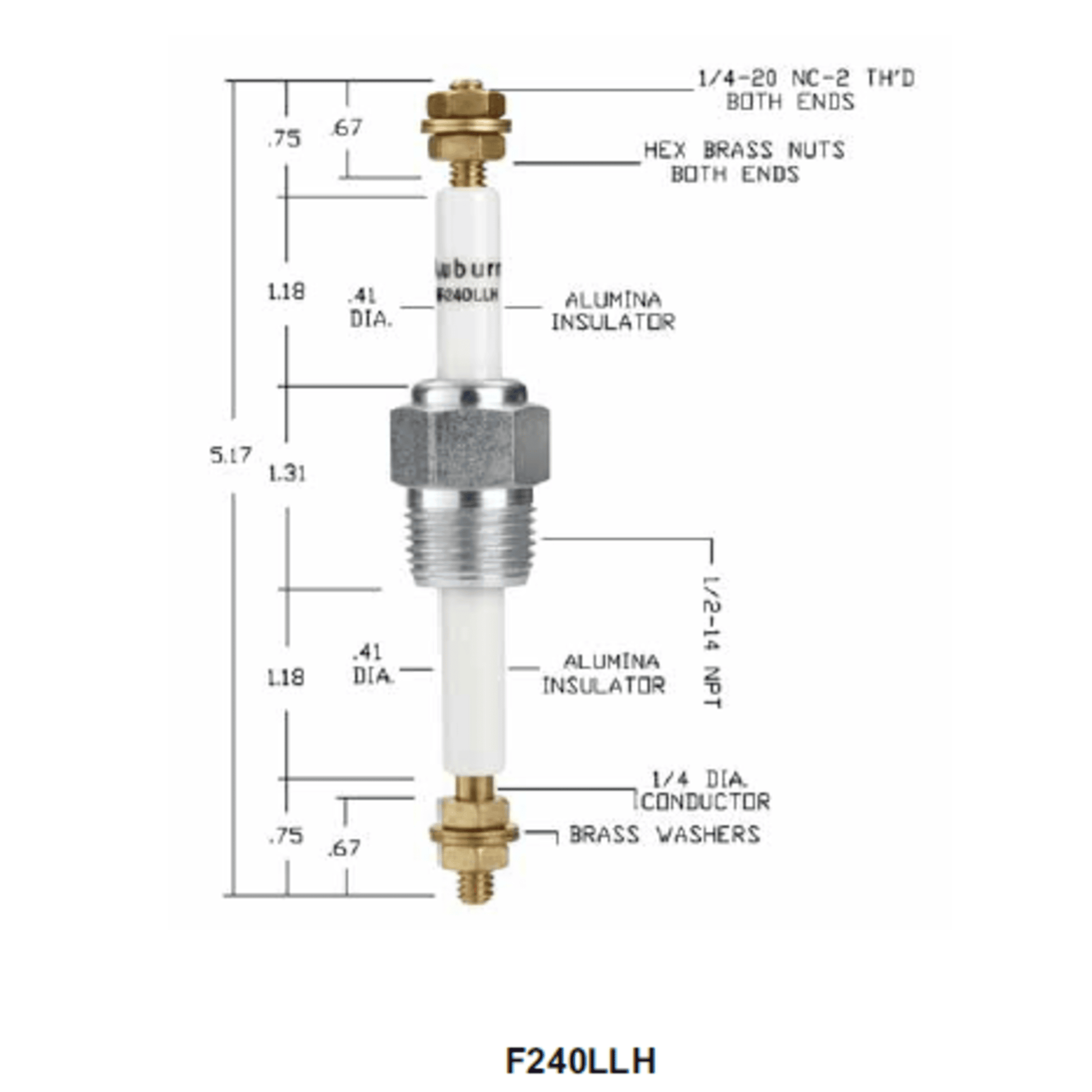

F-240LLH - Auburn - Feedthrough (CS13066)

The Auburn F-240LLH Electric Feedthrough is a specialized component used in various industrial applications. Here are some key details:

• Manufacturer: Auburn
• Part Number: F-240LLH
• Alternate Part Number: CS13066
• Thread Size: 1/2-14 NPT
• Hex Size: 7/8"
• Overall Length: 5.17"
• Current Rating: 105 Amps
• Flash-Over Voltage: 14 kV
• Max Operating Temperature: 200°F
• Conductor Material: Brass
• Pressure Rating: Suitable for pneumatic applications up to 2500 psi

This feedthrough is designed to transmit current into a sealed vessel and is commonly used in power transformers, switchgear, and hermetically sealed compressors and motors
