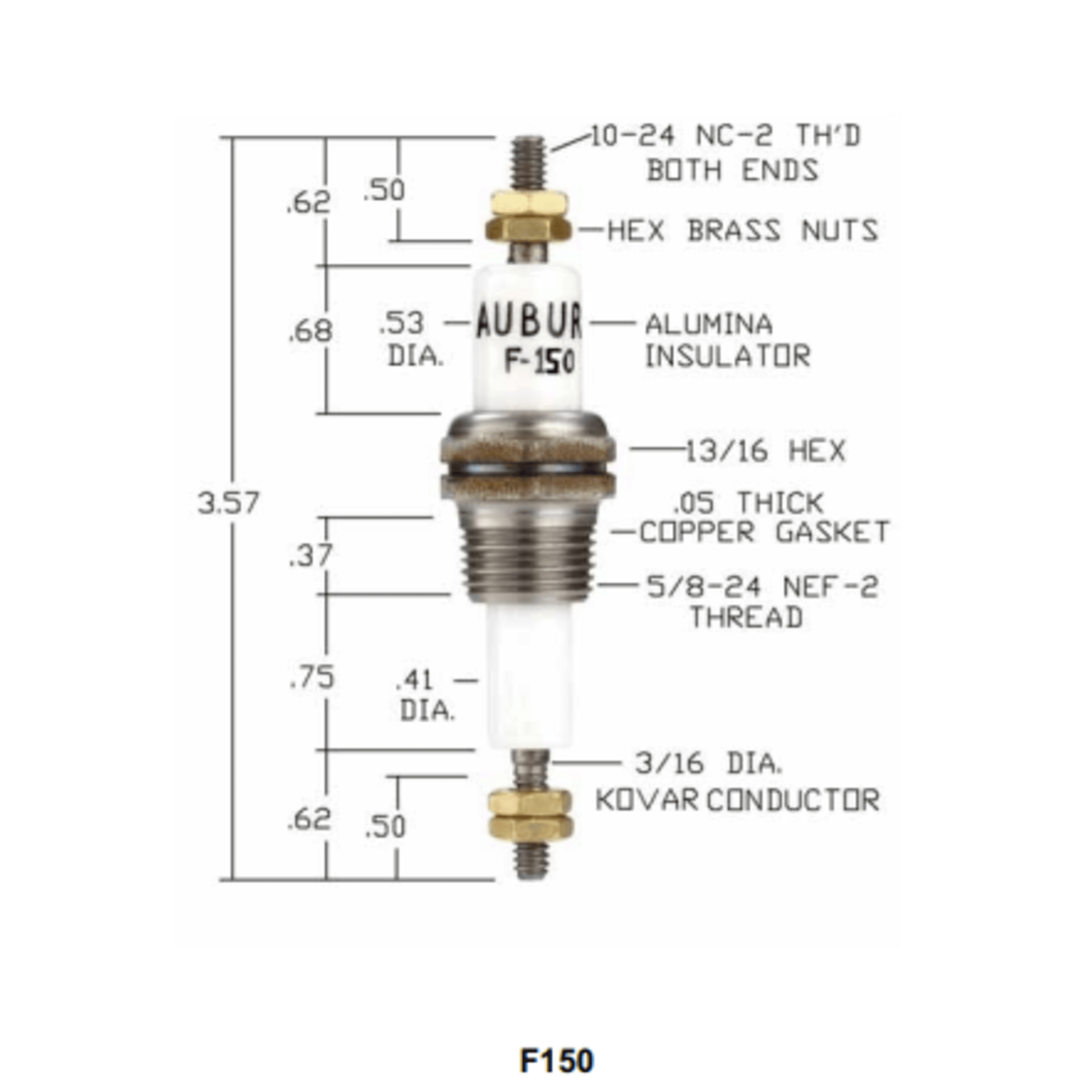

F-150 - Auburn - Feedthrough (CS13057)

The Auburn F-150 Feedthrough is a versatile component used in various industrial applications. Here are some key details:

• Manufacturer: Auburn
• Part Number: F-150 (CS13057)
• Thread Size: 5/8-24 NPT
• Hex Size: 13/16"
• Overall Length: 3.57"
• Current Rating: 30 Amps
• Flash-Over Voltage: 8 kV
• Max Operating Temperature: 600°F
• Conductor Material: Kovar
• Pressure Rating: Suitable for pneumatic applications up to 2500 psi

This feedthrough is designed to transmit current into a sealed vessel and is commonly used in power transformers, switchgear, and hermetically sealed compressors and motors
