Auburn F-140 Feedthrough (CS13056)

Auburn F-140 Feedthrough (CS13056)

SKU: AUB-F-140

Regular price $125.41 CAD
Regular price $125.41 CAD Sale price $125.41 CAD
Sale Sold out
Shipping calculated at checkout.

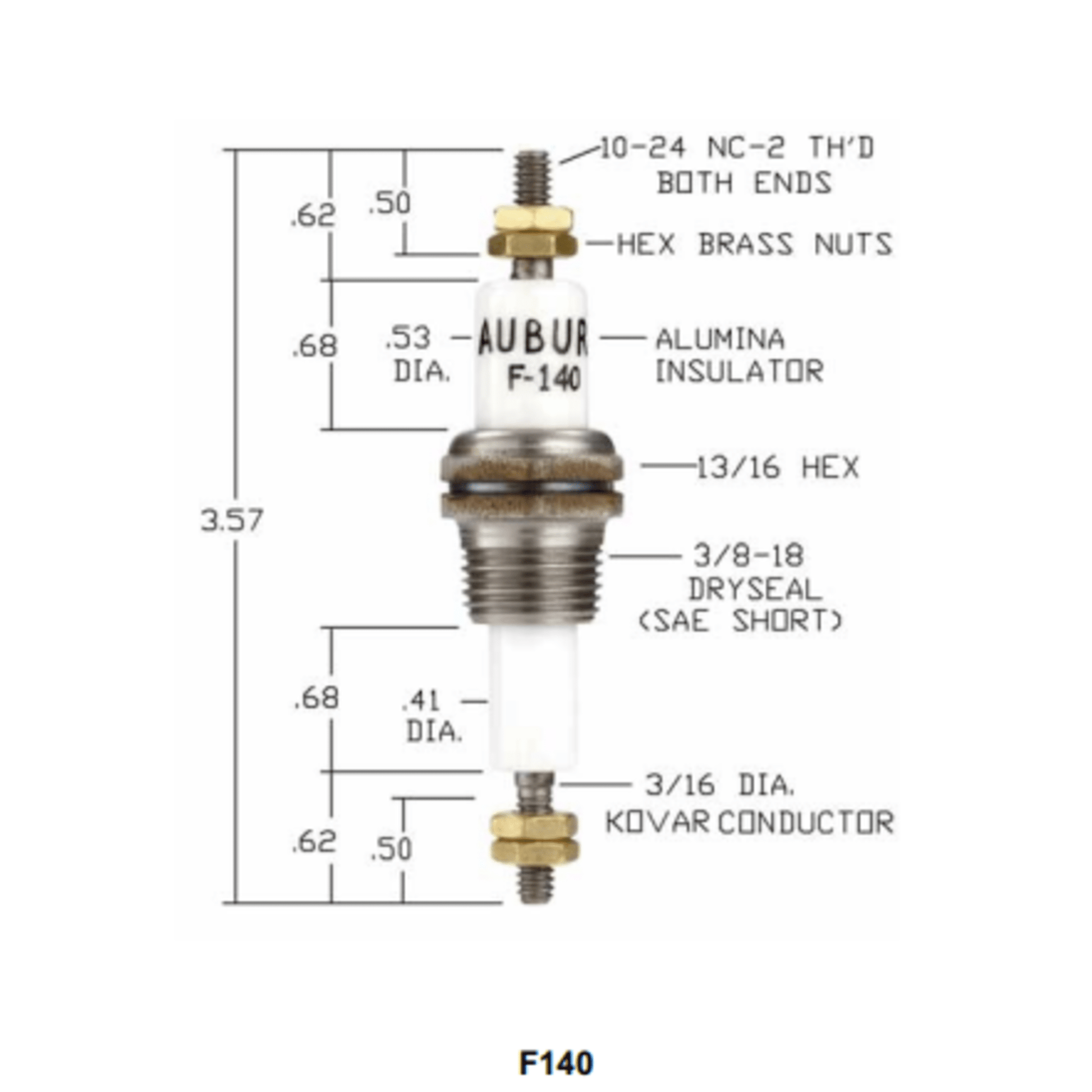

The Auburn F-140 Feedthrough is a versatile component used in various industrial applications. Here are some key details:

  • Manufacturer: Auburn
  • Part Number: F-140
  • Thread Size: 3/8-18 NPT
  • Hex Size: 13/16"
  • Overall Length: 3.57"
  • Current Rating: 30 Amps
  • Flash-Over Voltage: 8 kV
  • Max Operating Temperature: 600°F
  • Conductor Material: Kovar
  • Pressure Rating: Suitable for pneumatic applications up to 2500 psi

This feedthrough is designed to transmit current into a sealed vessel and is commonly used in power transformers, switchgear, and hermetically sealed compressors and motors



Auburn SKU CS13056 or 13056, part number F-140 is for use with your combustion system. Feedthrough is used to transmit current into a sealed vessel, and sight glass allow operators to confirm ignition and flame propagation. Auburn Feedthroughs are used in a wide variety of industrial applications, power transformers, switchgear, hermetically sealed compressors and motors. Pressure Rating: Auburn electric feedthroughs are rated for pneumatic applications to 2500 psi at the temperature outlined for each specific product. Maximum Operating Temperatures: No portion of the feedthrough may exceed the indicated temperature, regardless of the heat source. Higher temperatures may be permitted with application restrictions. Installation Note: The use of two wrenches is recommended when connecting to our feedthroughs. Each has two brass nuts which should be tightened against each other. This eliminates possible damage to the seal
