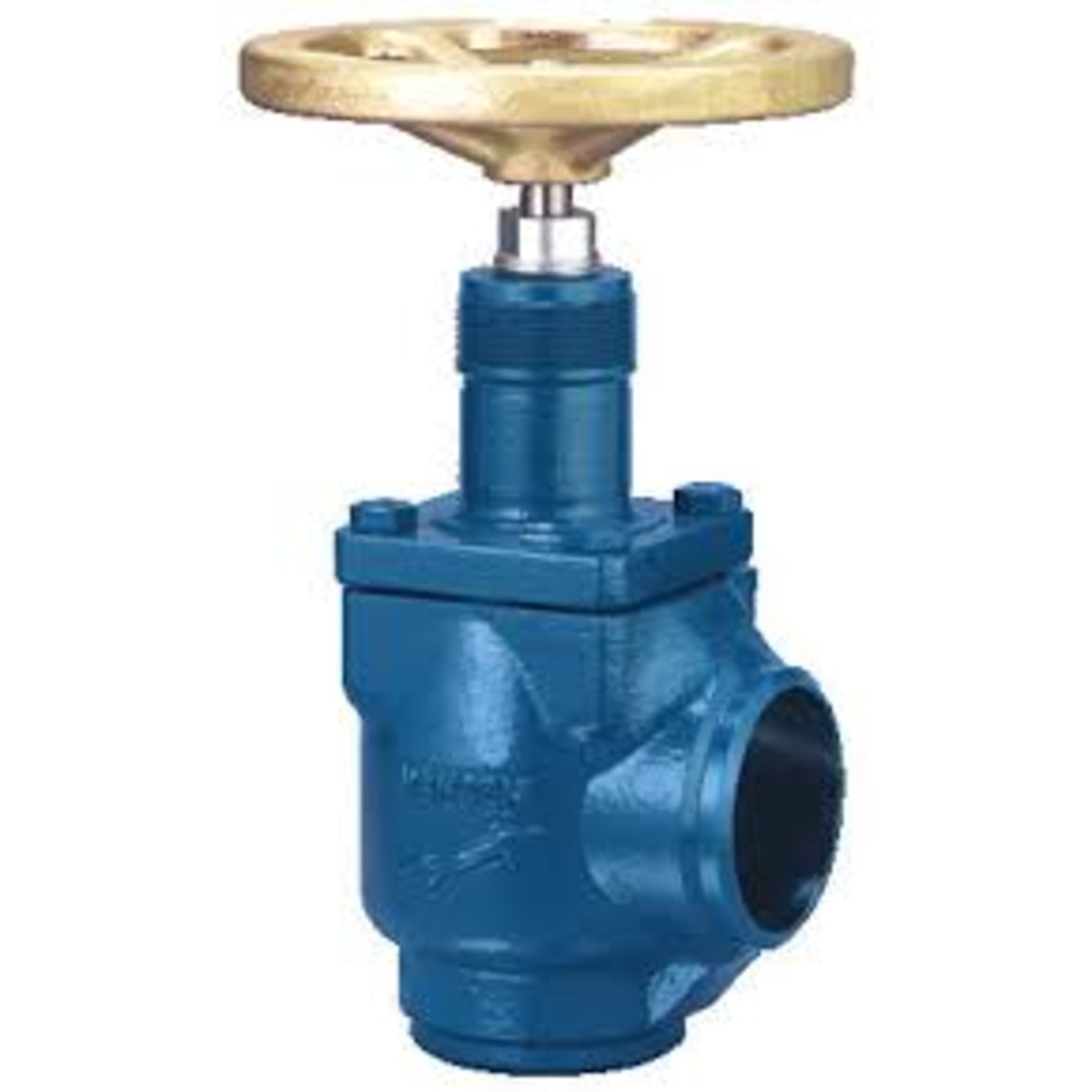

AS200H - Hansen - 2 Ammonia Shut-off Valve Angle, Socket Weld, Handwheel

The Hansen AS200H is a 2" Ammonia Shut-off Valve designed for industrial refrigeration systems. Here's a detailed breakdown:

🔧 Product Overview

• Model: AS200H
• Type: Shut-off Valve
• Valve Style: Angle
• Connection: Socket Weld (SW)
• Handle: Handwheel
• Refrigerant Compatibility: NH₃ (Ammonia), and other approved refrigerants

📐 Specifications

• Port Size: 2" (50 mm)
• Bonnet Style: Screwed Bonnet
• Valve Body Type: Angle
• Material: Steel body with anti-corrosion finish (ACT)
• Dimensions:
  • Width: 11"
  • Height: 6"
  • Length: 14"
• Weight: 15 lbs.
• Working Pressure: Up to 600 psig (41 bar g)

⚙️ Key Features

• Non-Leak Stem Seal: Patented design minimizes refrigerant loss
• Teflon Seat Disc: Ensures tight shut-off
• Anti-Spin Seat Disc: Prevents wear from high-velocity gas
• Socket Weld Design: Allows for quick, clean installation without threading or flanges
• Applications: Suction, discharge, liquid, hot gas, and oil lines
