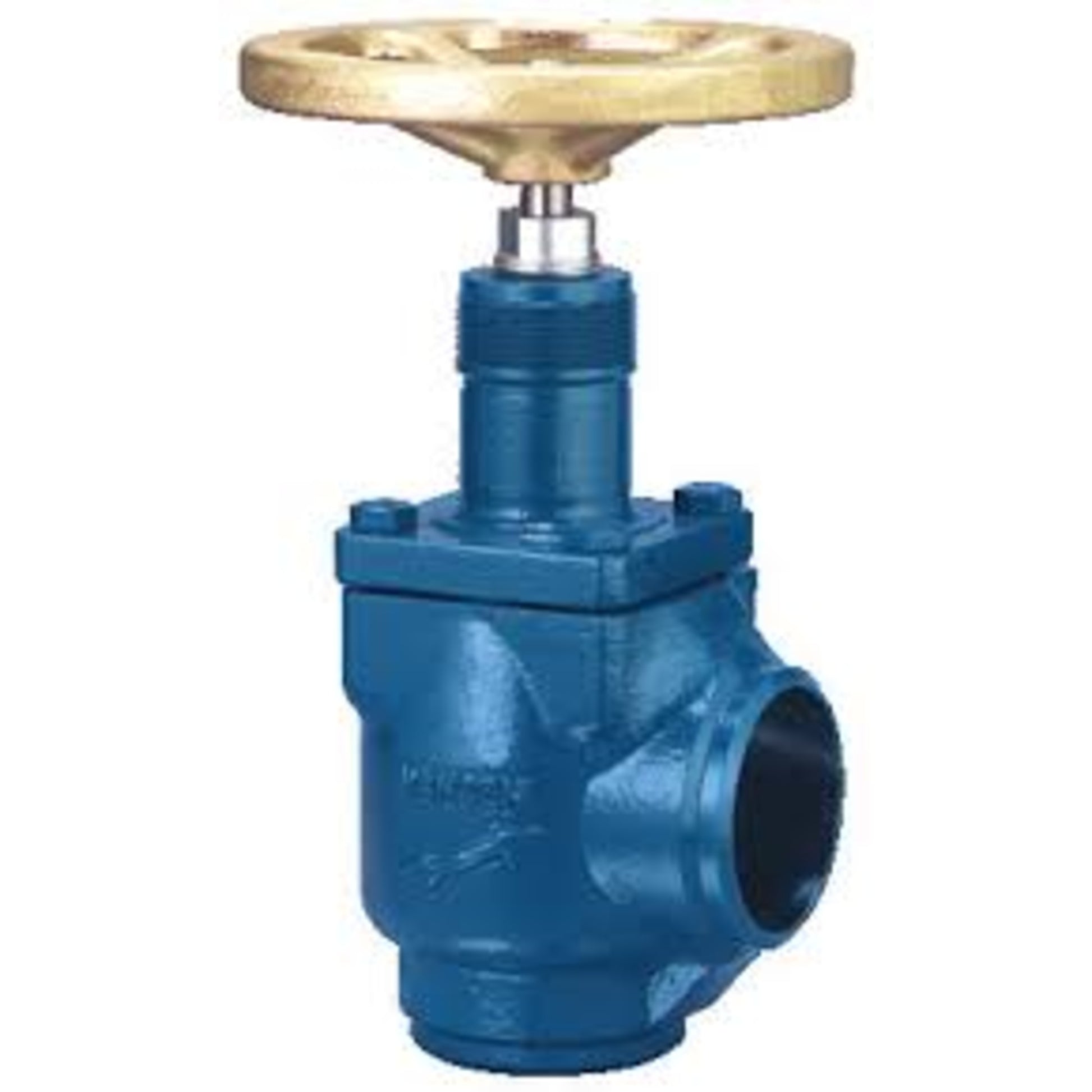

AS150H - Hansen - 1-1/2 NH3 Shut-off Valve Angle, Socket Weld, Handwheel

The Hansen AS150H is a 1-1/2" NH₃ Shut-off Valve designed for industrial refrigeration systems using ammonia. Here's a detailed overview:

🔧 Product Overview

• Model: AS150H
• Type: Shut-off Valve
• Valve Style: Angle
• Connection Type: Socket Weld (SW)
• Handle Style: Handwheel
• Pipe Size: 1-1/2" (40 mm)
• Refrigerant Compatibility: NH₃ (Ammonia), and other compatible refrigerants

⚙️ Key Features

• Low Pressure Drop Design: Optimized for efficient flow
• Forged and Cast Steel Body: Durable and corrosion-resistant
• Non-Leak Stem Seal Design: Patented Hansen design minimizes stem seal leakage
• Teflon Seat Disc: For reliable sealing
• Applications: Suction, liquid, discharge, recirculating liquid, hot gas, thermosyphon, and oil lines
• Operating Pressure: Suitable for systems up to 600 psig (41 bar g)
  1

📐 Specifications

• Mounting: Angle configuration for compact piping layouts
• Finish: Painted
• Weight: Approx. 5–7 lbs (varies slightly by supplier)
• Installation: Socket weld directly to steel piping (no flanges or threads)
