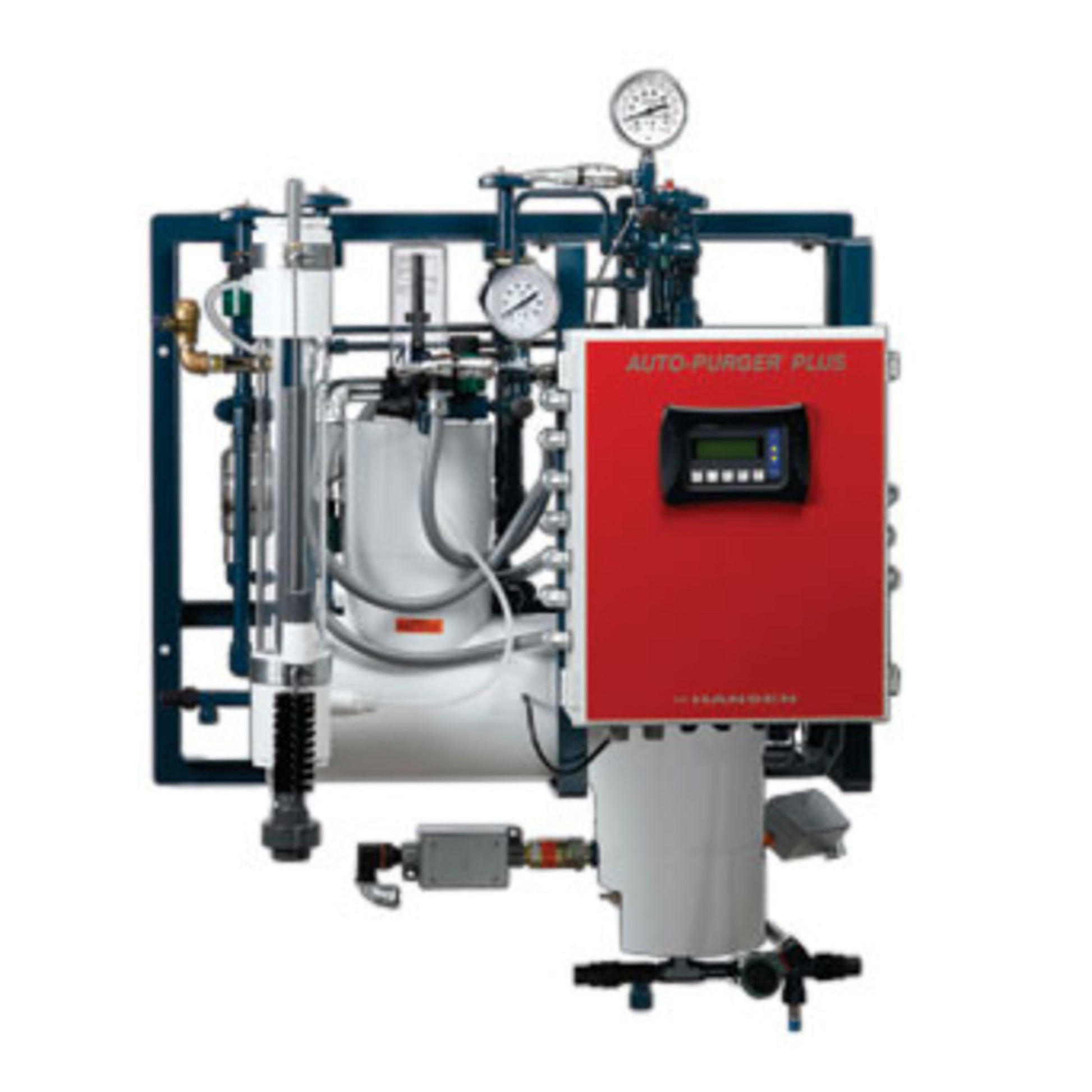

APPT16 - Hansen - Auto-Purger Plus, 16PTS, NH3, 115V, Air/Water, Touch Screen

The Hansen APPT16 is a high-performance Auto-Purger Plus system designed for ammonia (NH₃) refrigeration systems. Here's a comprehensive overview:

🔧 Product Overview

• Model: APPT16
• Type: Auto-Purger Plus (Air/Water)
• Purge Points: 16
• Refrigerant: NH₃ (Ammonia)
• Voltage: 115V / 60Hz
• Interface: Touch Screen
• Construction: Welded steel, preassembled and pre-wired
• Certifications: CSA certified

⚙️ Key Features

• Fully Automatic: Electronically controlled for air and water purging
• Touch Screen Interface: For easy configuration and monitoring
• Water Bubbler: Automatic, included for safe water purging
• Relief Valve & Isolation Valves: Pre-installed for safety and serviceability
• Capacity:
  • Handles up to 750 tons (2600 kW) at suction pressures below atmospheric
  • Up to 1500 tons (5300 kW) at positive suction pressures
• Water Removal Capacity:
  • 1% water: ½ gallon/week
  • 5% water: 1 gallon/day
  • 10% water: 3 gallons/day
  • 20%+: 5 gallons/day

📐 Specifications

• Operating Temperature: -50°F to +240°F (-50°C to +115°C)
• Safe Working Pressure: 400 psig (28 bar)
• Internal Volume: 0.7 cu ft (20 liters)
• Refrigerant Inventory: 0.35 cu ft (10 liters)
• Weight: 410 lbs. (186 kg)
• Mounting: Wall or steel frame (supports 450 lbs.), 8 mounting holes provided
