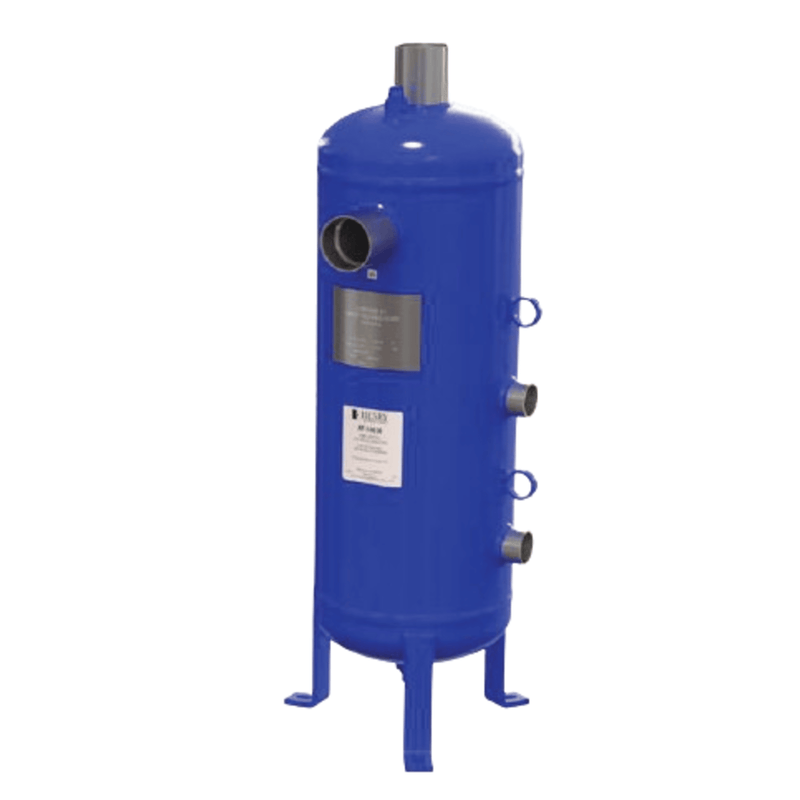

Accumulator 2-1/8 ODS - 53.975mm - Suction - Henry

The AF-06018 is a Vertical Suction Line Accumulator manufactured by Henry Technologies, designed for use in refrigeration and air conditioning systems. Here are the key specifications and features:

🔧 Product Overview

• Model: AF-06018
• Connection Size: 2-1/8" ODS (Outer Diameter Solder)
• Metric Equivalent: 53.975 mm
• Orientation: Vertical
• Weight: Approximately 42 lbs

⚙️ Function

• Purpose: Protects the compressor by preventing liquid slugging—a condition where liquid refrigerant returns to the compressor, potentially causing damage.
• Operation: Temporarily stores excess liquid refrigerant and oil, then meters it back to the compressor at a controlled rate.
• Applications: Ideal for systems where sudden liquid return is possible, such as in low-temperature refrigeration or during defrost cycles.

✅ Features

• Compatible with ammonia, HFC, and HCFC refrigerants and their associated oils.
• Mounting legs included for secure installation.
