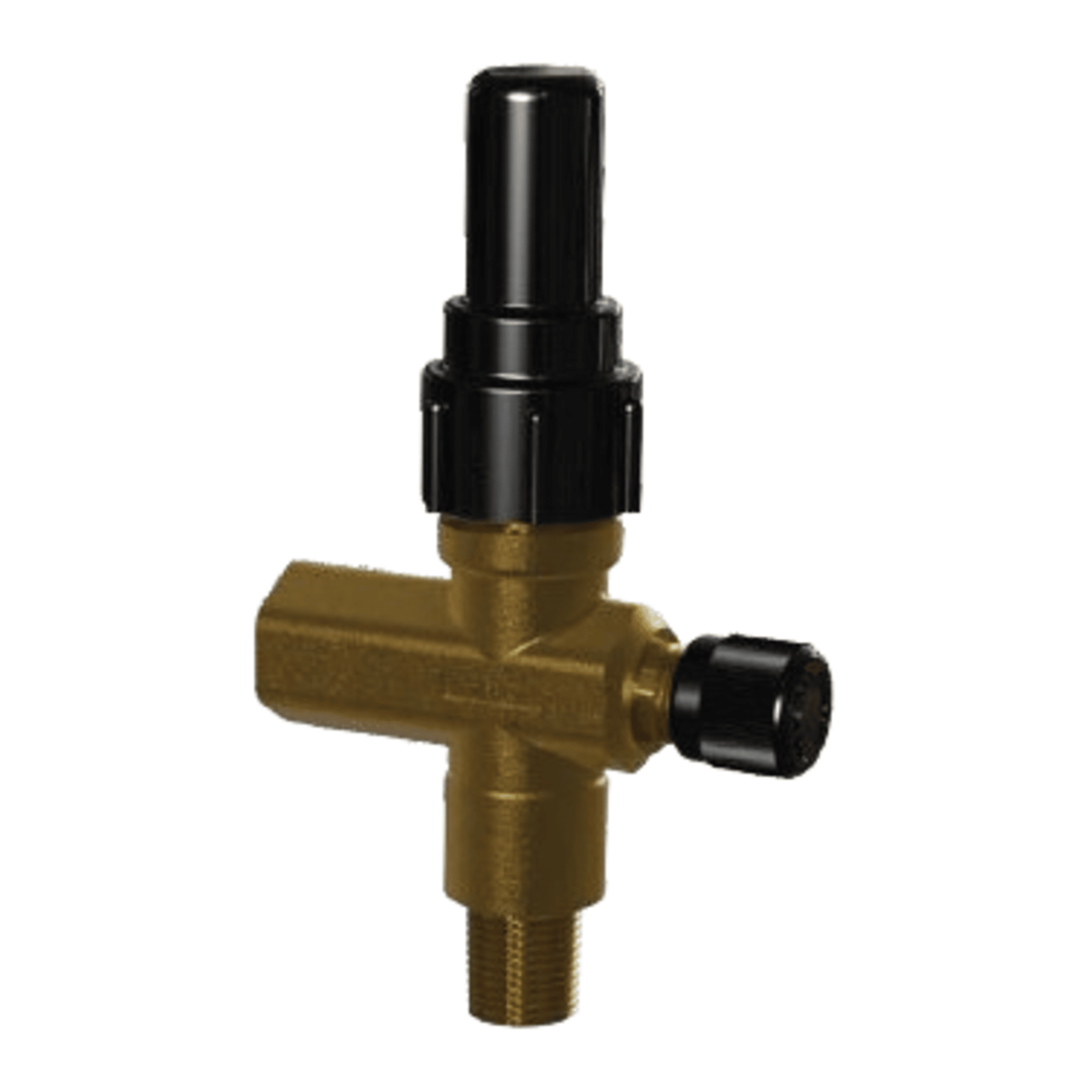

9290 - Henry - 1/8 MPT x 1/4 FPT - Brass Transducer Valve

The Henry 9290 is a brass transducer valve designed for use in refrigeration and HVAC systems. Here's a detailed overview of its specifications and features:

🔧 Technical Specifications

• Model: 9290
• Material: Forged Brass body with a plated steel stem
• Inlet Connection: 1/8" MPT (Male Pipe Thread)
• Outlet Connection: 1/4" FPT (Female Pipe Thread), Flared
• Additional Port: 1/4" SAE flare port with Schrader fitting for pressure gauge access
• Pressure Rating: Up to 500 PSI
• Temperature Range: -20°F to 300°F (-29°C to 149°C)
• Dimensions: 2.38" L × 4.16" H

⚙️ Key Features

• Compact and robust design
• Molded plastic cap for protection
• Isolation capability: Allows for safe transducer replacement without system depressurization
• Application: Suitable for HCFC and HFC refrigerants, associated oils, and other non-corrosive industrial fluids

This valve is commonly used to mount and isolate pressure transducers, enabling system monitoring and maintenance without interrupting operations
