9274A - Henry - 1/2 ODS X 3/8 FL - Brass Seal Cap Angle Charging and Purging Valves

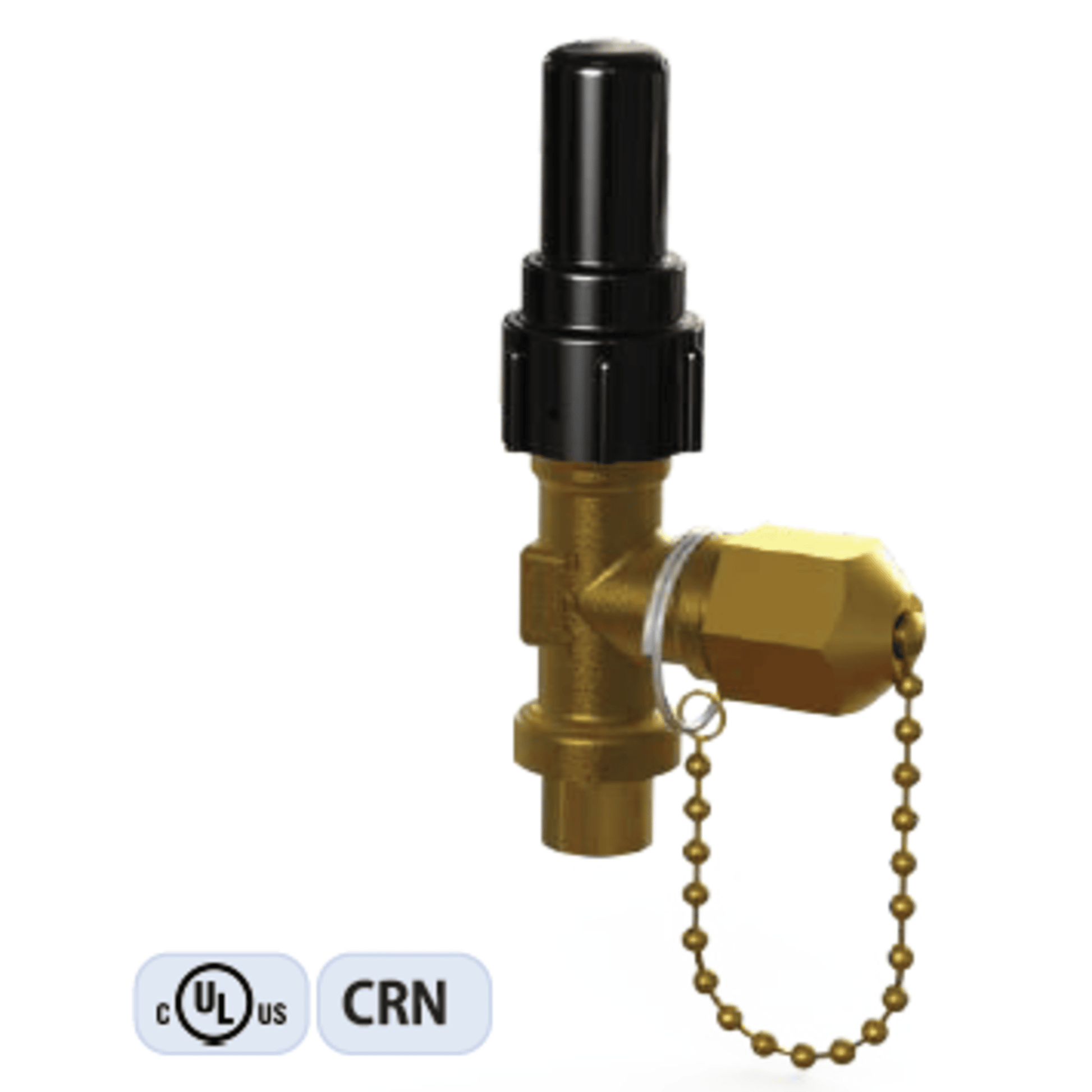

The Henry 9274A is a packless brass seal cap angle charging and purging valve designed for use in air conditioning and refrigeration systems. Here's a breakdown of its key specifications and features:

🔧 Technical Specifications

• Model: 9274A
• Material:
  • Body: Brass (corrosion-resistant and durable)
  • Stem: Plated steel
  • Seal Cap: Molded plastic
• Connections:
  • Bottom Inlet: 1/2" ODS (Outside Diameter Solder)
  • Side Outlet: 3/8" FL (SAE Flare)
• Design:
  • Angle Valve: 90° flow direction change
  • Packless: Reduces leak risk by eliminating packing glands
• Operating Pressure: Up to 500 PSI (34.5 bar)
• Operating Temperature: From -20°F to +275°F (-29°C to +135°C)
• Certifications: UL and C-UL listed

🧰 Applications

• Ideal for charging and purging in systems using:
  • HCFC
  • HFC refrigerants
  • Ammonia (NH₃)

This valve is known for its reliability, ease of maintenance, and robust construction, making it a solid choice for both commercial and industrial refrigeration setups
