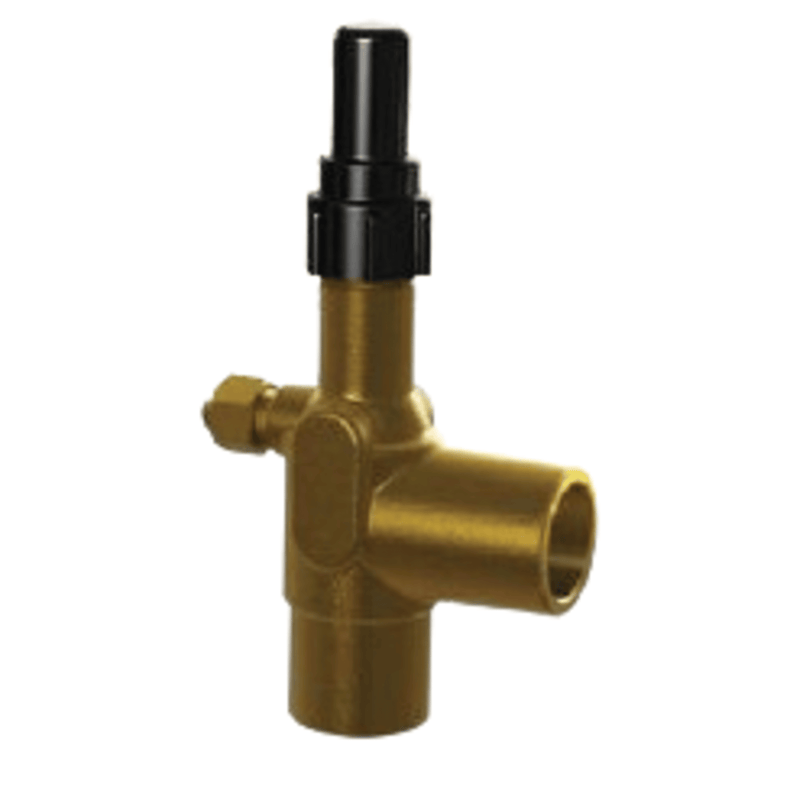

Shut-Off Valve 1-5/8 ODS - 41.275mm - Brass Seal Cap Angle - Henry
Original price
$1,016.30
-
Original price
$1,016.30
Original price
$1,016.30
$1,016.30
$1,016.30
-
$1,016.30
Current price
$1,016.30
SKU HEN-7836
Availability:
4-6 weeks
The 7836 Henry Brass Seal Cap Angle Shut-Off Valve is a packless shut-off valve designed for use in air conditioning and refrigeration systems. Here are the key specifications and features:
🔧 Technical Specifications
- Model: 7836
- Connection Size: 1-5/8" ODS (Outside Diameter Solder), equivalent to 41.275 mm
- Valve Type: Angle shut-off, packless
- Seal Cap: Brass with molded plastic cap
- Body Material: Forged brass
- Stem Material: Plated steel
- Seat Seal: Metal-to-metal
- Packing Gland: Graphite compound
- Maximum Operating Pressure: 500 psi (approx. 34.5 bar)
- Maximum Operating Temperature: 300°F (approx. 149°C)
- Backseating: Yes, allows packing replacement in-situ
- Access Port: 1/4" M flare access port above backseat
📦 Dimensions & Weight
- Length: 11.70 in
- Width: 4.10 in
- Height: 2.80 in
- Overall Height: 9.14 in
- Shipping Weight: ~1.53 lbs
🧰 Applications
- Used for isolating, flow control, charging, and purging in HVAC and refrigeration systems.
- Compatible with HCFC and HFC refrigerants and their associated oils.
