7836 - Henry - 1-5/8 ODS - 41.275mm - Brass Seal Cap Angle Shut-Off Valves

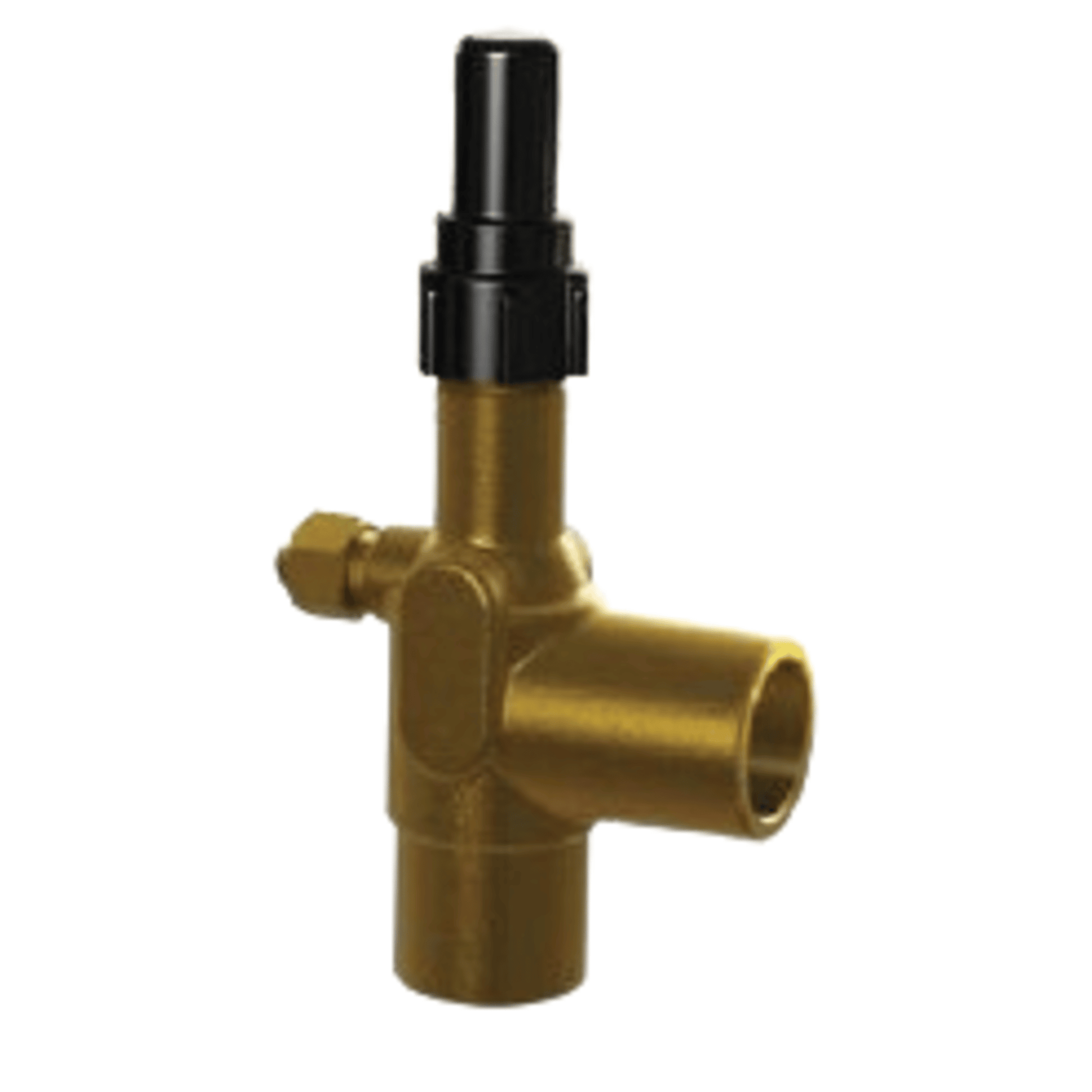

The 7836 Henry Brass Seal Cap Angle Shut-Off Valve is a packless shut-off valve designed for use in air conditioning and refrigeration systems. Here are the key specifications and features:

🔧 Technical Specifications

• Model: 7836
• Connection Size: 1-5/8" ODS (Outside Diameter Solder), equivalent to 41.275 mm
• Valve Type: Angle shut-off, packless
• Seal Cap: Brass with molded plastic cap
• Body Material: Forged brass
• Stem Material: Plated steel
• Seat Seal: Metal-to-metal
• Packing Gland: Graphite compound
• Maximum Operating Pressure: 500 psi (approx. 34.5 bar)
• Maximum Operating Temperature: 300°F (approx. 149°C)
• Backseating: Yes, allows packing replacement in-situ
• Access Port: 1/4" M flare access port above backseat

📦 Dimensions & Weight

• Length: 11.70 in
• Width: 4.10 in
• Height: 2.80 in
• Overall Height: 9.14 in
• Shipping Weight: ~1.53 lbs

🧰 Applications

• Used for isolating, flow control, charging, and purging in HVAC and refrigeration systems.
• Compatible with HCFC and HFC refrigerants and their associated oils.
