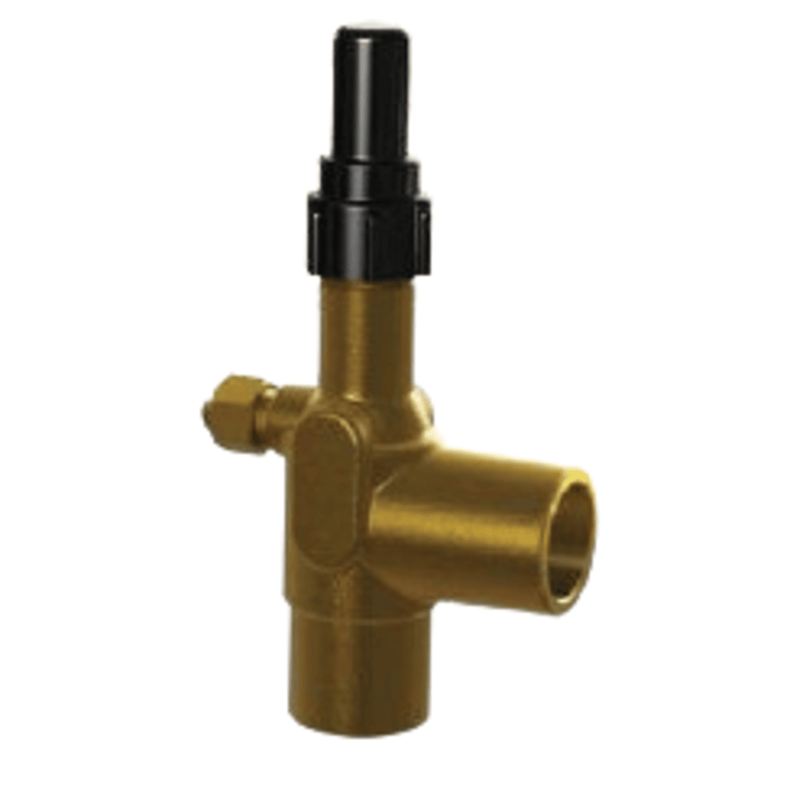

Shut-Off Valve 7/8 ODS - 22.225mm - Brass Seal Cap Angle - Henry

Here are the specifications and features for the Henry 7833 Brass Seal Cap Angle Shut-Off Valve:

🔧 Technical Specifications

• Model: 7833
• Connection Size: 7/8" ODS (Outside Diameter Solder), equivalent to 22.225 mm
• Valve Type: Angle shut-off, packless
• Seal Cap: Molded plastic over brass
• Body Material: Forged brass
• Stem Material: Plated steel
• Seat Seal: Metal-to-metal
• Packing Gland: Graphite compound
• Access Port: 1/4" M flare access port above backseat
• Backseating: Yes, allows packing replacement while in service

📈 Performance Ratings

• Maximum Operating Pressure: 500 psi (34.5 bar)
• Operating Temperature Range: -20°F to +300°F (-29°C to +149°C)

📦 Dimensions & Weight

• Length: 5.10 in
• Width: 4.10 in
• Height: 2.20 in
• Overall Height: 5.44 in
• Shipping Weight: ~1.06 lbs

🧰 Applications

• Used in air conditioning and refrigeration systems
• Suitable for HCFC and HFC refrigerants and their associated oils
• Ideal for isolation, charging, purging, and flow control
