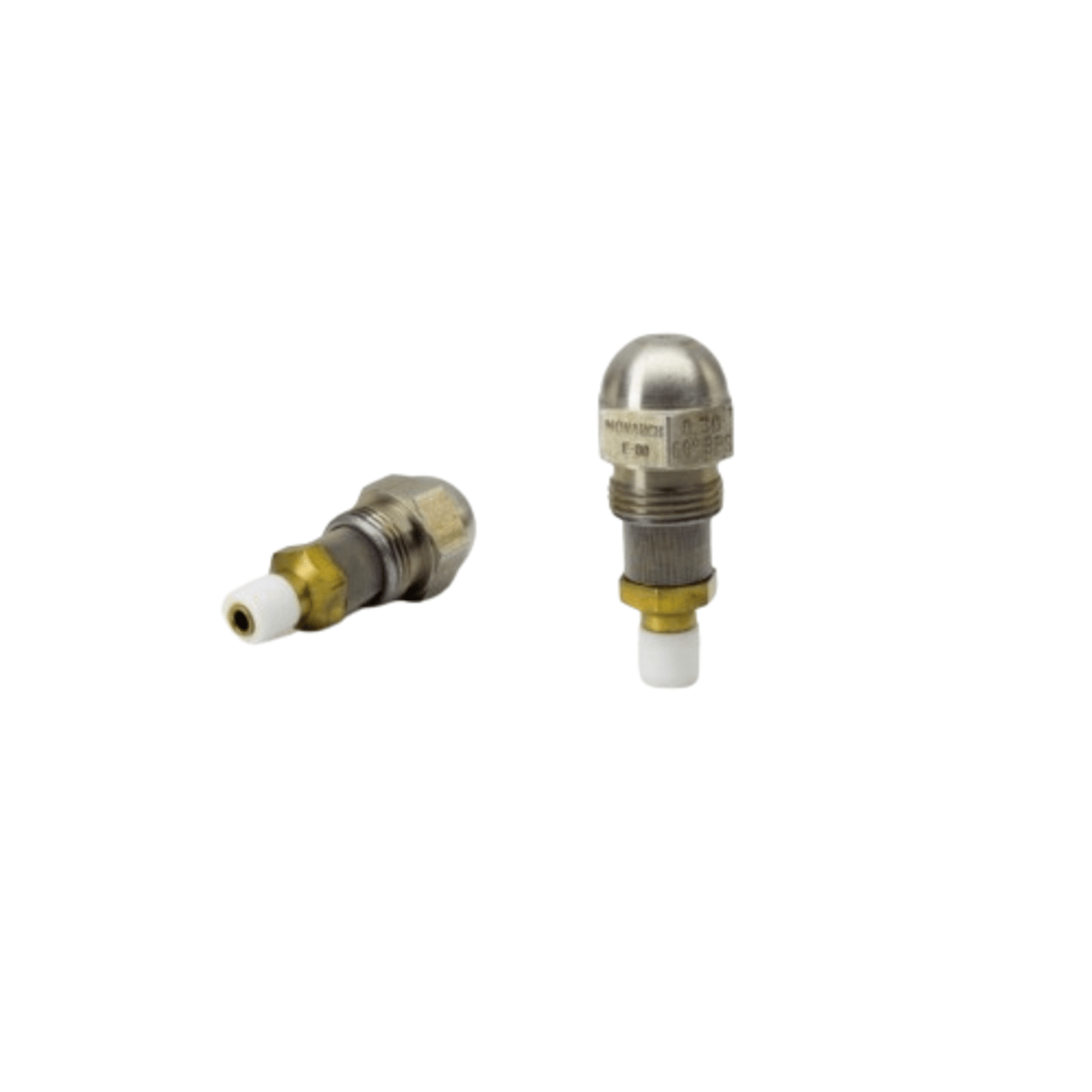

7.0080BPS - Monarch - Oil Nozzle

Here’s a detailed overview of the Monarch 7.00 80 BPS Oil Nozzle:

🔧 Technical Specifications

• Model: 7.0080BPS
• Flow Rate: 7.00 GPH (Gallons Per Hour) at 100 PSI
• Spray Angle: 80°
• Spray Pattern: BPS Series – Variable orifice via bypass
• Material:
  • Tip & disc: High-chrome stainless steel
  • Strainer: 120 mesh Monel screen
  • Body & fittings: Brass
  • O-ring: Viton

🔄 BPS (By-Passing) Functionality

• Variable Flow Control: Achieved by adjusting pressure in the bypass line.
• Spray Angle Adjustment: Spray angle widens by 5°–10° when the bypass is fully open.
• Operating Pressure: Rated for 100 PSI on #2 fuel oil; can operate up to 250 PSI for oils up to 70 SSU viscosity.
