Henry Technologies

6434N - Henry - 5/8 ODS X 5/8 FL - Brass Angle Hand Expansion Valves

6434N - Henry - 5/8 ODS X 5/8 FL - Brass Angle Hand Expansion Valves

SKU: HEN-6434N

$445.33 CAD
$445.33 CAD
Sale Sold out
Shipping calculated at checkout.

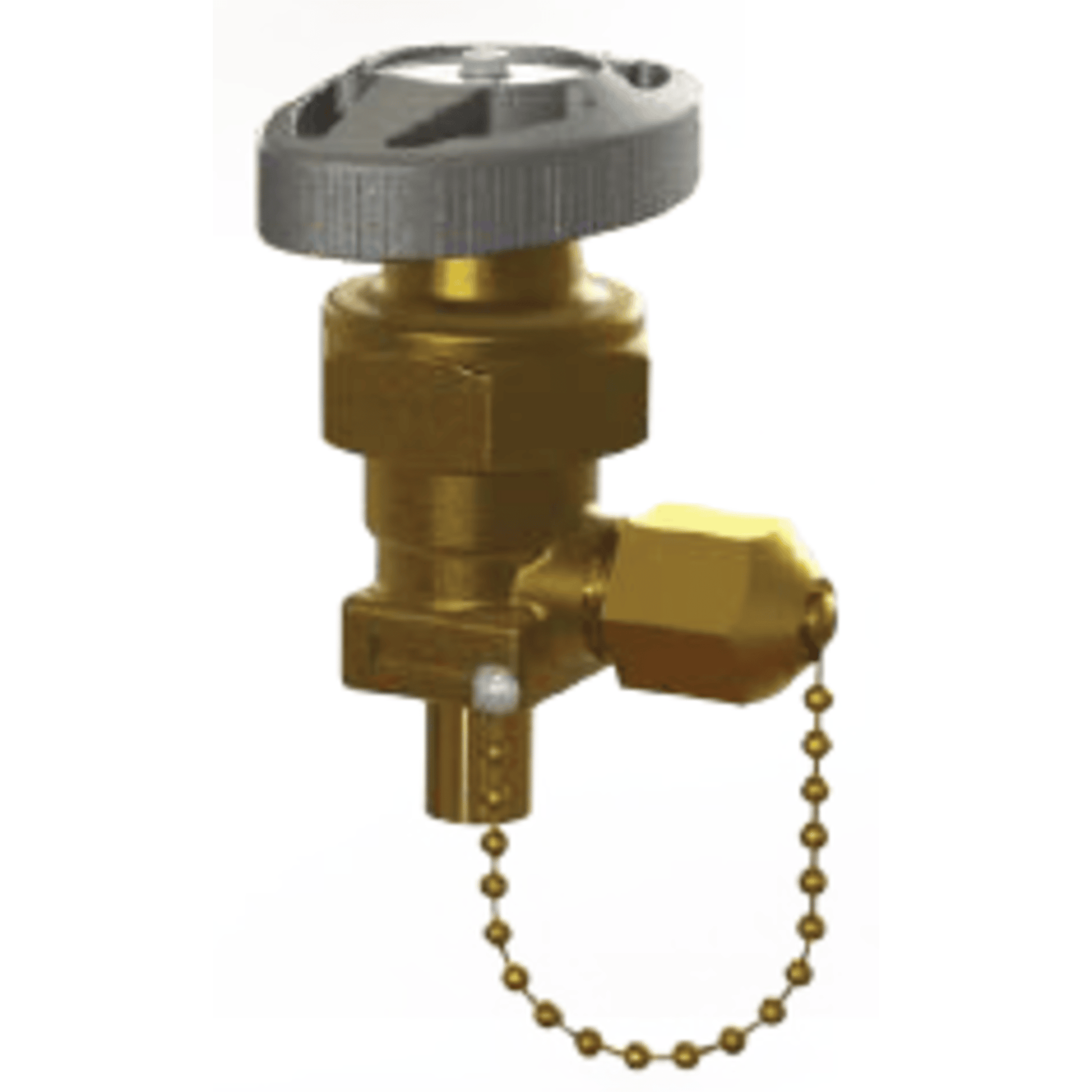

The Henry 6434N is a brass angle hand expansion valve designed for precise manual control in refrigeration and air conditioning systems. Here are its key specifications:

🔧 Henry 6434N Specifications

  • Model: 6434N
  • Connection Size: 5/8" ODS (solder) x 5/8" FL (flare)
  • Valve Type: Angle hand expansion
  • Design: Packless (uses metal diaphragms instead of a packed gland for stem sealing)
  • Material:
    • Body & Bonnet: Brass
    • Lower Stem: Brass
    • Upper Stem, Cap, Springs: Stainless steel
    • Seat Ring: Heat-stabilized nylon
    • Diaphragm Set: Phosphor bronze and stainless steel
    • Hand-Wheel: White metal
  • Applications: Suitable for HCFC, HFC, and CO₂ refrigerants and their associated oils
  • Features:
    • Compact and robust design
    • Positive shut-off with heat-stabilized nylon seat ring
    • Raised seat to reduce debris-related sealing issues
    • Hermetic seal between bonnet, diaphragms, and body
    • Suitable for vacuum applications
