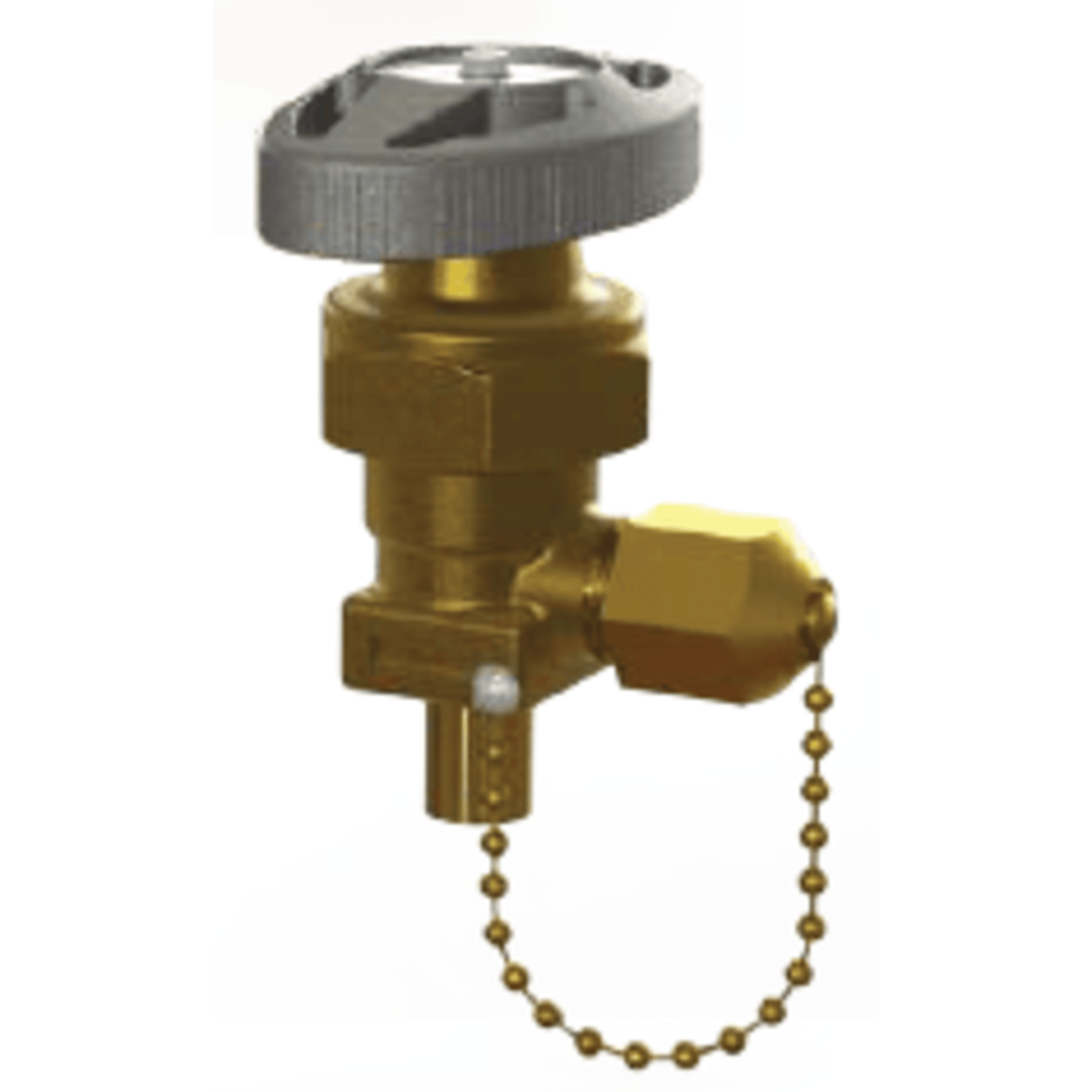

6432N - Henry - 3/8 ODS X 3/8 FL - Brass Angle Hand Expansion Valves

The Henry 6432N is a brass angle hand expansion valve used for manual flow regulation in refrigeration and air conditioning systems. Here are the key specifications:

🔧 Henry 6432N Specifications

• Model: 6432N
• Connection Size: 3/8" ODS (solder) x 3/8" FL (flare)
• Valve Type: Angle hand expansion
• Design: Packless diaphragm
• Material:
  • Body & Bonnet: Forged brass
  • Stem & Cap: Stainless steel
  • Seat Ring: Heat-stabilized nylon
  • Diaphragm Set: Phosphor bronze and stainless steel
  • Hand-Wheel: Cast zinc or white metal
• Maximum Working Pressure: 500 PSI
• Temperature Range: -20°F to 275°F (-29°C to 135°C)
• Features:
  • Compact and durable design
  • Positive shut-off with raised seat to reduce debris interference
  • Hermetic seal between bonnet, diaphragms, and body
  • Suitable for vacuum applications
  • Bi-directional flow capability
