Henry Hand Expansion Valve, Brass Globe, Standard 1-1/8 ODS IN - 28.575mm
Original price
$1,342.60
-
Original price
$1,342.60
Original price
$1,342.60
$1,342.60
$1,342.60
-
$1,342.60
Current price
$1,342.60
SKU HEN-6298N
Availability:
Special Order

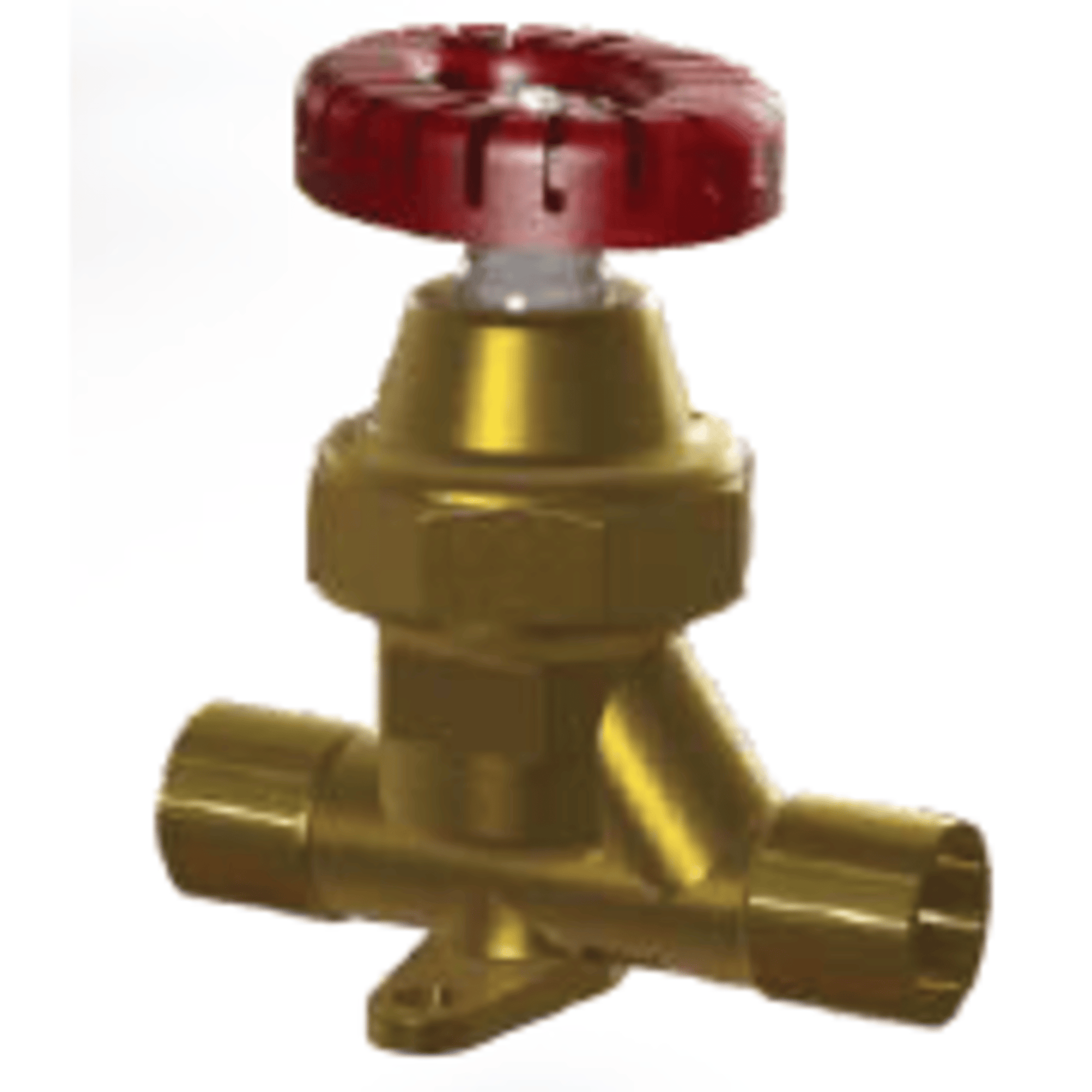

The Henry 6298N is a brass globe hand expansion valve designed for manual flow regulation in refrigeration and HVAC systems. Here are the detailed specifications:
?? Henry 6298N Specifications
- Model: 6298N
- Connection Size: 1-1/8" ODS (Outside Diameter Solder)
- Metric Equivalent: 28.575 mm
- Valve Type: Globe hand expansion
- Design: Packless diaphragm
- Material: Forged brass
-
Features:
- Angled body for compact design and low pressure drop
- Vented seal cap
- Non-rising stem
- Flow direction arrow on valve body
- Premium neoprene O-ring seals
- Maximum Working Pressure: 500 PSI (34.5 bar)
- Operating Temperature Range: -40°F to +248°F (-40°C to +120°C)
- Refrigerant Compatibility: CO?, HCFC, HFC, and other refrigerants where materials are compatible
