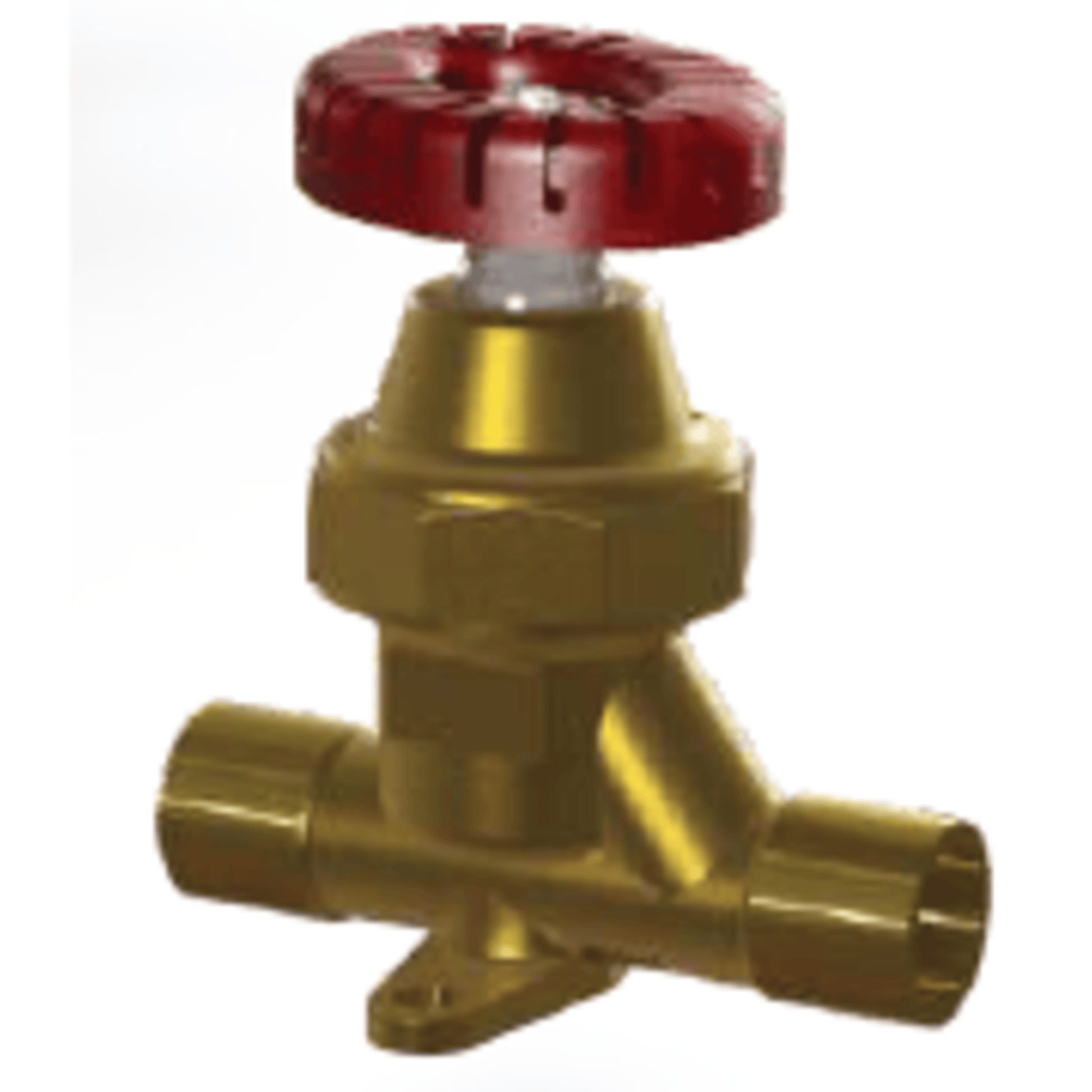

6293N - Henry - 3/8 ODS in - 9.525mm - Brass Globe Hand Expansion Valves, Standard

The Henry 6293N is a brass globe hand expansion valve designed for manual refrigerant flow control in HVAC and refrigeration systems. Here are the detailed specifications:

🔧 Henry 6293N Specifications

• Model: 6293N
• Connection Size: 3/8" ODS (Outside Diameter Solder)
• Metric Equivalent: 9.525 mm
• Valve Type: Globe hand expansion
• Design: Packless diaphragm
• Material: Forged brass
• Features:
  • Globe-style body for smooth, precise flow control
  • Positive shut-off with heat-stabilized nylon seat ring
  • Hermetic seal between bonnet and body
  • Bi-directional flow capability
  • Suitable for vacuum applications
• Maximum Working Pressure: 500 PSI
• Temperature Range: -20°F to 275°F (-29°C to 135°C)
• Refrigerant Compatibility: CO₂, HCFC, HFC, and compatible oils
