Henry Technologies

6266N - Henry - 3/4 ODS in - 19.05mm - Brass Globe Shut-Off Valves, Standard

6266N - Henry - 3/4 ODS in - 19.05mm - Brass Globe Shut-Off Valves, Standard

SKU: HEN-6266N

$849.45 CAD
$849.45 CAD $849.45 CAD
Sale Sold out
Shipping calculated at checkout.

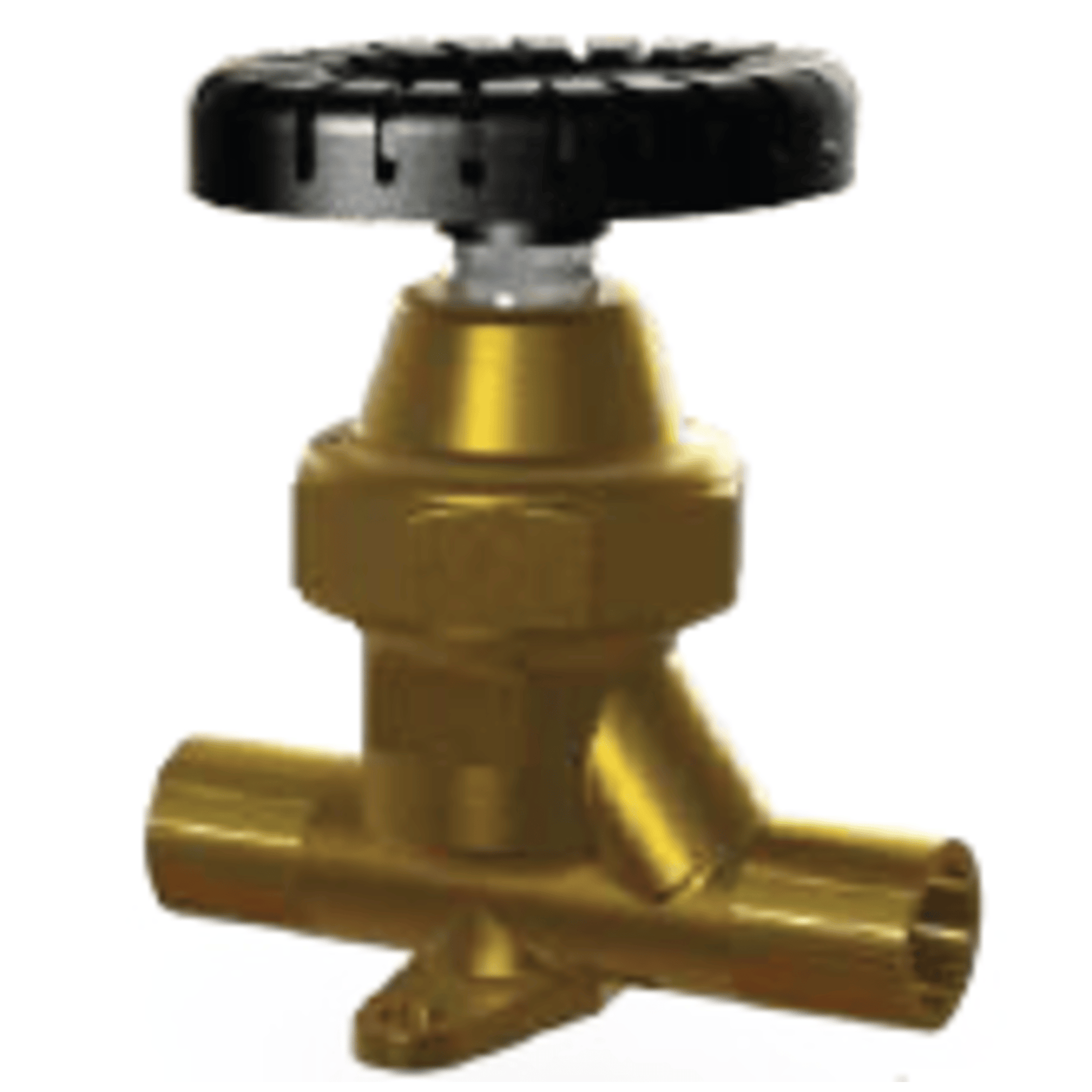

The Henry 6266N is a brass globe shut-off valve designed for manual shut-off in refrigeration and HVAC systems. Here are the key specifications:

🔧 Henry 6266N Specifications

  • Model: 6266N
  • Connection Size: 3/4" ODS (Outside Diameter Solder)
  • Metric Equivalent: 19.05 mm
  • Valve Type: Globe shut-off
  • Design: Packless diaphragm
  • Material: Forged brass
  • Features:
    • Globe-style body for smooth flow and minimal pressure drop
    • Positive shut-off with heat-stabilized nylon seat ring
    • Hermetic seal between bonnet and body
    • Bi-directional flow capability
    • Suitable for vacuum applications
  • Maximum Working Pressure: 500 PSI
  • Temperature Range: -20°F to 275°F (-29°C to 135°C)
  • Refrigerant Compatibility: CO₂, HCFC, HFC, and compatible oils
