.60 80 PL - Monarch - Oil Nozzle - 12 Pack

.60 80 PL – Monarch Oil Nozzle (12 Pack)

Monarch .60 80 PL oil nozzles are designed for oil‑fired burners requiring a hollow cone spray pattern at moderate firing rates. Manufactured to Monarch’s exacting standards, these nozzles provide reliable combustion performance in applications where equipment specifies hollow cone characteristics rather than semi‑solid or solid spray patterns.

Technical Specifications

• Nominal Flow Rate: .60 GPH
• Spray Angle: 80°
• Spray Pattern: PL – Hollow Cone
• Rated Pressure: 100 PSI
• Manufacturer: Monarch Mfg. Works
• Pack Quantity: 12 nozzles

PL Spray Pattern (Hollow Cone)

Monarch Hollow Cone “PL” Series nozzles cover a flow range of 2.25 to 50.00 USGPH and represent an extension of the NS type spray pattern to larger capacity sizes. While atomization is not as fine as the PLP series, the PL series delivers dependable hollow cone performance and produces the best results in equipment specifically designed for hollow cone nozzles. This spray characteristic supports stable combustion and proper flame development in compatible burner designs.

Applications

• Oil‑fired burners specifying hollow cone spray patterns

• Boilers and furnaces operating at moderate firing rates

• Equipment designed around NS‑style hollow cone combustion characteristics

• Service replacement where Monarch PL spray pattern and 80° spray angle are specified

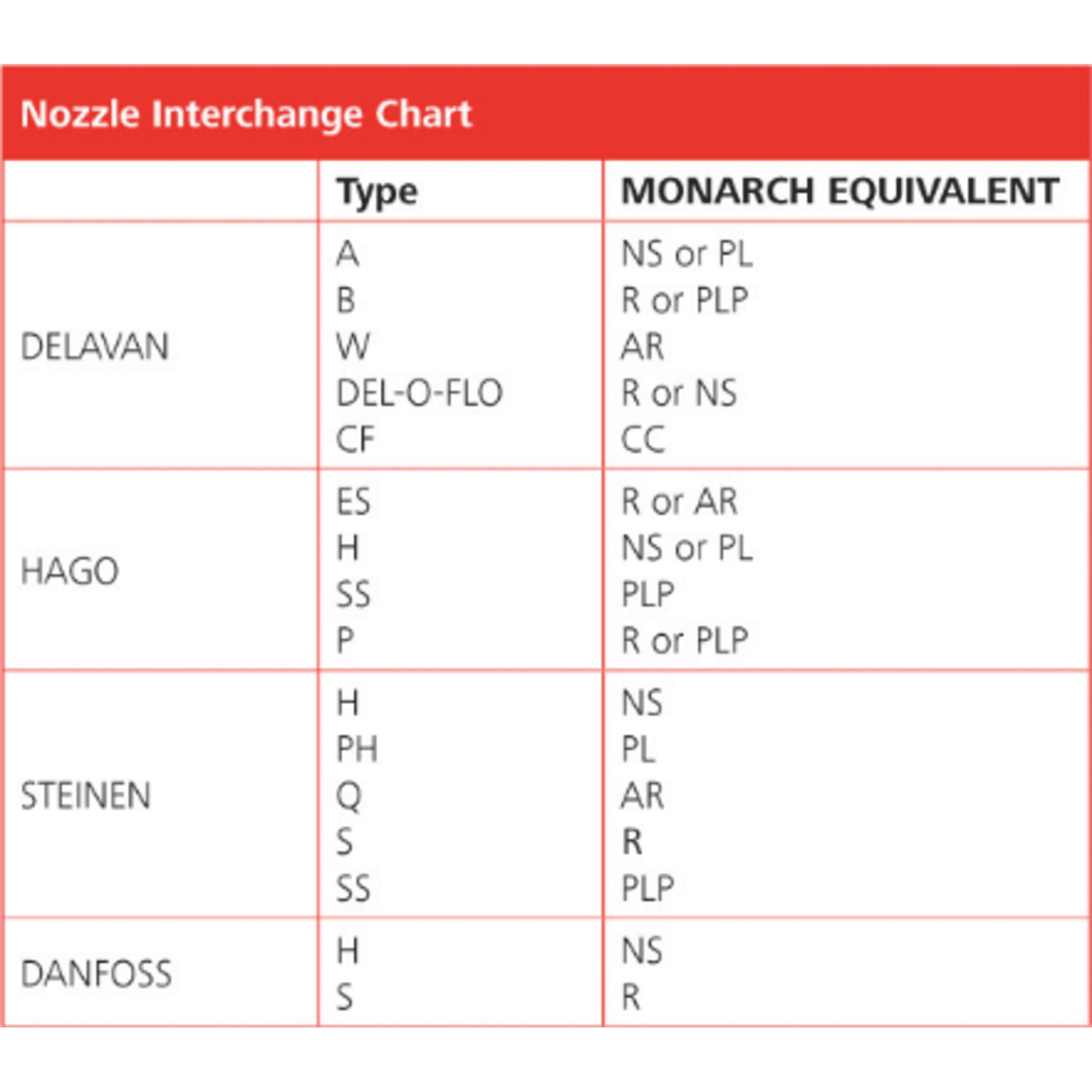

• Cross Reference: for Delavan, Hago, Steinen and Danfoss see Chart
