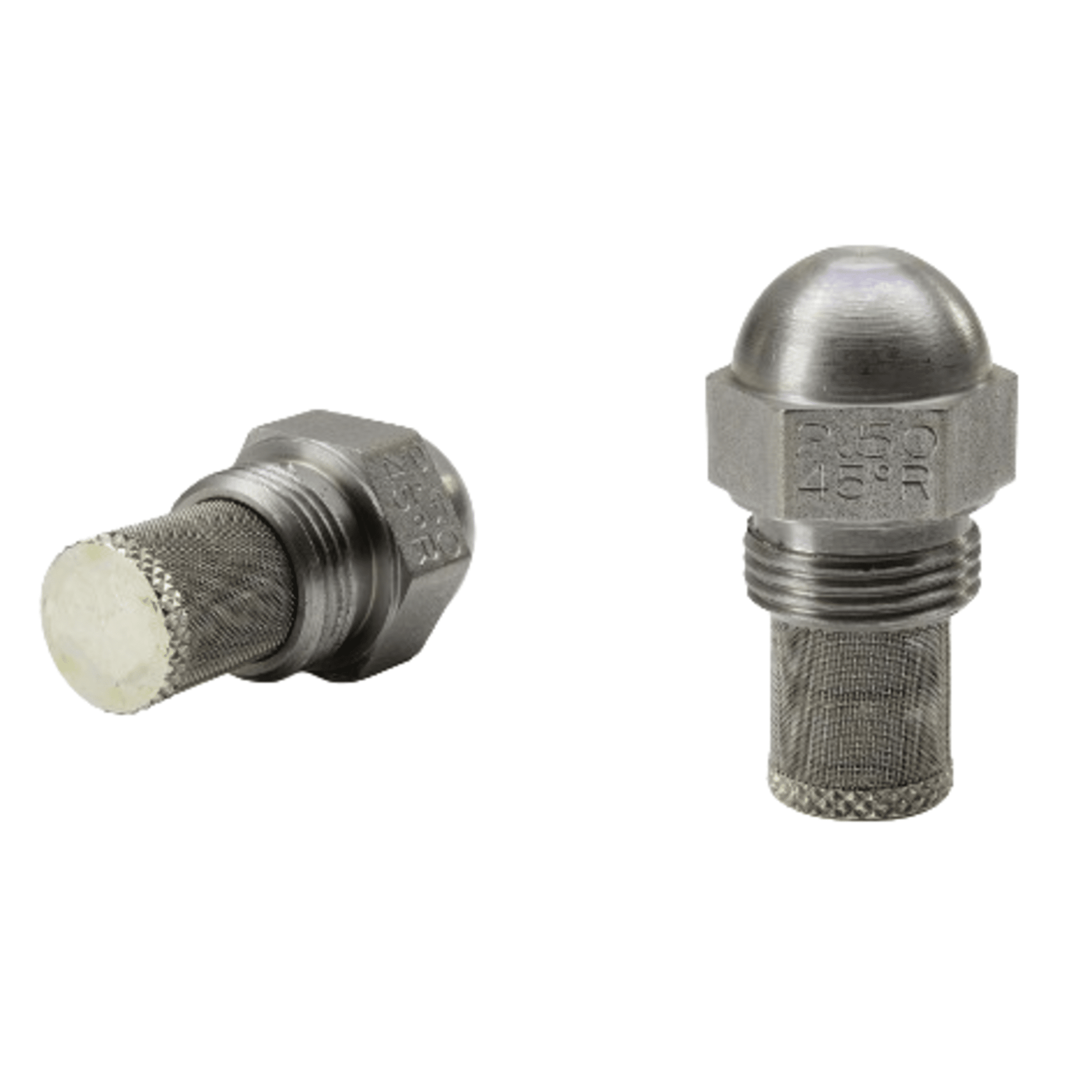

6.5045PLP - Monarch - Oil Nozzle - 12 Pack

Here’s a detailed overview of the Monarch 6.50 45 PLP Oil Nozzle – 12 Pack:

🔧 Technical Specifications

• Model: 6.5045PLP
• Flow Rate: 6.50 GPH (Gallons Per Hour) at 100 PSI
• Spray Angle: 45°
• Spray Pattern: PLP Series – Semi-solid cone
• Atomization:
  • Fine atomization and “solid” spray pattern up to ~3.50 GPH
  • Gradually becomes more “hollow” at higher flow rates
• Viscosity Compatibility:
  • Standard: Oils up to 5 mm²/s (cSt)
  • Special versions: Up to 13 mm²/s (cSt)
• Filter Type:
  • Over 2.00 GPH: Screen mesh filter
  • 10.50 GPH and above: No filter
