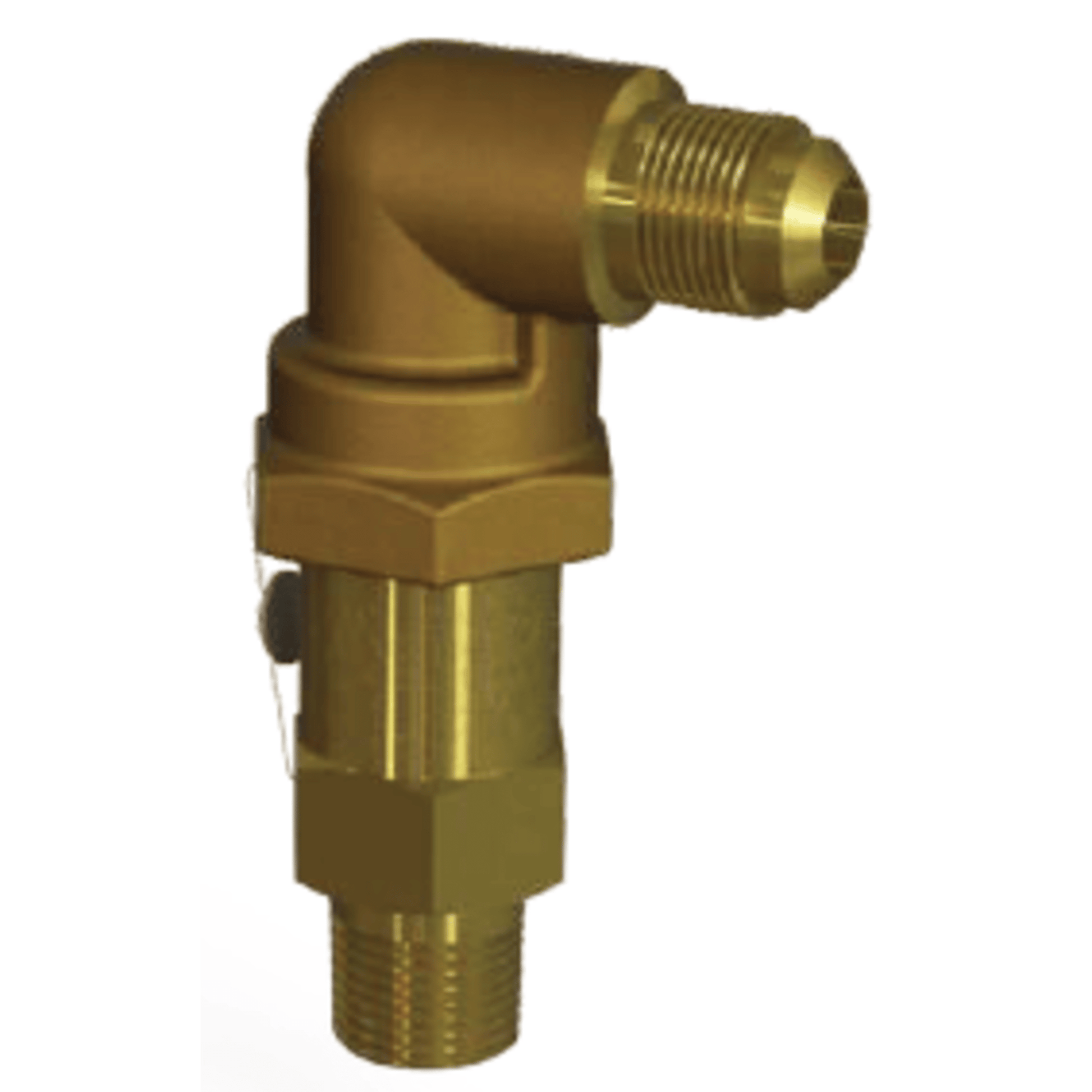

Relief Valve 1 NPTF-1 NPTF - 1000 - Brass Angle Type suitable for Transcritical CO2 - Henry

The Henry 5702B-1000 is a brass angle-type pressure relief valve with 1" NPTF-1" NPTF connections, specifically designed for transcritical CO₂ applications. It is part of the 5702B series from Henry Technologies, which is engineered to handle the high pressures typical of CO₂ refrigeration systems.

Key Specifications:

• Model: 5702B-1000
• Connection Size: 1" NPTF (inlet and outlet)
• Material: Brass
• Valve Type: Angle
• Application: Suitable for transcritical CO₂ systems
• Pressure Rating: Typically up to 130 bar
• Design: Factory set and sealed, with dry-seal tapered pipe threads
