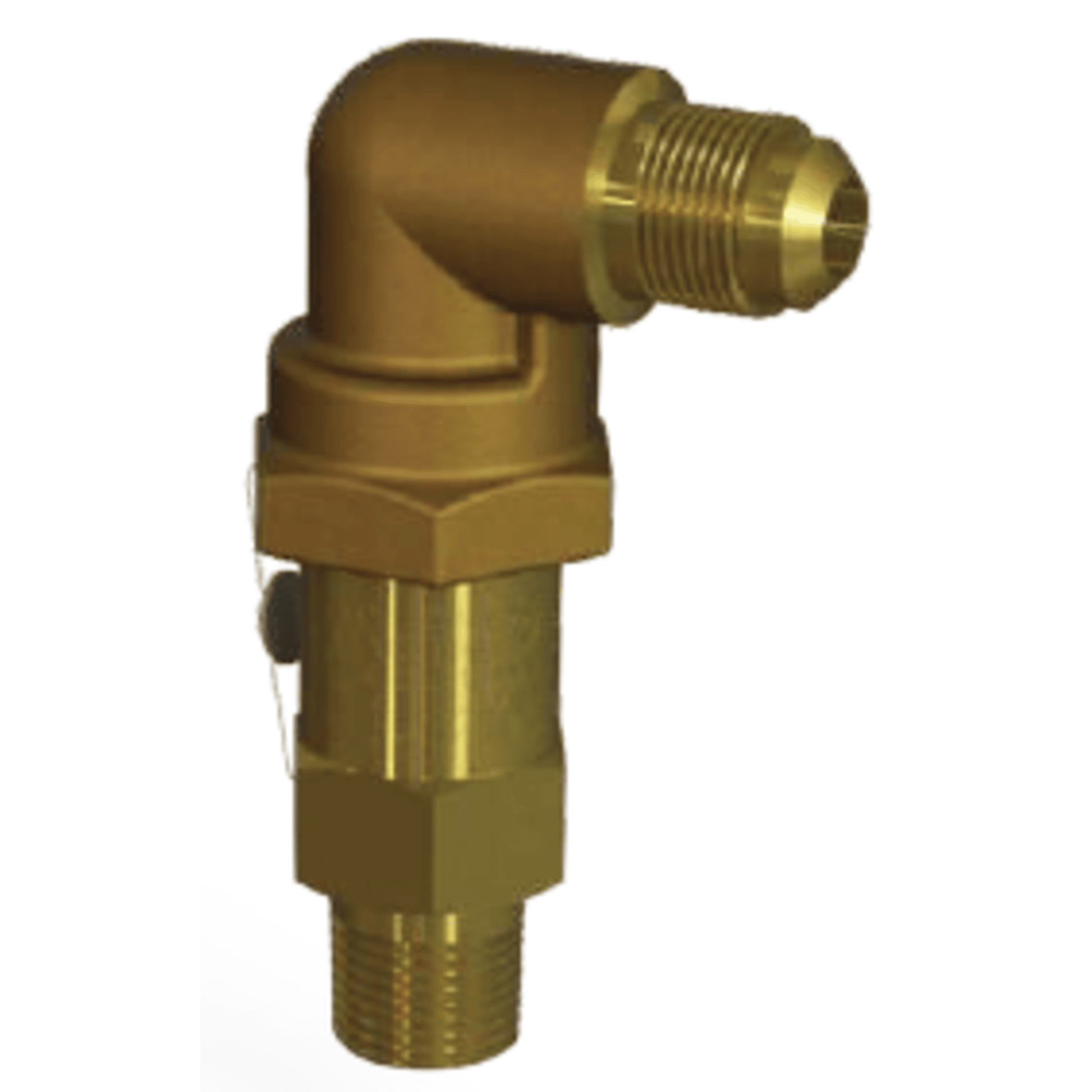

Relief Valve 3/4 NPTF-1 NPTF - 870 - Brass Angle Type suitable for Transcritical CO2 - Henry

The Henry 5702A-870 is a brass angle-type pressure relief valve with 3/4" NPTF inlet and 1" NPTF outlet connections, specifically designed for transcritical COâ‚‚ applications. It is part of the 5702A series from Henry Technologies, which is engineered to handle the high pressures found in COâ‚‚ refrigeration systems.

Key Specifications:

• Model: 5702A-870
• Inlet/Outlet: 3/4" NPTF (inlet) × 1" NPTF (outlet)
• Material: Brass
• Valve Type: Angle
• Application: Suitable for transcritical COâ‚‚ systems
• Pressure Setting: 870 psi (approx. 60 bar)
• Design: Factory set and sealed
• Certifications: Typically includes ASME-UV and National Board certifications
• Use Case: Designed to discharge refrigerant vapor (not liquid) in high-pressure COâ‚‚ systems
