Henry - Relief Valve, Brass Angle, 1/2" NPTF inlet x 1" NPTF outlet, 670PSIG - 5702-670
Original price
$1,285.96
-
Original price
$1,285.96
Original price
$1,285.96
$1,285.96
-
$1,285.96
Current price
$1,285.96
SKU HEN-5702-670
Availability:
We will Check on Delivery Time and Advise

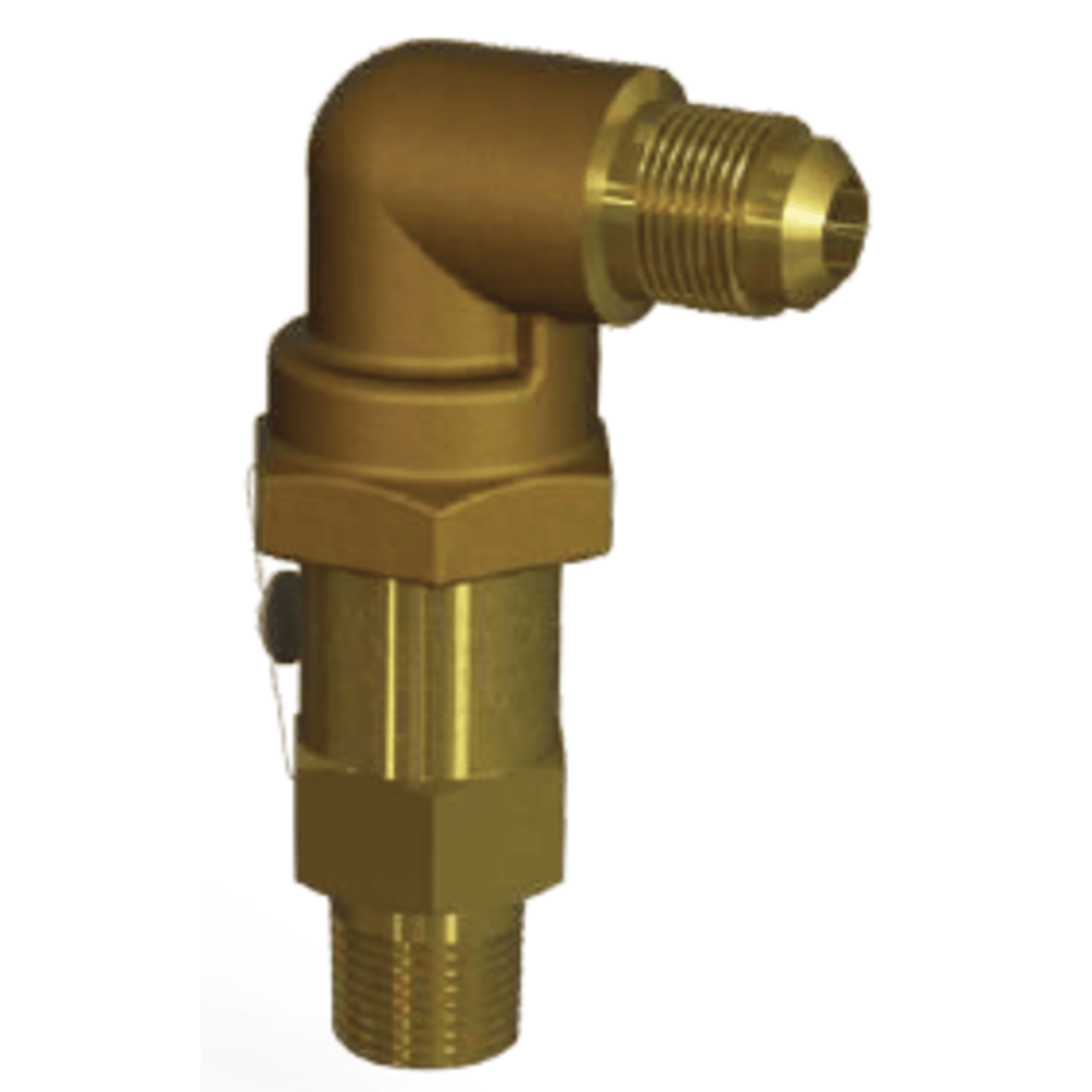

Henry 5702-670 Relief Valve, Brass Angle, 1/2" NPTF inlet x 1" NPTF outlet, 670PSIG.
Protect system components such as receivers, heat exchangers and vessels from dangerous overpressure.
Features
- Maximum pressure setting of 130 Barg
- Set pressure tolerance = +/-3%
- Maximum overpressure = 10%
- Proven safe design
- Precision machined parts for maximum reliability
- Compact design
- Blow-Out proof seal design
- Tamper proof
- In accordance with EN ISO 4126-1, the 5701AX valve reseats within 15% of set pressure following a discharge
- TFM second generation PTFE seal
Product Details
- Part Number: 5702-670
- Brand: Henry Technologies
- Series: PRV: High Pressure Range
- Category: Safety Devices › Pressure Relief Valves
- Suitable For: Conventional Refrigerants, Transcritical CO2
- Max Working Pressure: 130 Barg (1885 PSIg)
- Operating Temperature Range: -40°C to +150°C (-40°F to +302°F)
- Refrigerant Compatibility: CO2, HCFC, HFC, HFO and R290 where materially compatible
- Sizes Available: 3/8" to 1 1/4"
- Product Certification: ASME-UV, CE, EN ISO 4126-1 (5701AX only) and UKCA
