Relief Valve 1/2 NPTF-3/4 NPTF - 1160 - Brass Angle Type suitable for Transcritical CO2 - Henry

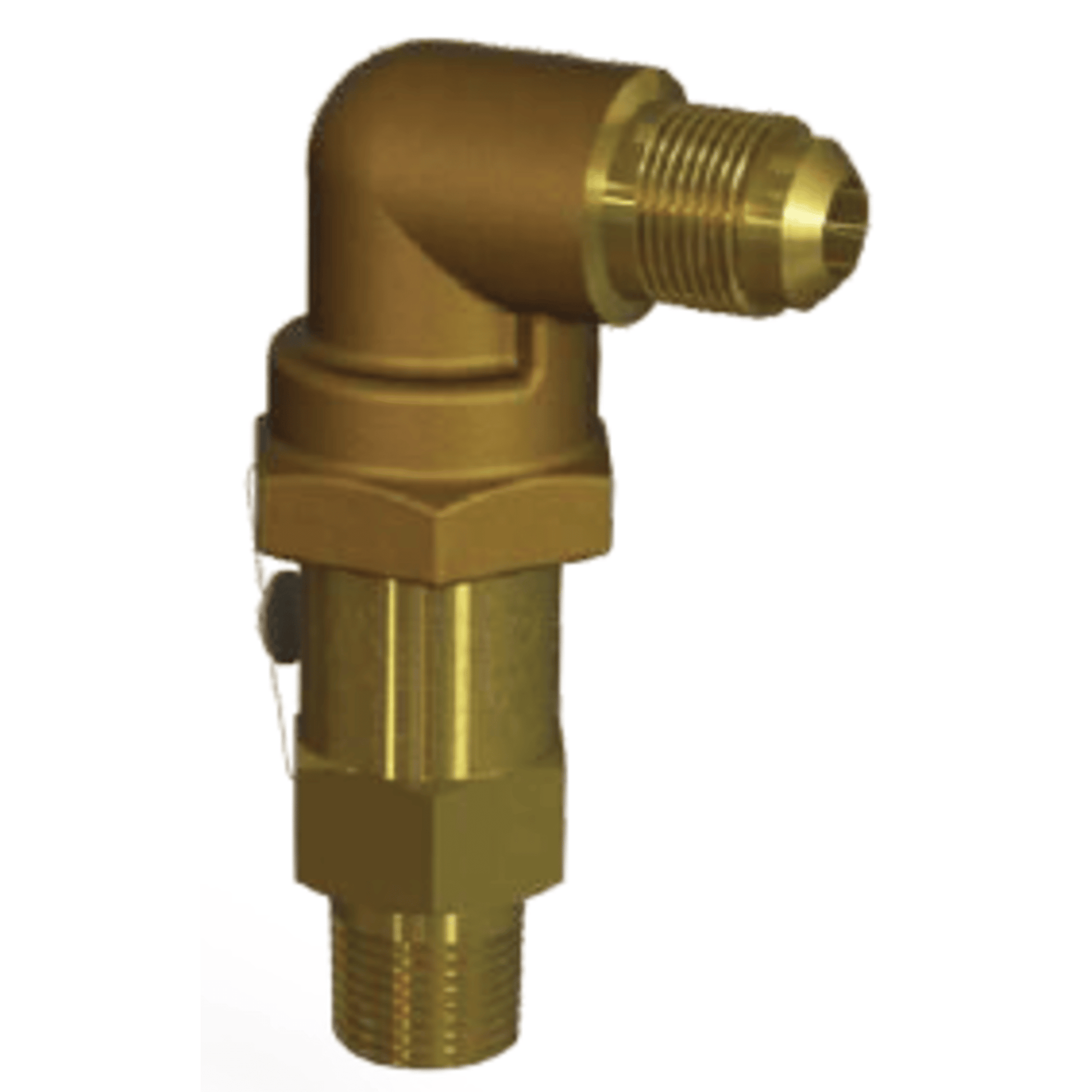

The Henry 5701AX-1160 is a high-pressure brass angle-type pressure relief valve designed for transcritical COâ‚‚ (R744) systems, which operate under extreme pressure conditions. It is part of the 5701AX series, engineered for safety and performance in high-pressure refrigeration environments.

🔧 Key Specifications

• Part Number: 5701AX-1160
• Material: Brass
• Inlet Connection: 1/2" NPTF
• Outlet Connection: 3/4" NPTF
• Flow Area: 39.59 mm²
• Weight: 0.82 kg
• Design: Angle type
• Pressure Setting: 1160 psi (approx. 80 bar)
• Operating Temperature Range: -40°C to +120°C
• Seal Material: Fluoroelastomer soft seat
• Certifications: CE Cat IV, EN ISO 4126-1, ASME-UV, UKCA

✅ Features

• Designed for transcritical COâ‚‚ applications with pressure settings from 46 to 130 bar
• High flow capacity for rapid and effective pressure relief
• Tamper-proof and blow-out proof design
• Reseats within 15% of set pressure after discharge
• Compatible with COâ‚‚, HFC, HCFC, HFO, and R290 refrigerants (where material compatibility allows)
