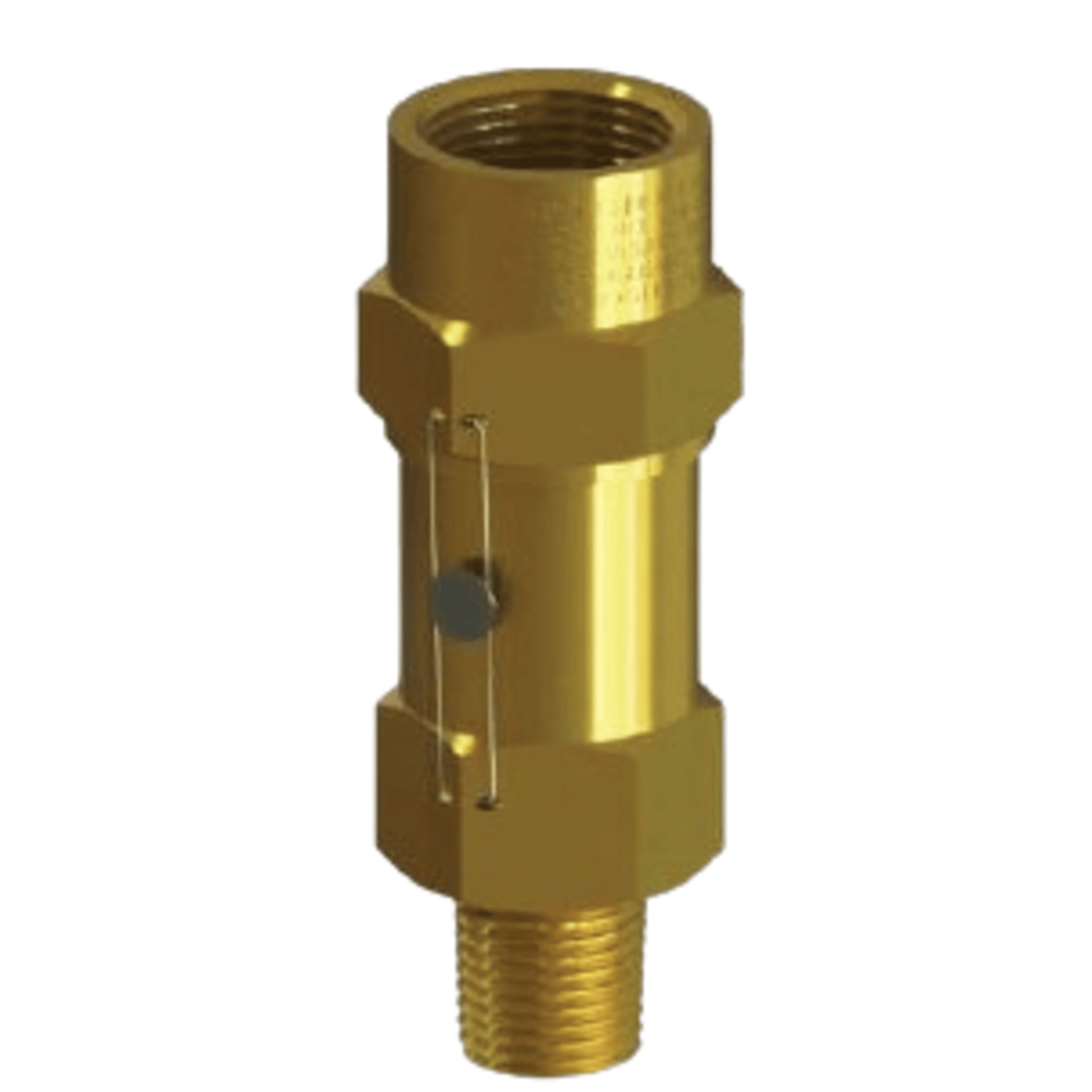

5245-350 - Henry - Relief 1 MPT-1-1/4 FPT - 350 - Brass Straight-Thru Type

The Henry 5245-350 is a brass straight-thru type pressure relief valve designed for use in refrigeration systems to prevent overpressure conditions. It is part of the 5245 series, which is known for its reliability and compatibility with a wide range of refrigerants.

🔧 Key Specifications

• Part Number: 5245-350 (also listed as 5245-1-350)
• Valve Type: Straight-Thru Relief Valve
• Material: Brass
• Inlet Connection: 1" MPT (Male Pipe Thread)
• Outlet Connection: 1-1/4" FPT (Female Pipe Thread)
• Pressure Setting: 350 psi
• Seat Material: Teflon®
• Internal Components: Brass and carbon steel
• Design Standard: ASME Section VIII, Division 1
• Certifications: National Board (NB) registered, CE, and compliant with ASHRAE 15

✅ Features

• Designed for vapor discharge only (not for liquid refrigerant)
• Tamper-proof and blow-out proof design
• Fully opens before 10% overpressure and reseats within 15% of set pressure
• Suitable for HFC, HCFC, and natural refrigerants
• Commonly used on liquid receivers, suction accumulators, and other pressure vessels
