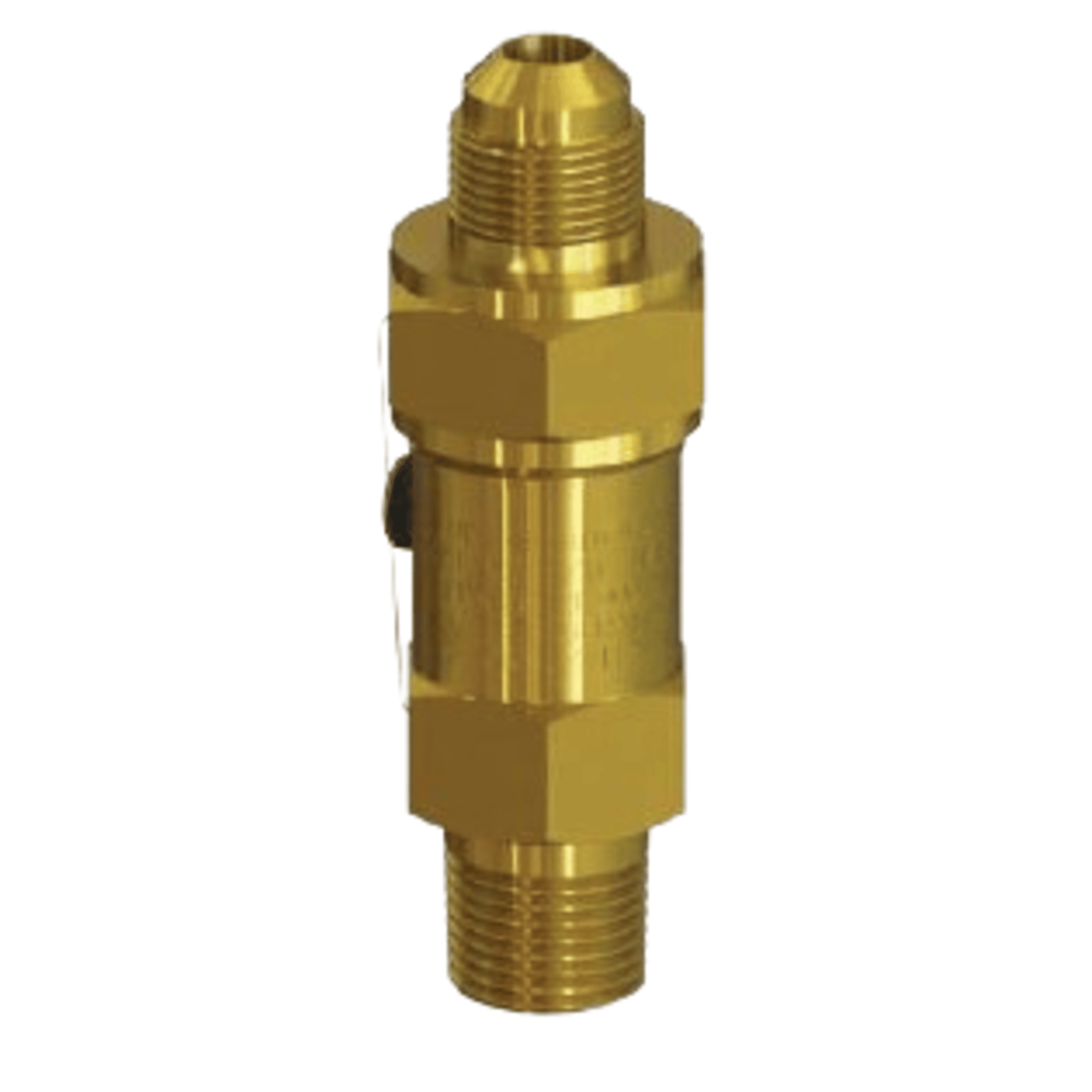

5231B-350 - Henry - Relief Valve 1/2 MPT-5/8 FL - 350 - Brass Straight-Thru Type

The Henry 5231B-350 Relief Valve is a brass straight-thru type pressure relief valve designed for high-capacity refrigeration and industrial systems. Here's a detailed product description based on available data:

Product Overview

• Model: 5231B-350
• Manufacturer: Henry Technologies
• Type: Straight-Thru Pressure Relief Valve
• Material: Brass
• Inlet Connection: 1/2" MPT (Male Pipe Thread)
• Outlet Connection: 5/8" FL (Flare)
• Pressure Setting: 350 psig (approx. 24.1 bar)

Key Features

• Factory Set and Sealed: Calibrated to open at 350 psig for reliable overpressure protection.
• ASME and National Board Certified: Complies with international safety standards
• Temperature Range: –40°C to +107°C (–40°F to +225°F)
• Flow Capacity: Rated at approximately 7.7 kg/h of air at set pressure
• Compatible Fluids: Suitable for HCFC and HFC refrigerants and other non-corrosive industrial fluids.
• Construction: Precision-machined brass body for durability and corrosion resistance.

This valve is part of the 5231B series, which features larger inlet and outlet sizes for higher flow capacity, making it ideal for demanding refrigeration and industrial applications.
