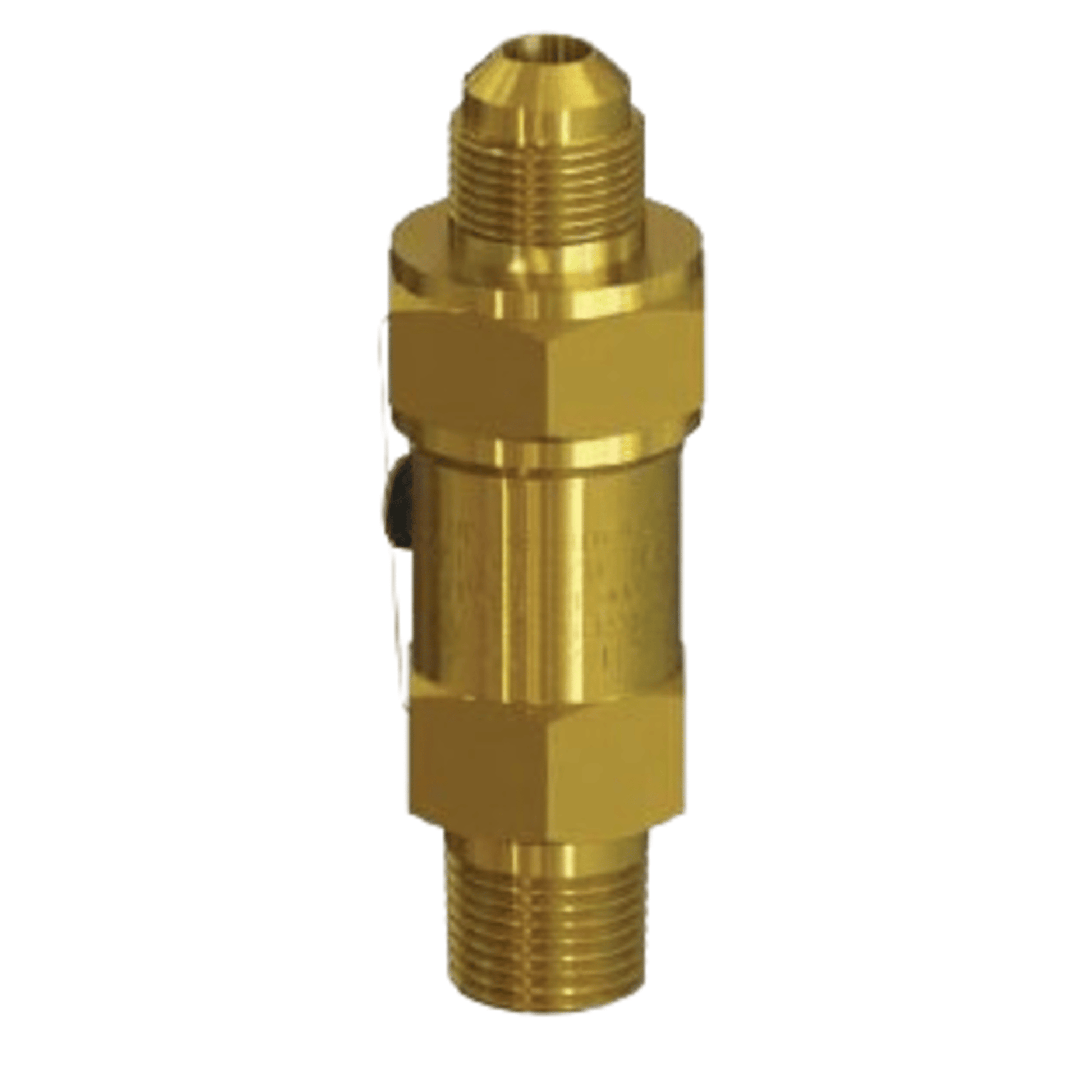

5231B-235 - Henry - Relief Valve 1/2 MPT-5/8 FL - 235 - Brass Straight-Thru Type

The Henry 5231B-235 Relief Valve is a brass straight-thru type pressure relief valve designed for use in refrigeration and industrial systems, particularly where higher flow capacity is needed. Here's a detailed description:

Product Overview

• Model: 5231B-235
• Manufacturer: Henry Technologies
• Type: Straight-Thru Pressure Relief Valve
• Material: Brass
• Inlet Connection: 1/2" MPT (Male Pipe Thread)
• Outlet Connection: 5/8" FL (Flare)
• Pressure Setting: 235 psig

Key Features

• Factory Set and Sealed: Ensures accurate and consistent pressure relief at 235 psig.
• ASME and National Board Certified: Complies with international safety standards.
• High Flow Capacity: Designed for larger systems requiring greater discharge rates.
• Temperature Range: –40°C to +107°C (–40°F to +225°F)
• Flow Capacity: Rated at 7.7 kg/h of air at set pressure
• Compatible Fluids: Suitable for HCFC and HFC refrigerants.
• Construction: Precision-machined brass body for durability and corrosion resistance.

This valve is part of the 5231B series, which features larger inlet and outlet sizes compared to the 5231A and AX series, making it ideal for more demanding refrigeration and industrial applications.
