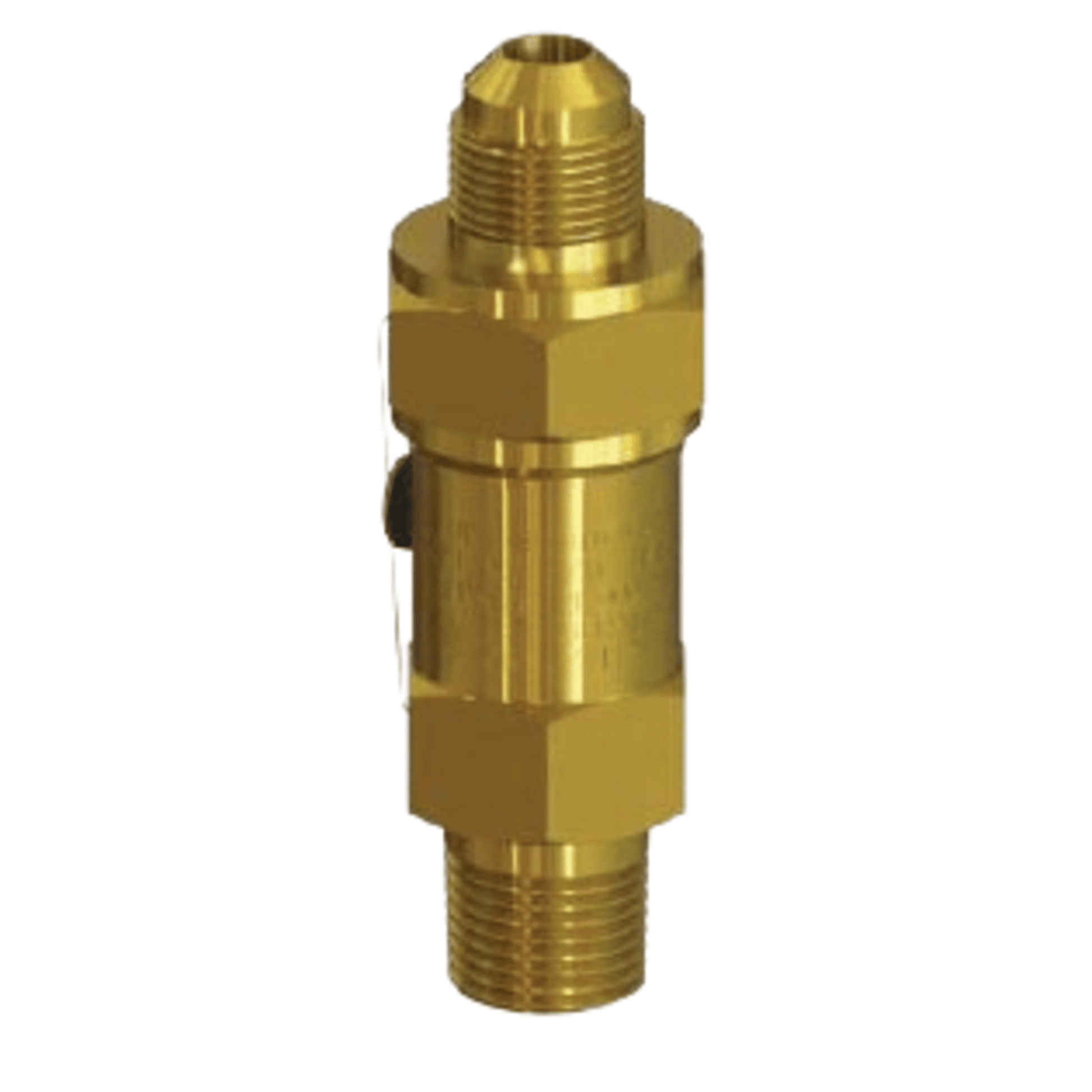

5231B-200 - Henry - Relief Valve 1/2 MPT-5/8 FL - 200 - Brass Straight-Thru Type

The Henry 5231B-200 Relief Valve is a brass straight-thru type pressure relief valve designed for use in refrigeration and industrial systems. Here's a detailed product description:

Product Overview

• Model: 5231B-200
• Manufacturer: Henry Technologies
• Type: Straight-Thru Pressure Relief Valve
• Material: Brass
• Inlet Connection: 1/2" MPT (Male Pipe Thread)
• Outlet Connection: 5/8" FL (Flare)
• Pressure Setting: 200 psig (approximately 13.8 bar)

Key Features

• Factory Set and Sealed: Ensures consistent and accurate pressure relief at 200 psig.
• ASME and National Board Certified: Complies with international safety standards.
• Temperature Range: –40°C to +107°C (–40°F to +225°F)
• Flow Capacity: Rated at 7.7 kg/h of air at set pressure
• Compatible Fluids: Suitable for HCFC and HFC refrigerants.
• Construction: Precision-machined brass body for durability and corrosion resistance.

This valve is part of the 5231B series, which features larger inlet and outlet sizes for higher flow capacity, making it ideal for larger refrigeration systems or industrial applications.
