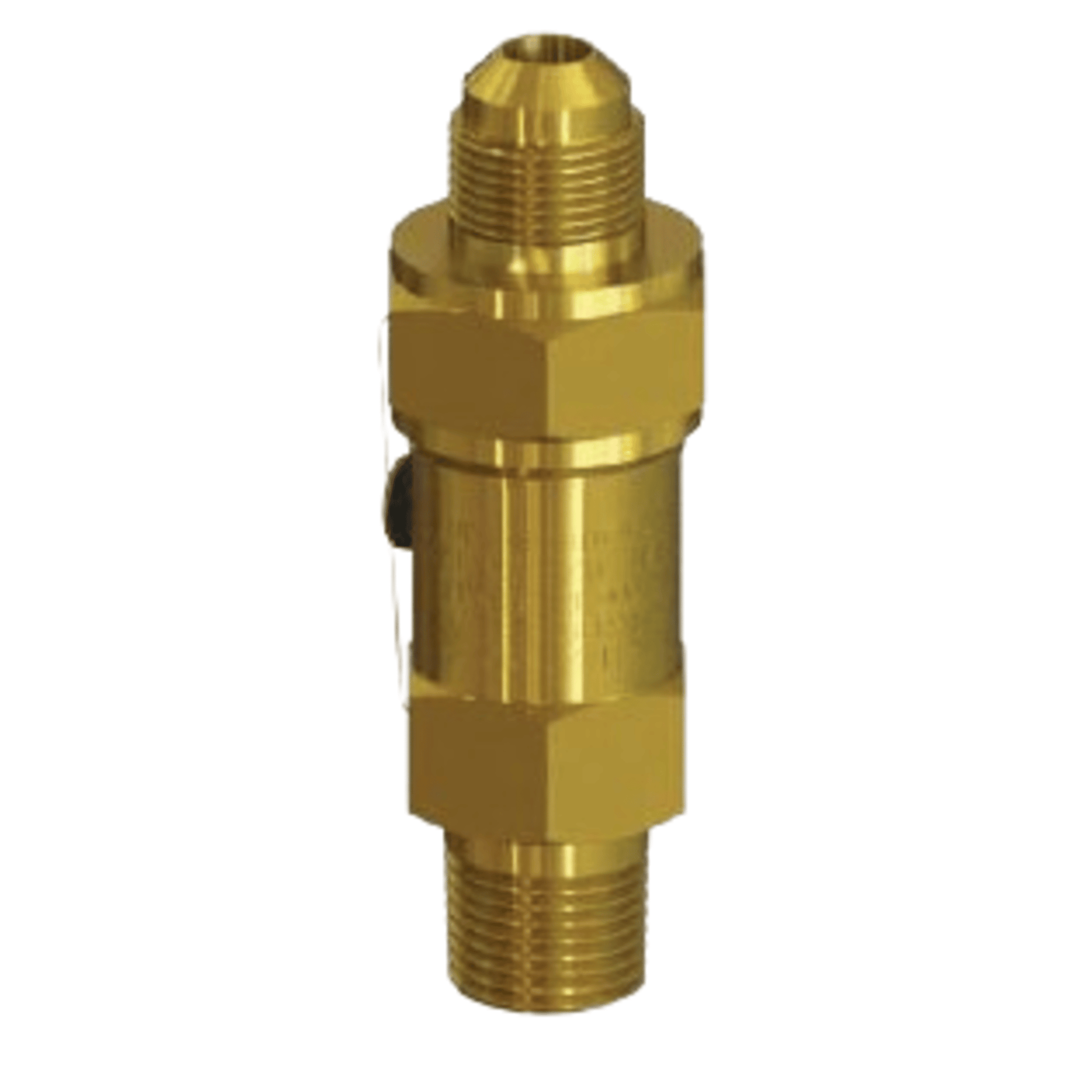

5231AX-150 - Henry - Relief Valve 3/8 MPT-1/2 FL - 150 - Brass Straight-Thru Type

The Henry 5231AX-150 Relief Valve is a brass straight-thru type pressure relief valve designed for use in refrigeration and industrial systems. Here's a detailed description:

Product Overview

• Model: 5231AX-150
• Manufacturer: Henry Technologies
• Type: Straight-Thru Pressure Relief Valve
• Material: Brass
• Inlet Connection: 3/8" MPT (Male Pipe Thread)
• Outlet Connection: 1/2" FL (Flare)
• Pressure Setting: 150 psig

Key Features

• Factory Set and Sealed: Ensures consistent and accurate pressure relief at 150 psig.
• ASME and National Board Certified: Complies with industry safety standards
• Center Loading Pivot Design: Improves reseating accuracy and minimizes leakage.
• Temperature Range: –20°F to +160°F
• Compatible Fluids: Suitable for refrigerants such as R22, R134a, R404a, R410a, R500, R502, and other non-corrosive industrial fluids.
• Construction: Precision-machined brass body for durability and long service life.

This valve is part of the 5231AX series, which features a larger 1/2" flare outlet for higher flow capacity compared to the standard 3/8" FL models
