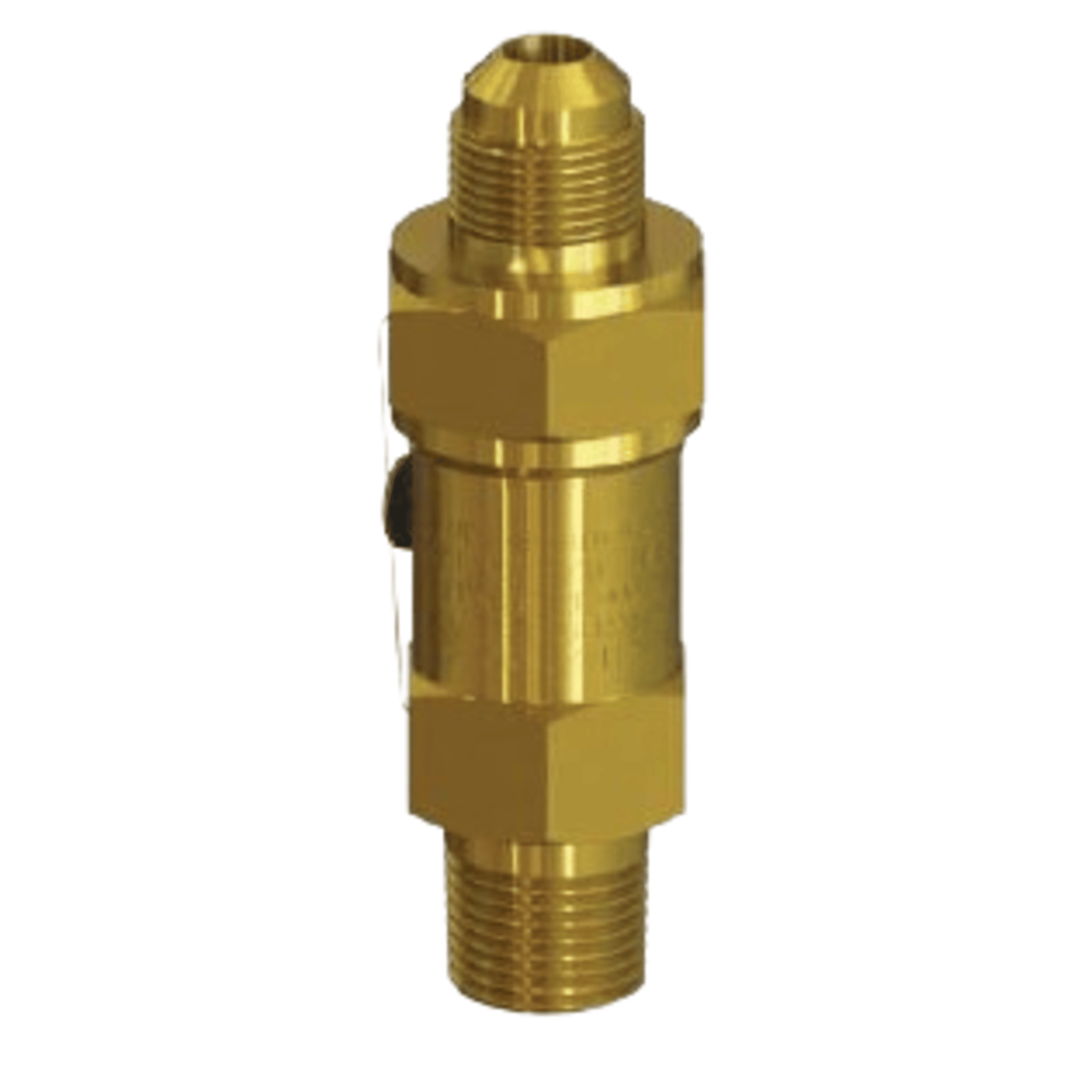

5231A-450 - Henry - Relief Valve 3/8 MPT-3/8 FL - 450 - Brass Straight-Thru Type

The Henry 5231A-450 Relief Valve is a brass straight-thru type pressure relief valve designed for high-pressure refrigeration and industrial applications. Here's a detailed description:

Product Overview

• Model: 5231A-450
• Manufacturer: Henry Technologies
• Series: 5231A
• Type: Straight-Thru Pressure Relief Valve
• Material: Brass
• Inlet Connection: 3/8" MPT (Male Pipe Thread)
• Outlet Connection: 3/8" FL (Flare)
• Pressure Setting: 450 psig

Key Features

• Factory Set and Sealed: Ensures precise and consistent pressure relief at 450 psig.
• ASME and National Board Certified: Meets industry safety standards.
• Center Loading Pivot Design: Enhances reseating accuracy and minimizes leakage.
• Temperature Range: –20°F to +160°F
• Compatible Fluids: Suitable for refrigerants such as R22, R134a, R404a, R410a, R500, R502, and other non-corrosive industrial fluids.
• Construction: Precision-machined brass body for durability and long service life.

This valve is part of the Henry 5231 series, which features a larger 3/8" MPT inlet compared to the 5230 series, offering increased flow capacity for higher-demand systems
