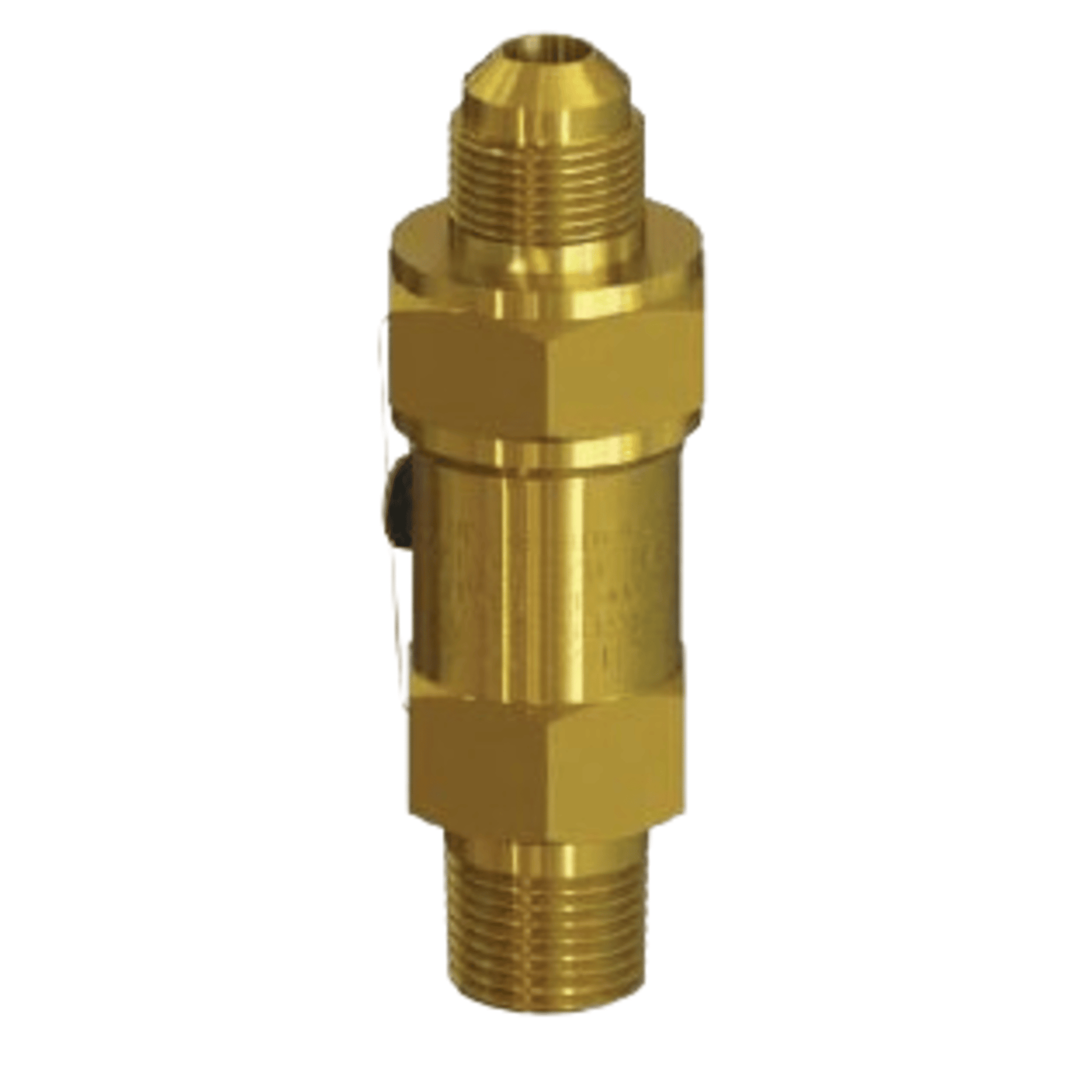

5231A-300 - Henry - Relief Valve 3/8 MPT-3/8 FL - 300 - Brass Straight-Thru Type

The Henry 5231A-300 Relief Valve is a brass straight-thru type pressure relief valve designed for use in refrigeration and industrial systems. Here's a detailed description:

Product Overview

• Model: 5231A-300
• Manufacturer: Henry Technologies
• Type: Straight-Thru Pressure Relief Valve
• Material: Brass
• Inlet Connection: 3/8" MPT (Male Pipe Thread)
• Outlet Connection: 3/8" FL (Flare)
• Pressure Setting: 300 psig

Key Features

• Factory Set and Sealed: Ensures consistent and reliable pressure relief at the designated setting.
• ASME and National Board Certified: Marked with the ASME UV symbol and NB number for compliance with safety standards
• Center Loading Pivot Design: Enhances reseating accuracy, minimizing leakage.
• Temperature Range: –20°F to +160°F
• Compatible Fluids: Suitable for refrigerants such as R22, R134a, R404a, R410a, R500, R502, and other non-corrosive industrial fluids

• Construction: Precision-machined brass body for durability and long service life.
