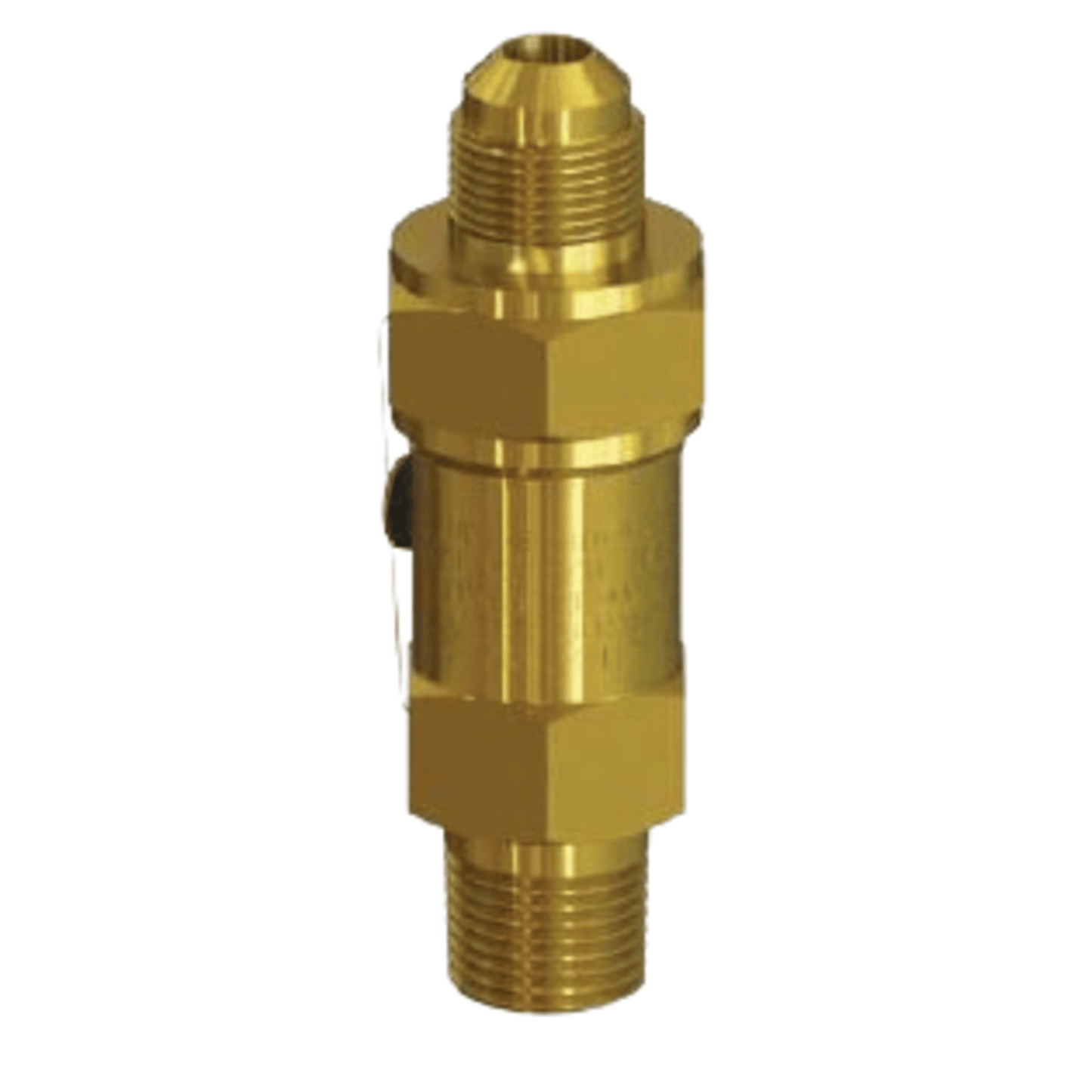

5231A-200 - Henry - Relief Valve 3/8 MPT-3/8 FL - 200 - Brass Straight-Thru Type

The Henry 5231A-200 Relief Valve is a brass straight-thru type pressure relief valve designed for use in refrigeration and industrial systems. Here's a detailed description:

Product Overview

• Model: 5231A-200
• Manufacturer: Henry Technologies
• Type: Straight-Thru Pressure Relief Valve
• Material: Brass
• Inlet Connection: 3/8" MPT (Male Pipe Thread)
• Outlet Connection: 3/8" FL (Flare)
• Pressure Setting: 200 psig

Key Features

• Factory Set and Sealed: Ensures precise and reliable pressure relief at the designated setting.
• ASME and National Board Certified: Marked with the ASME UV symbol and NB number for compliance with safety standards.
• Center Loading Pivot Design: Improves reseating accuracy, minimizing the risk of leakage.
• Temperature Range: –20°F to +160°F
• Compatible Fluids: Suitable for a wide range of refrigerants including R22, R134a, R404a, R410a, R500, R502, and other non-corrosive industrial fluids.
• Construction: Durable brass body for long service life and corrosion resistance.

This valve is part of Henry’s 5231 series, which is similar to the 5230 series but with a larger inlet size (3/8" MPT vs. 1/4" MPT), offering higher flow capacity.
