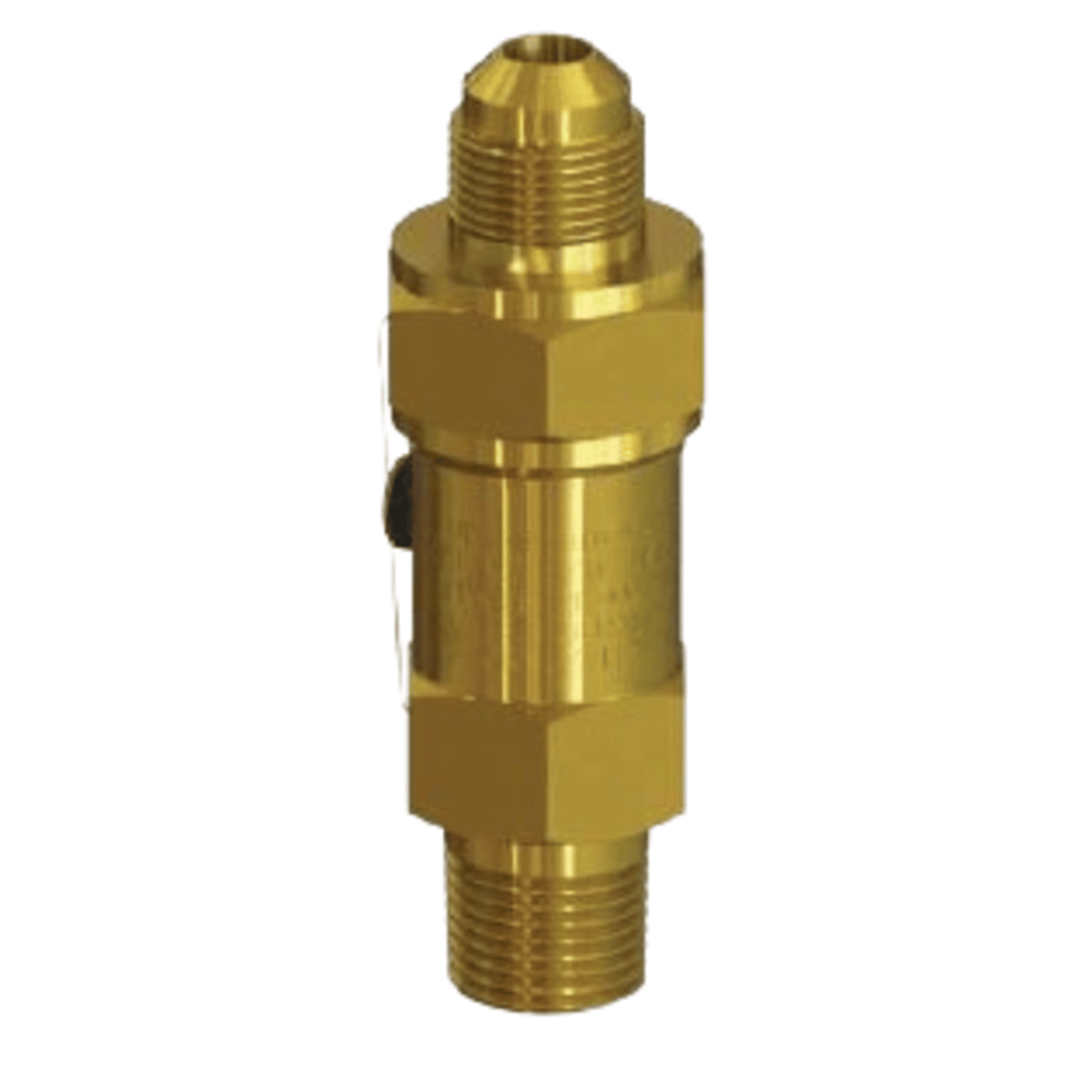

5230A-350 - Henry - Relief Valve 1/4 MPT-3/8 FL - 350 - Brass Straight-Thru Type

The Henry 5230A-350 Relief Valve is a brass straight-thru type pressure relief valve designed for use in refrigeration and industrial fluid systems. Here's a detailed description:

Product Overview

• Model: 5230A-350
• Manufacturer: Henry Technologies
• Type: Straight-Thru Pressure Relief Valve
• Material: Brass
• Inlet Connection: 1/4" MPT (Male Pipe Thread)
• Outlet Connection: 3/8" FL (Flare)
• Pressure Setting: 350 psig

Key Features

• Factory Set and Sealed: Ensures consistent operation at the designated pressure setting.
• ASME and National Board Certified: Marked with the ASME UV symbol and NB number for compliance with safety standards


• Center Loading Pivot Design: Enhances reseating accuracy, reducing the risk of leakage.
• Temperature Range: –20°F to +160°F
• Compatible Fluids: Suitable for refrigerants such as R22, R134a, R404a, R410a, R500, R502, and other non-corrosive industrial fluids


• Construction: Precision-machined brass body for durability and reliability.

This valve is part of Henry’s 52-series, known for its robust design and reliability in protecting systems from overpressure.
