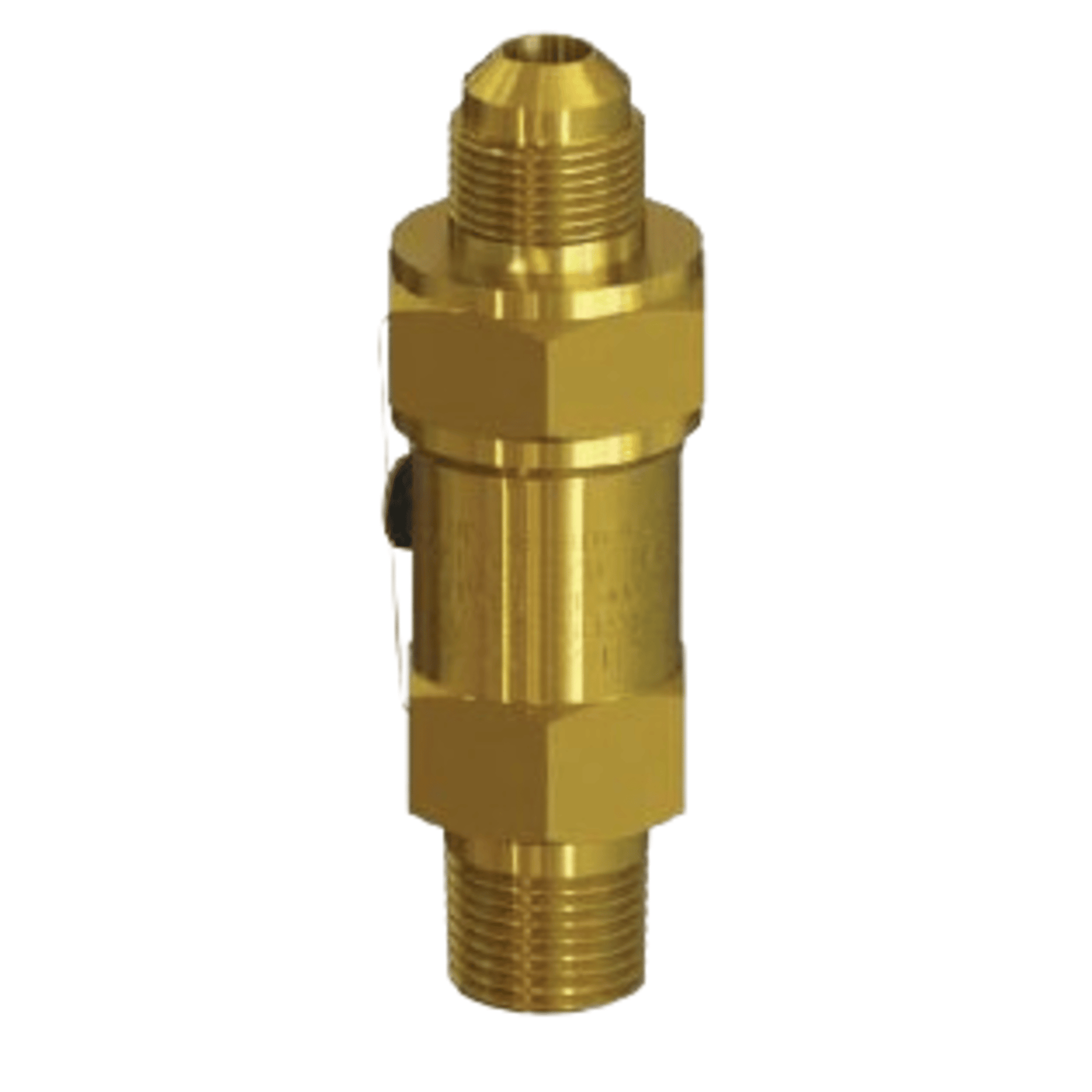

5230A-235 - Henry - Relief Valve 1/4 MPT-3/8 FL - 235 - Brass Straight-Thru Type

The Henry 5230A-235 Relief Valve is a brass straight-thru type pressure relief valve designed for use in refrigeration and industrial fluid systems. Here's a detailed description of the product:

Product Overview

• Model: 5230A-235
• Manufacturer: Henry Technologies
• Type: Straight-Thru Pressure Relief Valve
• Material: Brass
• Inlet Connection: 1/4" MPT (Male Pipe Thread)
• Outlet Connection: 3/8" FL (Flare)
• Pressure Setting: 235 psig
• Overall Length: Approximately 3.16 inches
• Weight: Around 0.38 lbs

Key Features

• Factory Set and Sealed: Ensures consistent operation at the designated pressure setting.
• ASME and National Board Certified: Stamped with the ASME UV symbol and NB number, indicating compliance with safety standards.
• Center Loading Pivot Design: Enhances reseating accuracy, reducing the risk of leakage.
• Temperature Range: Operates effectively between –20°F to +160°F.
• Compatible Fluids: Suitable for refrigerants like R22, R134a, R404a, R410a, R500, R502, and other non-corrosive industrial fluids
