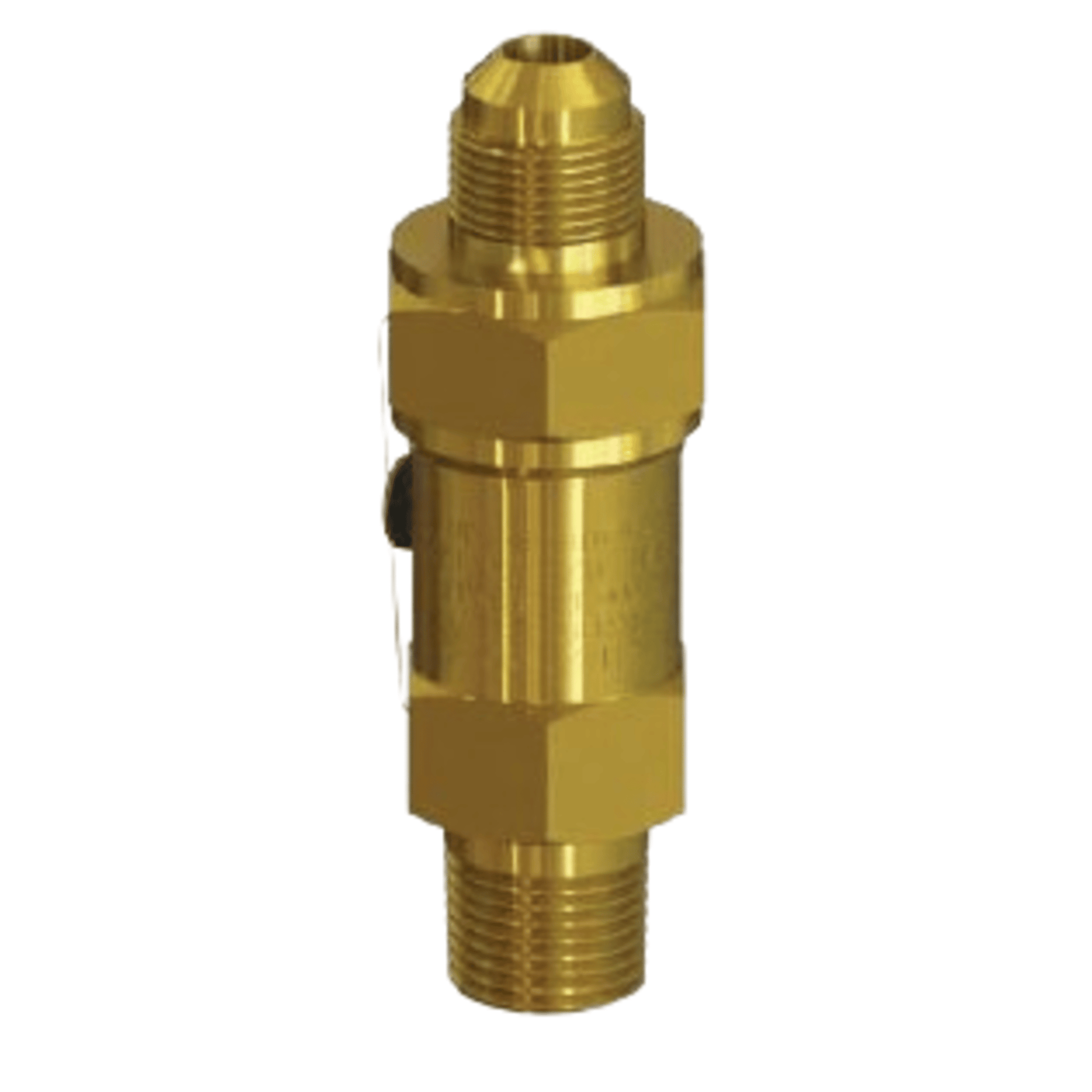

5230A-200 - Henry - 1/4 MPT-3/8 FL - 200 - Brass Straight-Thru Type

The Henry 5230A-200 is a brass straight-thru pressure relief valve designed for use in refrigeration systems to protect against overpressure. Here's a concise summary of its key specifications:

🔧 Technical Specifications

• Model: 5230A-200
• Valve Type: Straight-Thru Relief Valve
• Inlet: 1/4" MPT (Male Pipe Thread)
• Outlet: 3/8" FL (Flare)
• Material: Brass
• Pressure Setting: 200 PSIG (factory set and sealed)
• Temperature Range: -20°F to +160°F (-29°C to +71°C)
• Certifications: ASME UV and NB certified

✅ Features

• Designed for use with refrigerants like:
  • R22, R134a, R404a, R410a, R500, R502
• Center Loading Pivot design for reliable reseating and minimal leakage
• Compact and durable for long-term use in refrigeration systems
