40442 - Crown - WAYNE SR SERIES SETTING GAUGE (1EA)

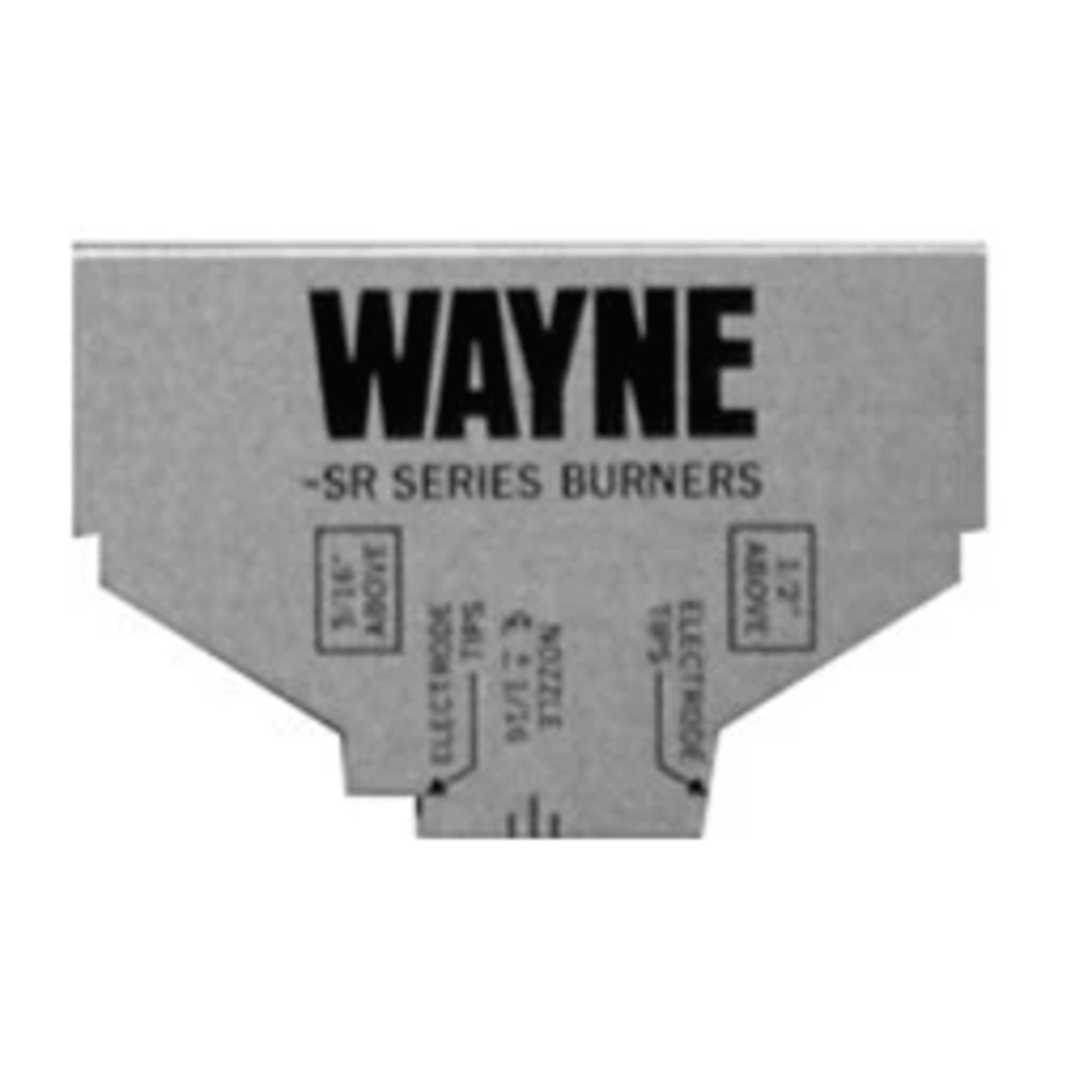

The 40442 - Crown WAYNE SR Series Setting Gauge is a specialized tool used for accurately setting up Wayne SR Series oil burners. Here's what it does and how it's used:

🔧 Product Overview

• Purpose: Ensures correct electrode positioning and nozzle alignment in Wayne SR Series burners.
• Compatibility: Specifically designed for Wayne SR Series burners, including models with straight or bent electrodes.

📏 Usage Instructions (based on Wayne Combustion documentation)

• For straight electrodes: Position the electrode ½" above the center of the nozzle.
• For bent electrodes: Flip the gauge and position the electrode 5/16" above the center of the nozzle.
• The gauge helps maintain proper flame stability and ignition performance by ensuring consistent setup.
