4.0060BPS - Monarch - Oil Nozzle

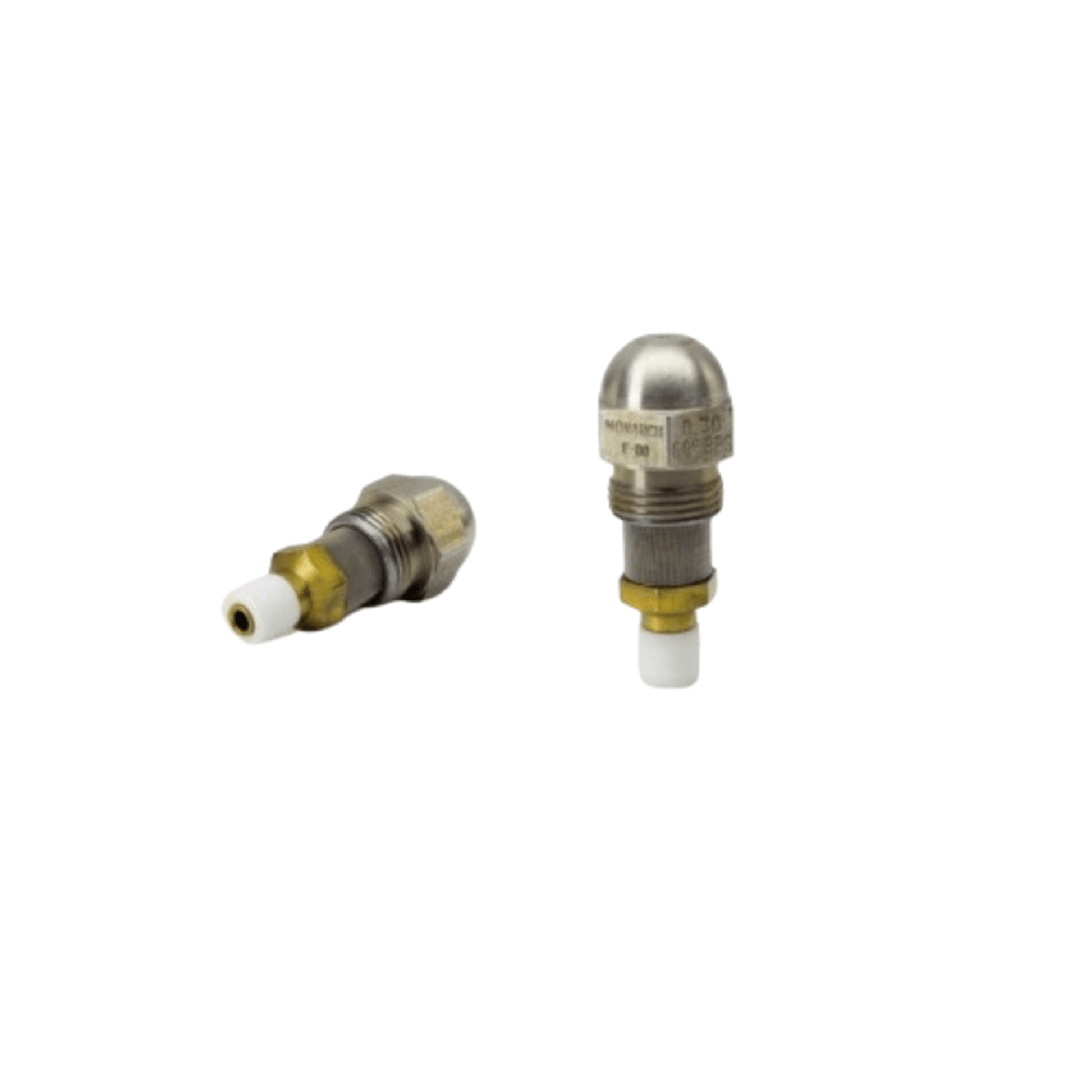

The Monarch 4.00 60 BPS Oil Nozzle is part of the BPS (By-Passing) series, designed for industrial oil burner systems that require adjustable flow rates and precise spray control.

Key Specifications:

• Model: 4.0060BPS
• Flow Rate: 4.00 GPH (US gallons per hour)
• Spray Angle: 60°
• Spray Pattern: Solid cone (widens by 5°–10° when by-pass is fully open)
• Material:
  • Tip & Disc: High-chrome stainless steel
  • Strainer Support: Brass
  • Strainer Screen: 120 mesh Monel
  • O-ring: Viton
• Operating Pressure: Rated at 100 psi on #2 fuel oil; can operate up to 250 psi
• Functionality: Flow rate is regulated by controlling the by-pass line pressure, allowing for variable orifice performance
